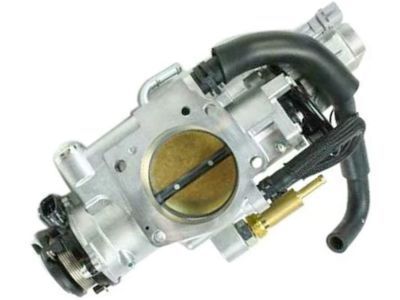

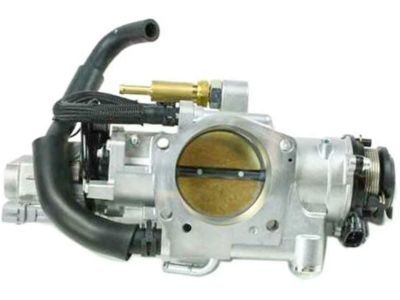

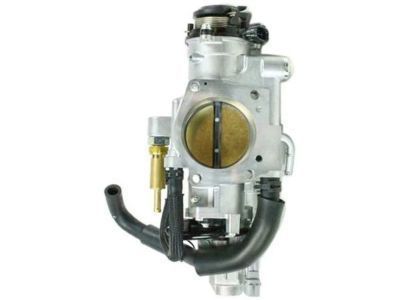

Toyota 22030-50142
Throttle Body

A formal service or repair of the throttle body starts with removing the V-bank cover while draining engine coolant and then removing the intake air connector. Service and repair operations on the throttle body start with disconnecting the accelerator cable before removing the throttle body through disconnecting the throttle position sensor connector and throttle control motor connector and accelerator pedal position sensor connector as well as unplugging the accelerator pedal position sensor wire from its clamps. To detach the throttle body from the intake manifold professionals need to disconnect the PCV hose and water bypass hose and remove the ventilation cap and unfasten its 2 bolts and 2 nuts. Install the new throttle body by starting with connecting the water bypass hose to the manifold thermostat followed by adding a new gasket then secure it with the 2 bolts and 2 nuts at 18 N.m (185 kgf.cm, 13 ft.lbf). Install the ventilation cap followed by attachment of the water bypass hose and PCV hose then restore the connections for throttle position sensor and throttle control motor and accelerator pedal position sensor together with the accelerator pedal position sensor wire to its clamps. The next step involves hooking the accelerator cable to the throttle body followed by reinstallation of the intake air connector then adding engine coolant before starting the engine to detect leaks before reinstalling the V-bank cover. Inspection of replacement duties should include checking the throttle position sensor and accelerator pedal position sensor for electrical shock then searching for foreign materials that may trigger gear locking. To install the throttle position sensor start by disconnecting its connector then eliminate the set screws and carefully position the new sensor at an opening angle of 5.5 degrees while aligning it 15 degrees to the right before screw tightening. The sensor adjustment requires use of a TOYOTA hand-held tester or OBD II scan tool yet is complete only when the throttle valve opening measures between 14.4 - 16% after confirmation. Before you begin the throttle control motor replacement task remove the throttle position sensor followed by disconnecting the throttle control motor connector while you unfasten the 6 screws to take off the motor cover and assembly. The equipment includes installing the new motor with its cover as well as the wave washer after you coat the gear teeth with grease then reattach the throttle control motor connector. You must remove the accelerator pedal position sensor before installation of a new one while positioning the throttle valve at around 4% opening angle before validating the ACCEL POS #1 (VPA) voltage with the tester for measurements from 0.35 - 0.85 V. Testing the system operation should be performed after completion of the throttle body installation.

The repair and servicing process of the throttle body requires users to remove the throttle body cover while draining engine coolant and disconnecting the intake air connector. The throttle body service requires disconnecting the accelerator cable from the throttle body first then removing the throttle body by cutting the connections of throttle position sensor connector, throttle control motor connector, accelerator pedal position sensor connector and accelerator pedal position sensor wire from their clamps. The task starts by disconnecting the PCV hose with the water bypass hose and then removing the ventilation cap while unfastening the two bolts and two nuts to detach the throttle body from the intake manifold. Finally, separate the water bypass hose from the manifold thermostat before removing the gasket. When installing the throttle position sensor maintain the sensor free of impact while inspecting it for all foreign objects. Connectors for the throttle position sensor must be cut before eliminating the two set screws to install the new sensor with a throttle valve orientation at 5.5 degrees. The sensor requires rotation to the right by 15 degrees before a slow counterclockwise adjustment to reach the throttle valve shaft. After temporary set screw tightening install the connector. Adjust the sensor position through a TOYOTA hand-held tester or OBDII scan tool until the throttle valve opens 14.4 - 16% and verify it remains within 10 - 14%. The 2 set screws must be painted before you turn off the ignition switch and remove the tester. To replace the throttle control motor start by disassembling the throttle position sensor followed by disconnecting the throttle control motor connector and then separating the throttle control motor cover, motor assembly with its washer. Mount a brand-new throttle control motor while placing the wave washer correctly and matching the pin holes before applying grease to the gear teeth. The process ends with placing back the throttle control motor cover and motor assembly followed by reconnecting the throttle control motor connector and reinstallation of the throttle position sensor. The new accelerator pedal position sensor installation begins with removing the sensor followed by sensor replacement after setting the throttle valve to an opening angle of about 4 degrees. Begin by rotating the sensor 20 degrees leftward before proceeding with clockwise motion to contact the throttle valve shaft while tightening the three set screws. Check the sensor voltage through the tester and verify it displays the normal range at 0.35 - 0.85 V. Position the water bypass hose to the manifold thermostat while using a new gasket and fasten the throttle body with 2 bolts and 2 nuts at 18 N.m (185 kgf.cm, 13 ft.lbf). After connecting all necessary components including water bypass hose and PCV hose as well as throttle position sensor connector and throttle control motor connector followed by accelerator pedal position sensor connector, secure the accelerator pedal position sensor wire to the clamps. The installation process requires connector of accelerator cable to throttle body followed by intake air connector installation before filling with engine coolant then checking for leaks by engine start followed by throttle body cover reinstallation.

Service and repair processes for the throttle body start with removing the throttle body cover and draining the engine coolant before disconnecting the intake air connector. Service the throttle body by unplugging the accelerator cable from the throttle body before disconnecting the throttle position sensor connector and throttle control motor connector as well as the accelerator pedal position sensor connector and accelerator pedal position sensor wire from their clamps. The detachment process begins by eliminating the ventilation cap along with PCV hose and water bypass hose. Then proceed to unfasten the 2 bolts and 2 nuts to remove the throttle body from the intake manifold. Installation of the new throttle body requires connecting the water bypass hose to the manifold thermostat while placing a fresh gasket followed by tightening the 2 bolts and 2 nuts at a torque level of 18 N.m (185 kgf.cm, 13 ft.lbf). You should begin by reattaching the ventilation cap and then connect the water bypass hose with the PCV hose together. Afterward, reconnect the throttle position sensor with the throttle control motor and accelerator pedal position sensor connectors. Make sure the accelerator pedal position sensor wire stays in place through the clamps. After connecting the accelerator cable to the throttle body you need to reinstall the intake air connector and then add engine coolant before starting the engine. Inspect for any potential leakage as the last step will be to replace the throttle body cover. When replacing the throttle position sensor remove its connector along with two set screws then insert a new sensor that needs placement at a throttle opening angle of about 5.5 degrees. Position the sensor 15 degrees rightward from the designated spot before setting its value at the center point of standard throttle opening (14.4 - 16%) while securing screws with 2.0 N.m torque. The standard throttle valve opening percentage (10 - 14%) should be checked for correct maintenance. Validate that this percentage falls within the specified range when fully closed. Paint the two set screws along with turning off the ignition system before removing testing equipment. To replace the throttle control motor start by taking off the throttle position sensor then disconnect the motor connector before loosening the six screws which lets you remove the motor cover and assembly with washer. A new throttle control motor should be installed by placing the wave washer correctly while matching the pin holes then fastening it with three screws threaded to 3.4 N.m (35 kgf.cm, 30 in.lbf). Using sufficient grease on the gear teeth followed by washer installation will allow you to properly position the motor cover against throttle body before securing it with 6 screws at matched torque levels. To finish the repair you need to recouple the throttle control motor connector followed by reinstallation of the throttle position sensor. To replace the accelerator pedal position sensor you need to eliminate its three set screws before installation while positioning the throttle valve at 4 degrees open at the end. Tighten the 3 set screws to achieve 5.4 N.m tension (55 kgf.cm, 48 in.lbf) after you rotate the sensor to the left by 20 degrees. Before completing installation the operator should use a TOYOTA hand-held tester or OBDII scan tool to inspect the accelerator pedal position sensor by connecting its connector and verifying the ACCEL POS #1 (VPA) voltage stays within 0.35 - 0.85 V normal range after installing the throttle body the system operation can be checked.

Ensure the wave washer is in place, align the pin holes, and apply grease to the gear teeth before reinstalling the motor cover and connecting the throttle control motor connector.

Remove the ventilation cap.

Remove the ventilation cap, unfasten the 2 bolts and 2 nuts, and disconnect the water bypass hose from the manifold thermostat, then remove the gasket.

Remove the two bolts and two nuts along with the throttle body and gasket.

Fill with engine coolant.

Remove the two bolts, two nuts, throttle body, and gasket.
