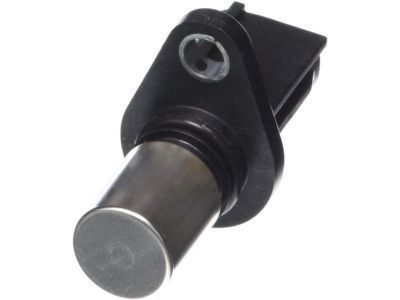

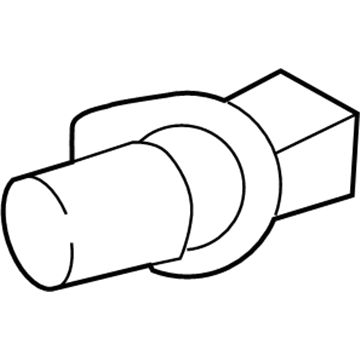

Toyota 90919-05024
Camshaft Position Sensor

The first step when servicing the Camshaft Position Sensor demands disconnecting the cable from the negative battery terminal for a minimum of 90 seconds to stop the activation of Air Bags and seat belt pretensioners. Begin by removing the air cleaner assembly then disconnect the engine wire through the removal of its two clamps. Disconnect the sensor connector followed by removing the bolt and sensor from its position. The new sensor installation requires bolt attachment with a proper torque of 8.0 N.m that ensures 82 kgf.cm and 71 in.lbf. The engine wire clamps should be reconnected first along with placement of the air cleaner assembly and cable connection to the negative battery terminal. The procedure ends by doing initializations since some systems need this step after reconnecting or disconnecting from the negative battery terminal.

One should remove the air cleaner assembly before substituting the Camshaft Position Sensor. After disconnecting the camshaft position sensor connector you can proceed to remove its bolt and sensor. Users should apply engine oil to the O-ring before installing the new sensor by placing it on the bolt with a torque setting of 8.0 N.m (82 kgf.cm, 71 in.lbf). After this reinstall along with replacing the air cleaner assembly.

Service of the Camshaft Position Sensor starts by removing the negative battery cable for at least 90 seconds to deactivate Air Bag and seat belt pretensioner systems. Begin by taking out the air cleaner assembly and you should disconnect the engine wire through the removal of two clamps. First disconnect the sensor connector after which you should remove the bolt and sensor. Install the new sensor with bolt while applying 8.0 N.m (82 kgf.cm, 71 in.lbf) torque to both and connect the sensor connector. Attach the two clamps of the engine wire then put back the air cleaner assembly before connecting the cable to the negative battery terminal.

The first step to service the Camshaft Position Sensor includes disconnecting the connector followed by bolt removal until you extract the sensor. Together with reinstallation both require an 8.0 Nm (82 kg.cm, 71 in.lb) torque setting. Reassembly follows the exact order of disassembly.

You need to begin the Camshaft Position Sensor removal from 1NZ-FXE engine control by removing the radiator support opening cover followed by both left and right engine under covers. First drain both the engine coolant along with the HV coolant from the system. After disconnecting the cable from the negative battery terminal maintenance professionals must wait at least 90 seconds to avoid Air Bag and seat belt pretensioner activation. The inverter with converter needs detachment from the vehicle before its removal. The camshaft position sensor retrieval consists of removing its bolt and disconnecting the sensor connector before removing the sensor.

Engine oil application on the O-ring of the sensor serves as a first step before installing the Camshaft Position Sensor for the 1NZ-FE engine control system. Utilize the bolt to mount the sensor before tightening the bolt to 8.0 Nm (82 kgf-cm, 71 in-lbf) configuration while keeping the O-ring from any twisting motion. After applying oil to the sensor O-ring you should connect the camshaft position sensor connector. You should use 5.4 Nm torque (55 kgf-cm, 48 in-lbf) to fasten the cable to the negative battery terminal. Check for any leakage from the engine oil as the last step.

Remove the air cleaner assembly.

Remove the bolt and the camshaft position sensor.

Installation follows the reverse order of removal.

First, disconnect the connector.

Install the sensor with the bolt and torque it to 8.0 N.m (82 kgf.cm, 71 in.lbf).

Remove the bolt and the camshaft position sensor.

Install the new sensor with the bolt, torquing it to 7.5 N.m (76 kgf.cm, 66 in.lbf), and reconnect the sensor connector.

Remove the bolt and the camshaft position sensor.

Installation follows the reverse order of removal.

First, remove the converter and inverter assembly.

Remove the windshield wiper link assembly, cowl top panel sub-assembly outer front, and inverter cover.

Install the engine under covers on both the right and left sides.

Reinstall the radiator support opening cover and both engine under covers, then perform initialization as certain systems require this after reconnecting the negative battery terminal.

A torque of 8.0 N.m (82 kgf.cm, 71 in.lbf) should be applied during reinstallation.

Disconnect the camshaft position sensor connector.

A light coat of engine oil.

Connect the camshaft position sensor connector.

Connect the camshaft position sensor connector.
