Toyota 87103-02200
Blower Motor

2006-2019 Toyota 8710302200

Customer Questions & Expert Answers (13)

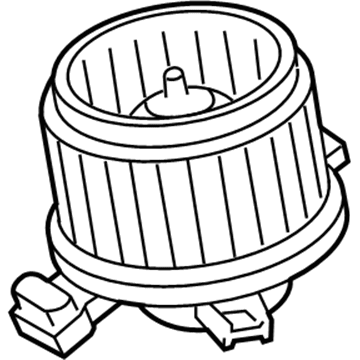

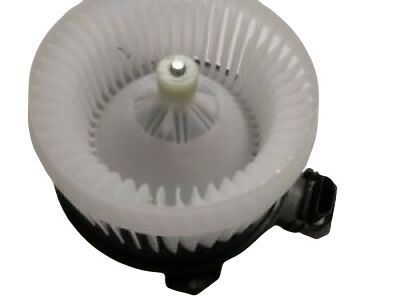

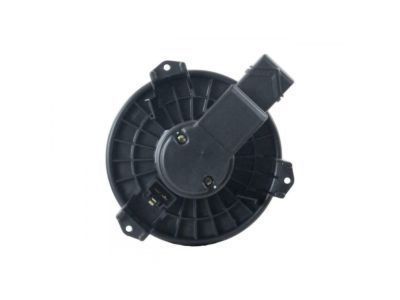

Toyota 87103-02200 Blower Motor
Toyota 87103-02200 Blower Motor
Toyota 87103-02200 Blower Motor
Toyota 87103-02200 Blower Motor
Toyota 87103-02200 Blower Motor
  • Part Description
    Motor Sub-Assembly, Blower; HVAC Blower Motor Assembly; Blower Assembly
  • Part Name Code
    87103B
  • Replaces
    87103-02280, 87103-42090
  • Manufacturer
    Toyota
Make sure this part fits
$138.64 MSRP: $196.26
You Save: $57.62 (30%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • 87103-02200 Blower Motor is Ref No. 4 in the diagram below

    2015 Toyota RAV4 Blower Motor Diagram for 87103-02200
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 87103-02200

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code87103B
    Manufacturer Part Number87103-02200
    Part DescriptionMotor Sub-Assembly, Blower; HVAC Blower Motor Assembly; Blower Assembly
    Other NamesFan & Motor; Motor Sub-Assembly, Blower W/Fan; HVAC Blower Motor
    Manufacturer NoteAIR CONDITIONER-MANUAL
    Item Dimensions9.6 x 9.8 x 9.1 inches
    Item Weight4.40 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces87103-02280, 87103-42090
    ManufacturerToyota
    SKU87103-02200
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2011-2016 Scion tCBase4 Cyl 2.5 L GAS
    2008-2015 Scion xBBase4 Cyl 2.4 L GAS
    2009-2019 Toyota Corolla50th Anniversary Special Edition, Base, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XRS, XSE4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
    2009-2013 Toyota MatrixBase, S, XRS4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
    2006-2018 Toyota RAV4Adventure, Base, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, Sport, XLE4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS

  • Customer Questions & Expert Answers

    Q:
    Can you provide the right 87103-02200 for my car? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 87103-02200 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to service and repair the blower motor on Scion xB? Posted by Customer
    A:
    The first step for servicing the blower motor involves removing the air inlet control servo motor after unscrewing its two screws. Now you must unfasten the 2 claws until the air filter case can be taken out. The next step requires extraction of the clean air filter. Unscrew the 2 screws holding the blower resistor and use this as the final step to eliminate the blower motor sub-assembly through the extraction of its 3 screws.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to reassemble the Blower Motor on Scion xB? Posted by Customer
    A:
    The blower unit requirements start with placing the blower motor through the use of 3 screws. The blower resistor needs two screws for installation. Follow the illustrated placement of clean air filters before installing the air filter case similarly to the depicted picture. Close the assembly by securing the air inlet control servo motor through its two screws.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to service and repair the blower motor on Toyota Corolla? Posted by Customer
    A:
    Service and repair of the blower motor requires workers to remove the air inlet control servo motor for the Manual Air Conditioning System through the removal of its 2 screws. The Automatic Air Conditioning System requires removal of its air inlet control servo motor which can be disassembled by unscrewing the 2 screws. The air filter case requires removal by simply detaching its 2 claws as shown in the illustration. Proceed to remove the clean air filter according to the shown instructions. The blower resistor of the Manual Air Conditioning System can be removed by undoing its two screws. The final step requires removing the blower motor sub-assembly through the removal of its 3 screws.
    Posted by ToyotaPartsNow Specialist
    Q:
    What does the blower motor service and repair involve on Toyota Matrix? Posted by Customer
    A:
    Performing repairs on the blower motor of the 2009 Toyota Matrix AWD L4-2.4L (2AZ-FE) requires having the required tools alongside following the detailed assembly and disassembly steps. Special Service Tool 00002-00001 needs to be used during the proper removal and installation of the blower unit components. Check all specific part numbers while ensuring complete connection security because this will help the heating and air conditioning system operate at its best level.
    Posted by ToyotaPartsNow Specialist
    Q:
    What can regular checks and timely repairs prevent for the 2009 Scion xB? Posted by Customer
    A:
    They can prevent larger issues and ensure a comfortable environment within the vehicle.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Blower Motor
    Q:
    What does blower motor service and repair involve for the 2008 Scion xB? Posted by Customer
    A:
    It involves understanding the components of the air conditioning blower unit.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Blower Motor
    Q:
    What should be done last to complete the process for the 2010 Scion xB? Posted by Customer
    A:
    Reconnect the negative battery cable and test the blower motor operation to ensure it functions correctly.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Blower Motor
    Q:
    What should be done after installing the blower motor sub-assembly for the 2009 Toyota Corolla? Posted by Customer
    A:
    Install the No. 2 instrument panel under cover sub-assembly with the instrument panel under cover.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Blower Motor
    Q:
    What should you do for the blower motor sub-assembly without a PTC heater for the 2009 Toyota Matrix? Posted by Customer
    A:
    Disengage the clamp, disconnect the connector, and remove the 3 screws to take out the blower motor sub-assembly.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Blower Motor
    Q:
    What should be removed after disconnecting the battery for the 2007 Toyota RAV4? Posted by Customer
    A:
    Remove the upper instrument panel, followed by the lower instrument panel, then the air duct, and the air conditioning unit.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Blower Motor
    Q:
    What is the final step in reassembling the blower unit for the 2008 Toyota RAV4? Posted by Customer
    A:
    Attach the 7 claws to install the heater to register duct assembly.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Blower Motor
    Q:
    What is the process for removing the air inlet control servo motor for the automatic air conditioning system for the 2009 Toyota RAV4? Posted by Customer
    A:
    Detach the claws and lever before removing the 3 screws to take out the air inlet control servo motor.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Blower Motor
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota 87103-02200, Excellent Performance and Perfect Fitment

To ensure reliability, purchase Toyota part # 87103-02200 Blower Motor. It is sometimes referred to as Toyota Blower Motor. OEM parts are unrivaled in terms of quality. They go through extensive quality control inspections and are produced in accordance with Toyota's official factory specifications. All of these remove defects and imperfections. So you can relax knowing they promise exceptional lifespan and flawless fitment.

ToyotaPartsNow.com is a leading supplier of genuine Toyota parts such as Toyota 8710302200 Blower Motor. At ToyotaPartsNow.com, we have a wide variety of OEM Toyota parts available at competitive prices. Our comprehensive range of genuine Toyota parts come with a manufacturer's warranty for peace of mind. We also prioritize customer satisfaction, providing a hassle-free return policy and expedited delivery for all our parts. For detailed Toyota parts information, click here.
Choose ToyotaPartsNow for discounted prices, exceptional service and fast delivery
