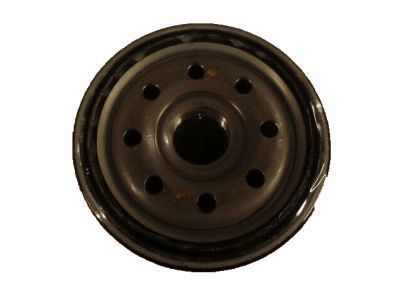

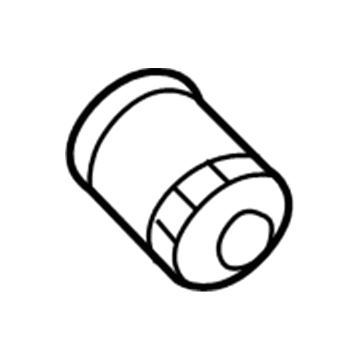

Toyota 90915-YZZD3
Filter, Oil

The first step for 2UZ-FE oil filter assembly installation involves cleaning the oil filter contact surface on the mounting before lubricating the rubber gasket with clean engine oil. Start by tightening the oil filter with hand motion until the rubber gasket touches the filter mounting seat. Then use Special Service Tool: 09228-07501 to provide an extra twist of 3/4 turn which firmly sets the filter. After oil filling choose fresh engine oil while verifying the right capacity then secure the oil filler cap. Verify for engine oil leaks during inspection while checking the oil level before securing the number one engine under cover sub-assembly.

Before removing the 1GR-FE engine oil filter a person must protect their skin from engine oil exposure and dispose of unwanted oil and filters in correct waste disposal areas. Engine oil drainage starts by unsealing Engine Under Cover No. 3 followed by removing the Oil Pan Drain Plug for oil depletion then cleaning the plug while attaching a new gasket to the plug and torque it at 40 Nm (408 kgf-cm, 30 ft-lbf). The next step involves removing the oil filter sub-assembly through drain pipe cap removal followed by the use of Special Service Tool: 09228-07501 which allows safe removal of the oil filter into a suitable container. Perform the following steps to close the drain pipe with its drain pipe cap along with cleaning the surrounding oil catch plate. Users who choose to employ a drain hose should remove the drain pipe cap then attach an 8 mm (0.31 in.) diameter drain hose measuring 900 mm (35.43 in.) that connects to the oil filter bracket before passing the hose through the engine under cover until it reaches a place where a container can catch the oil. To finish the task remove the oil filter by using Special Service Tool: 09228-07501, dispose of the drain hose before replacing the drain pipe cap and cleaning the oil catch plate.

The procedure to replace the 1GR-FE engine oil filter starts with proper safety measures to protect yourself from harmful engine oil exposure because prolonged skin contact can lead to irritation while the oil contains toxic substances. You need to drain all engine oil by removing engine under cover seal No. 3 while you also remove the oil pan drain plug until the oil empties completely. Use a new gasket to carry out the installation while torquing the drain plug to 40 Nm (408 kgf-cm, 30 ft-lbf). To remove the oil filter you must first unscrew the drain pipe cap followed by the use of Special Service Tool: 09228-07501 to complete the task with proper oil collection in a container. Reinstall the drain pipe cap while performing drain pipe cleaning on the oil catch plate. To drain the oil through a hose setup connect the pipe to the oil filter bracket utilizing a 900 mm (35.43 in.) hose and an 8 mm (0.31 in.) inside tube diameter and direct the hose through the engine under cover for oil collection. After draining the oil you should take away the drain hose and replace its cap. The first step of installation requires cleaning the surface of the oil filter bracket before applying clean engine oil to the rubber gasket of a new oil filter until it meets the bracket. Apply Special Service Tool: 09228-07501 to grip the oil filter and rotate it by 3/4 turn with a torque of 18 Nm (184 kgf-cm, 13 ft-lbf). Place fresh oil into the engine tank before reattaching the oil filler cap and inspect both oil leakage and engine oil level. All used oil and filters require disposal at specific waste collection points.

One must wear protective clothing combined with gloves to prevent exposure to mineral oil that can generate skin irritation as well as dermatitis before following proper instructions for used oil filter disposal at designated locations. Drain the engine oil by first removing the oil filler cap and then disassembling the 2 bolts beneath the No. 3 engine under cover before extracting the oil drain plug to transfer oil into a receptacle. Continue by separating the oil filter assembly by unscrewing both its bolts and service hole cover while employing Special Service Tool: 09228-07501 to unscrew the filter component. The procedure starts with cleaning and inspecting the oil filter seat followed by the application of clean engine oil to the new oil filter gasket before it is loosely tightened by hand when contact with the seat occurs. Special Service Tool: 09228-07501 will be employed for oil filter tightening. However, if adequate space exists, utilize a torque wrench to reach 17.2 N m (178 kgf cm, 13 ft. lbf) or else achieve 3/4 turn hand-tightening with standard wrenches. First install the drain plug by tightening it to 39 N m (398 kgf cm, 29 ft. lbf). Afterwards, add new oil according to the standard oil capacity and reinstall the oil filler cap. The last steps include checking engine oil leaks while verifying the oil level before using the 2 bolts to install the engine under cover and fastening the service hole cover with its own 2 bolts.

The first step to replace the oil filter requires protective precaution against skin exposure to used engine oil that might cause dry skin and inflammation or potentially dangerous consequences such as skin cancer; wear protective gloves and clothing then thoroughly clean your skin after work. Start by emptying engine oil through the following order: remove the oil filler cap while taking out the oil pan drain plug until the oil drains completely and install a new gasket before screwing in the drain plug to 38 Nm (382 kgf-cm, 28 ft. lbs. torque). Start by removing the oil filter sub-assembly through the utilization of Special Service Tool: 09228-07501. Engine installation requires contact surface cleaning from the engine side followed by applying engine oil to the O-ring of the new oil filter. Hand-installation should continue until the ring meets its seat. The Special Service Tool: 09228-07501 should be used totighten the filter to a reference torque of 13 Nm (133 kgf-cm, 10 ft. lbs.) using by 3/4 turn. The next step requires adding fresh oil to the proper amount and verifying there is no oil leakage. Thoroughly dispose of all used oil and filters at environmental protection facilities which handle proper disposal.

Check for engine oil leaks and verify the engine oil level.

Connect the drain hose to the oil filter bracket (with an inside diameter of 8 mm and a length of 900 mm), feed it through the engine under cover, and place a container beneath to catch the oil. After removing the oil filter with the special tool, take off the drain hose and cap the drain pipe again, cleaning the catch plate.

Reinstall the oil filler cap, check for leaks, and verify the engine oil level.

Clean the oil filter contact surface on the oil filter bracket.

Begin by draining the engine oil.

Fill the engine with fresh oil to the standard capacity and reinstall the oil filler cap.

Avoid prolonged contact with engine oil, which can cause skin irritation and contains harmful contaminants.

Remove the drain pipe cap and use Special Service Tool: 09228-07501 to take off the oil filter while catching the oil in a container.

Reinstall the oil filler cap, start the engine to check for oil leaks, recheck the engine oil level, and finally reinstall engine under cover No.3 and the service hole cover.

Drain the engine oil by removing the oil filler cap, the 2 bolts securing the No. 3 engine under cover, and then the oil drain plug to allow the oil to drain into a container.

Use Special Service Tool: 09228-07501 to remove the oil filter assembly.

Hook it onto the vehicle body and secure it with the 3 screws and 5 bolts, torquing the bolts to 29 Nm (296 kgf-cm, 21 ft-lbf) and the screws to 3.0 Nm (31 kgf-cm, 27 in-lbf).

Add 4.5 liters (4.8 US qts., 4.0 Imp. qts.) for a drain and refill with an oil filter change, 4.2 liters (4.4 US qts., 3.7 Imp. qts.) without an oil filter change, or 5.6 liters (5.9 US qts., 4.9 Imp. qts.) for a dry fill, and reinstall the oil filler cap.

Special Service Tool: 09228-07501.

Dispose of used oil and filters at designated sites.

Dispose of used oil and filters at designated disposal sites.

Take off the drain pipe cap and use Special Service Tool: 09228-07501 to detach the oil filter, ensuring a disposal container is placed beneath the drain hose to collect any residual oil.

Fill the engine with fresh oil and check for any leaks.

Tighten the oil filter by hand until the rubber gasket contacts the mounting seat, then use Special Service Tool: 09228-07501 to give it an additional 3/4 turn to ensure it is seated properly.

Clean the oil filter installation surface, apply clean engine oil to the gasket of a new oil filter, and lightly screw it into place by hand until the gasket contacts the seat.

Remove the oil filler cap and the oil drain plug, allowing the oil to flow into an oil disposal container.

Wash your skin thoroughly with soap and water or use a waterless hand cleaner.

Begin by draining the engine oil: remove the oil filler cap, then the oil pan drain plug to let the oil drain out.
