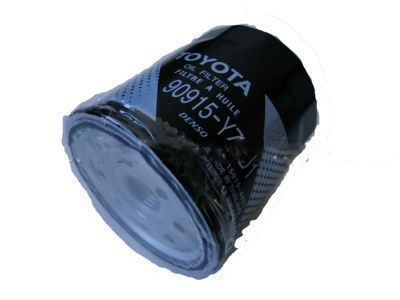

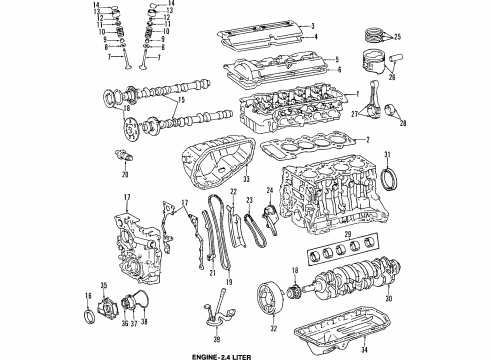

Toyota 90915-YZZD1
Oil Filter

When replacing an oil filter exercise extreme caution to avoid skin contact with used engine oil because it can lead to dryness along with irritation as well as potential harmful effects including skin cancer; follow precautions using protective gear and gloves before washing the affected skin with soap and water or using water-free hand cleaner. Proper disposal of used oil and oil filters must be done at specific sites. Choice to start with draining engine oil involves first unscrewing the oil filler cap before unscrewing the oil drain plug for collecting oil into a receptacle. To proceed with the operation, use Special Service Tool: 09228-06501 to extract the oil filter sub-assembly. The process for oil filter installation begins with cleaning the surface where you will place it then applying clean engine oil to the new filter gasket after which you should screw it in gently and stop tightening when the gasket contacts the seat. Special Service Tool: 09228-06501 helps users tighten the component by performing an additional three-fourths turn. The service requires fresh engine oil that must be measured according to the specific amounts: 3.8 liters (4.0 US qts, 3.3 Imp. qts) for drain and refill with oil filter change, 3.6 liters (3.8 US qts, 3.2 Imp. qts) for drain and refill without oil filter change, and 4.5 liters (4.8 US qts, 4.0 Imp. qts) for dry fill. Put the oil filler cap into place before checking for any oil leakage.

The replacement of oil filters requires safety precautions due to their interaction with mineral oil causing skin dryness and dermatitis while used engine oil might include damaging contaminant substances. Protected handwear and appropriate dress should be worn because post-demolition hand cleaning requires washing with soap and water or application of waterless hand cleaners to clear oil residue out of your hands. Refrain from using gasoline or solvents or thinners. The correct disposal spot for both used oil and oil filters exists. Start with engine oil removal through removing both the oil filler cap and oil drain plug which will drain the oil into a container. Move on to the removal of the oil filter sub-component which requires Special Service Tool: 09228-06501. The correct process of installation requires checking and cleaning the oil filter seat and applying fresh engine oil to a new filter gasket before tightening it until the gasket makes proper contact. Special Service Tool: 09228-06501 allows users to secure the new oil filter by an additional 3/4 turn. Apply fresh oil to the drained oil plug replaced with a new gasket after cleaning it. Transfer the required amounts of engine oil such as 3.8 liters (4.0 US qts., 3.3 Imp. qts.) when changing the oil filter and 3.6 liters (3.8 US qts., 3.1 Imp. qts.) when not changing the filter and 4.5 liters (4.7 US qts., 3.9 Imp. qts.) for dry fill procedures. Before concluding the process, replace the oil filler cap while verifying the system remains leak-free.

Before servicing the oil filter take safety measures to protect yourself from mineral oil exposure because it leads to skin dryness and dermatitis conditions along with its contaminant content. The suspension of protective gear with gloves protects users during service and washing with soap water should occur immediately after contact with mineral oil. Clear areas have been established for proper disposal of contaminated oil and filters. The service starts with draining engine oil through removal of the oil filler cap followed by the oil drain plug until the collected oil reaches a designated container. To remove the oil filter sub-assembly you must install Special Service Tool: 09228-06501 onto the oil filter before extracting it from the assembly. To install a new oil filter start by cleaning the mounting surface and applying clean engine oil to its gasket before screwing it lightly to reach the seat and finishing with an additional 3/4 turn while using Service Tool: 09228-06501. Proceed to install the fresh new oil drain plug using a new gasket then torque it to 25 Nm (255 kgf-cm, 18 ft. lbs.) and refill the engine with fresh oil before installing the oil filler cap. The last step should be to verify there are no oil leaks from the engine.

The first step of filter replacement requires caution against contact with engine oil because the substance affects skin health negatively. Use protective gloves and handwear during the process while cleaning your skin either with water-based soap or a water-free hand degreaser. Budgeted sites should be used for discarding used oil and oil filters. The oil filtering process starts with draining engine oil by removing the oil filler cap while taking out the oil drain plug to collect the oil in a suitable receptacle. Secure the oil drain plug after applying a fresh gasket then tighten it to 45 Nm (459 kgf-cm, 33 ft. lbs.). The cleanup requires removal of the oil filter sub-assembly by Special Service Tool: 09228-07501. Static installation requires users to first clean the oil filter seat before applying clean engine oil to a new filter gasket. This must be followed by gentle threading of the filter until it makes contact with the seat. After seating the filter using Special Service Tool: 09228-07501, proceed an additional 3/4 turn with the tool. Pour 4.7 liters (5.0 US quarts, 4.1 Imp. quarts) of fresh engine oil during drain and refill operations that involve changing the oil filter but use 4.5 liters (4.8 US quarts, 4.0 Imp. quarts) for drain and refill tasks without replacing the filter and maintain a 5.5 liters (5.8 US quarts, 4.8 Imp. quarts) capacity for dry fill procedures. Then proceed to install the oil filler cap. Inspect for potential engine oil leakages.

The first step in installing a new 2TR-FE oil filter is cleaning the surface of the engine where it will connect. After this, apply a thin amount of oil on the O-ring from a new filter before using your hands to install it until the O-ring reaches the seat. Before handheld installation of an oil filter place engine oil on its O-ring then fit it by hand until the O-ring touches the seat. The Special Service Tool: 09228-07501 enables users to turn the filter 3/4 of a turn so it achieves a reference torque of 13 N m (133 kgf/cm, 10 ft. lbf). Fresh oil should be added to the engine according to the standard measurement before a leakage test concludes the procedure.

It is essential to protect your skin from mineral oil along with wearing protective clothing and gloves while handling the oil filter to safeguard against possible dermatitis symptoms and exposure to dangerous contaminants in used engine oil. Execute the oil-draining procedure from start to finish by removing the oil filler cap followed by the oil dipstick before unscrewing the oil drain plug to collect oil into a suitable container. Use Special Service Tool: 09228-07501 to remove the existing filter positioned at the left side of the cylinder block. Clean the oil filter contact area on the mounting. Apply clean engine oil to the gasket seal of the new filter. Then, use the tool to tighten the filter until the gasket contacts the seat and finally complete the seating with another 3/4 turn of torque with the tool. I will complete the process by cleaning and installing the new gasket on the oil drain plug before refilling the engine with fresh oil. After that I will reinstall the oil filler cap. Check engine leakages before starting the engine and inspect the engine oil level again. To protect the environment dispose used oil and filters at stations specified for this purpose.

Fill with fresh engine oil: 3.8 liters (4.0 US qts, 3.3 Imp. qts) for a drain and refill with oil filter change, 3.6 liters (3.8 US qts, 3.2 Imp. qts) for a drain and refill without oil filter change, or 4.5 liters (4.8 US qts, 4.0 Imp. qts) for a dry fill.

Exercise caution as prolonged contact with mineral oil can lead to skin dryness, irritation, and dermatitis. Used engine oil may contain harmful contaminants. Wear protective clothing and gloves, and wash your skin thoroughly with soap and water or use a water-less hand cleaner to remove any used engine oil; avoid gasoline, thinners, or solvents.

Drain the engine oil by removing the oil filler cap and the oil drain plug.

Clean and install the oil drain plug with a new gasket and fill with fresh engine oil.

Take out the oil drain plug and let the oil drain into a container.

Install the oil filler cap and inspect for any oil leaks.

Dispose of used oil and oil filters only at designated disposal sites.

Use Special Service Tool: 09228-06501.

Check and clean the oil filter installation surface, apply clean engine oil to the gasket of a new oil filter, lightly screw it into place, and tighten until the gasket contacts the seat. Then, using Special Service Tool: 09228-06501, tighten it an additional 3/4 turn.

An additional 3/4 turn using Special Service Tool: 09228-07501.

Wear protective clothing and gloves to avoid skin contact with engine oil, which can cause irritation and contains harmful contaminants. Wash skin thoroughly after handling oil and dispose of used oil and filters at designated sites.

Take out the oil filter element and O-ring, ensuring the cap O-ring is removed by hand to avoid damage.

Dispose of used oil and filters at designated sites.

Wear protective clothing and gloves to minimize skin contact with used oil, and dispose of used oil and filters at designated disposal sites.

Warm up the engine and inspect for any oil leaks.

Wear protective clothing and gloves to avoid skin contact with engine oil, which can cause dryness and irritation and contains harmful contaminants. Wash your skin thoroughly after handling oil.

Use Special Service Tool: 09228-06501 to remove the oil filter sub-assembly.

Reinstall the oil filler cap and check for any engine oil leaks.

Begin by draining the engine oil.

Add 4.7 liters (5.0 US qts., 4.1 Imp. qts.) for a drain and refill with an oil filter change, 4.5 liters (4.8 US qts., 4.0 Imp. qts.) without an oil filter change, or 5.5 liters (5.8 US qts., 4.8 Imp. qts.) for a dry fill.

Install a new gasket before replacing the drain plug, torqued to 38 Nm (382 kgf-cm, 28 ft. lbs.).

Fill with new engine oil according to the specified oil capacity and reinstall the oil filler cap.

Clean the contact surface on the engine side, apply a light coat of engine oil to the O-ring of the new oil filter, and install it by hand until the O-ring contacts the seat.

Use Special Service Tool: 09228-07501 to remove the oil filter sub-assembly.
