Make sure this part fits

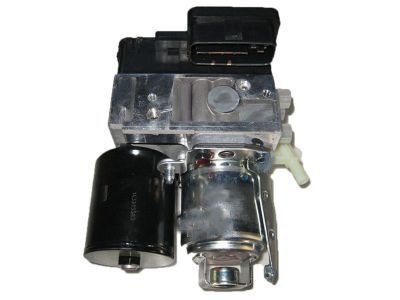

Toyota 44500-47141
Modulator Valve

2006-2009 Toyota Prius 4450047141

Customer Questions & Expert Answers (6)
Toyota 44500-47141 Modulator Valve
Toyota 44500-47141 Modulator Valve
Toyota 44500-47141 Modulator Valve
Toyota 44500-47141 Modulator Valve
  • Part Description
    Actuator Assembly, Brake; ABS Modulator Valve; ABS Pump And Motor Assembly; ABS Control Module
  • Replaces
    44500-47140
  • Manufacturer
    Toyota
Make sure this part fits
$1292.53 MSRP: $1627.04
You Save: $334.51 (21%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • 44500-47141 Modulator Valve is Ref No. 1 in the diagram below

    2007 Toyota Prius Modulator Valve Diagram for 44500-47141
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 44500-47141

  • Product Specifications

    BrandGenuine Toyota
    Manufacturer Part Number44500-47141
    Part DescriptionActuator Assembly, Brake; ABS Modulator Valve; ABS Pump And Motor Assembly; ABS Control Module
    Other NamesActuator Assembly
    Item Dimensions12.1 x 10.3 x 9.2 inches
    Item Weight17.60 Pounds
    ConditionNew
    Replaces44500-47140
    ManufacturerToyota
    SKU44500-47141
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2006-2009 Toyota PriusBase, Touring4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV)

  • Customer Questions & Expert Answers

    Q:
    Will 44500-47141 fit my vehicle? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 44500-47141 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to Properly Install the ABS Control Module on Toyota Prius? Posted by Customer
    A:
    The installation process for the skid control ECU begins with securing it using 3 nuts which should be torqued up to 5.0 Nm (51 kgf-cm, 44 in-lbf) and then connecting the 4 ECU connectors. The installation of wire harness clamp together with skid control buzzer must be done on the ABS Control Module bracket. The installation methods for the steering column assembly should continue up until the No 2. rear floor board installation stage. It is essential to attach your cable to the negative battery terminal while some systems might need to begin anew after reconnecting. Check the SRS warning light and start the process of initializing the brake system. Finish the procedure by executing the yaw rate sensor zero point calibration. Complete the procedure by examining and erasing the stored DTCs.
    Posted by ToyotaPartsNow Specialist
    Q:
    What is the first step to remove the Electronic Brake Control Module for the 2009 Toyota Prius? Posted by Customer
    A:
    First, disconnect the cable from the negative battery terminal and wait at least 90 seconds to prevent airbag and seat belt pretensioner activation.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar ABS Control Module
    Q:
    What is the final step regarding the battery for the 2006 Toyota Prius? Posted by Customer
    A:
    Reconnect the cable to the negative battery terminal, inspect the SRS warning light, and perform initialization, as certain systems require this after disconnecting and reconnecting the cable.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar ABS Control Module
    Q:
    What should be done after installing the skid control ECU for the 2007 Toyota Prius? Posted by Customer
    A:
    Install the steering column assembly by following the procedures for the installation of the steering column assembly up to the installation of the No 2. rear floor board.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar ABS Control Module
    Q:
    What is the final step in removing the Electronic Brake Control Module for the 2008 Toyota Prius? Posted by Customer
    A:
    Remove the skid control ECU by taking off the wire harness clamp and skid control buzzer from the skid control ECU bracket, disconnecting the 4 skid control ECU connectors, and removing the 3 nuts securing the skid control ECU.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar ABS Control Module
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota 44500-47141, Excellent Performance and Perfect Fitment

To ensure reliability, purchase Toyota part # 44500-47141 Modulator Valve. It is sometimes referred to as Toyota ABS Control Module, Toyota Brake Fluid Pump, Toyota ABS Pump And Motor Assembly. OEM parts are unrivaled in terms of quality. They go through extensive quality control inspections and are produced in accordance with Toyota's official factory specifications. All of these remove defects and imperfections. So you can relax knowing they promise exceptional lifespan and flawless fitment.

ToyotaPartsNow.com is a leading supplier of genuine Toyota parts such as Toyota 4450047141 Modulator Valve. At ToyotaPartsNow.com, we have a wide variety of OEM Toyota parts available at competitive prices. Our comprehensive range of genuine Toyota parts come with a manufacturer's warranty for peace of mind. We also prioritize customer satisfaction, providing a hassle-free return policy and expedited delivery for all our parts. For detailed Toyota parts information, click here.
Choose ToyotaPartsNow for discounted prices, exceptional service and fast delivery
