How to install the Clock Spring on Toyota Yaris?

The installation of the clock spring should start when the ignition switch is OFF and the negative terminal is removed but the installer needs to wait at least 90 seconds. Verify that the front wheels are aligned as you check to ensure the turn signal switch maintains a neutral stance for preventing breakage to the signal pin. You must install the clock spring by using the three claws while pulling the lock pin before installing the steering wheel when you replace the old clock spring with new one. The installation continues by attaching the Air Bag connector alongside the horn connector. Juxtapose both upper and lower covers by engaging their respective two claws prior to tightening the three screws. After locking the clock spring by counterclockwise rotation you should turn it clockwise 2.5 times to position the center indicators correctly. Fasten the steering wheel assembly while joining the horn and Air Bag connectors to match the Air Bag connector color with the steering pad assembly and make sure the locking button demonstrates complete safety. Install the steering pad using a "Torx" socket wrench T30 and tighten the 2 bolts until they reach a torque of 8.8 Nm (90 kgf-cm, 78 in-lbf). The negative battery terminal requires the attachment of the cable while achieving a torque of 5.4 Nm (55 kgf-cm, 48 in-lbf). Lastly, check the SRS warning light.

OEM Toyota Yaris Clock Spring

Spiral Cable Clock Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Clock Springs found

View related parts

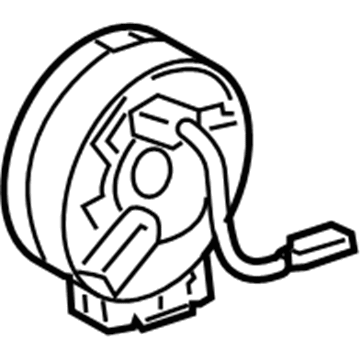

Toyota Yaris Clockspring
Part Number: 84306-WB002
$175.74 MSRP: $250.92
You Save: $75.18 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Sub-Assembly, Spiral; Air Bag Clockspring
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2020 Toyota Yaris | L, LE, XLE | 4 Cyl 1.5 L GAS
View related parts

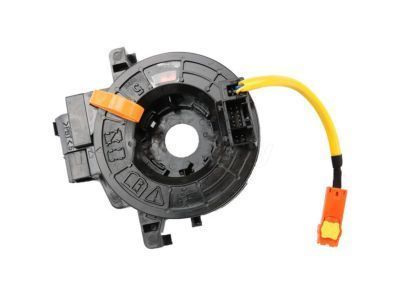

Toyota Yaris Clockspring
Part Number: 84306-22010
$273.65 MSRP: $390.71
You Save: $117.06 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Cable Sub-Assembly, Spiral; Air Bag Clockspring
- Manufacturer Note: MEXICO SPEC
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2012 Toyota Yaris | Base, S | 4 Cyl 1.5 L GAS
View related parts

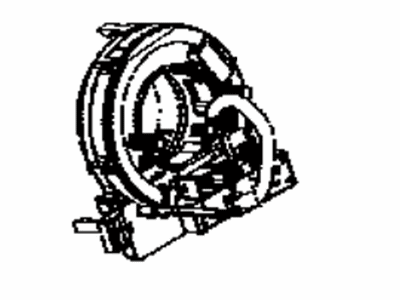

Toyota Yaris Clockspring
Part Number: 84307-47020
$444.83 MSRP: $651.91
You Save: $207.08 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Sub-Assembly, Spiral; Air Bag Clockspring; Cable Sub-Assembly, Spiral W/Sensor
- Replaced by: 84307-47021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2014 Toyota Yaris | Base, L, LE, SE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Clockspring
Part Number: 84306-WB007
$271.96 MSRP: $388.29
You Save: $116.33 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Sub-Assembly, Spiral
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020 Toyota Yaris | L, LE, XLE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Clockspring
Part Number: 84307-0D080
$492.24 MSRP: $721.38
You Save: $229.14 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Sub-Assembly, Spiral; Air Bag Clockspring; Cable Sub-Assembly, Spiral W/Sensor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015-2018 Toyota Yaris | L, LE, SE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Clockspring
Part Number: 84307-0D070
$72.39 MSRP: $101.62
You Save: $29.23 (29%)
Product Specifications
- Other Name: Cable Sub-Assembly, Spiral; Air Bag Clockspring; Cable Sub-Assembly, Spiral W/Sensor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015-2018 Toyota Yaris | L, LE, SE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Clockspring
Part Number: 84307-60020
$492.24 MSRP: $721.38
You Save: $229.14 (32%)
Product Specifications
- Other Name: Cable Sub-Assembly, Spiral; Air Bag Clockspring; Cable Sub-Assembly, Spiral W/Sensor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2014 Toyota Yaris | Base, L, LE, SE | 4 Cyl 1.5 L GAS

Toyota Yaris Clock Spring

Choose genuine Clock Spring that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Clock Spring for your Toyota Yaris? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Yaris parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Yaris Clock Spring Parts and Q&A

Clockspring
84306-22010
Q: How to install the Clock Spring on Toyota Yaris?
A:
The installation of the clock spring should start when the Ignition Switch is OFF and the negative terminal is removed but the installer needs to wait at least 90 seconds. Verify that the front wheels are aligned as you check to ensure the turn signal switch maintains a neutral stance for preventing breakage to the signal pin. You must install the clock spring by using the three claws while pulling the lock pin before installing the steering wheel when you replace the old clock spring with new one. The installation continues by attaching the Air Bag connector alongside the horn connector. Juxtapose both upper and lower covers by engaging their respective two claws prior to tightening the three screws. After locking the clock spring by counterclockwise rotation you should turn it clockwise 2.5 times to position the center indicators correctly. Fasten the steering wheel assembly while joining the horn and Air Bag connectors to match the Air Bag connector color with the steering pad assembly and make sure the locking button demonstrates complete safety. Install the steering pad using a "Torx" socket wrench T30 and tighten the 2 bolts until they reach a torque of 8.8 Nm (90 kgf-cm, 78 in-lbf). The negative battery terminal requires the attachment of the cable while achieving a torque of 5.4 Nm (55 kgf-cm, 48 in-lbf). Lastly, check the SRS warning light.
