How to remove the Crankshaft Position Sensor on Toyota Tundra?

Starting the Crankshaft Position Sensor removal process of 1GR-FE engine control systems requires users to first remove the negative battery cable before waiting at least 90 seconds post-ignition shutdown for navigation systems to save memory data. The first step involves removing the No. 1 engine under cover while performing fan and generator V belt removal after. You need to extract the generator assembly along with separate removal of the cooler compressor assembly. Get rid of the Crankshaft Position Sensor after disconnecting its connector and unbolting and taking out the sensor unit.

How to install the Crankshaft Position Sensor on Toyota Tundra?

When performing installation of the Crankshaft Position Sensor for the 1GR-FE engine control system, apply engine oil to the sensor O-ring before inserting the sensor with its bolt at 10 Nm (102 kgf-cm, 7 ft-lbf) while attaching the sensor connector. Proceed with connecting the Cooler Compressor Assembly and moving forward with the Generator Assembly installation before you install the Fan and Generator V Belt. To complete the installation sequence you should apply engine sensor oil to the O-ring before installing both the No. 1 Engine Under Cover and connecting the battery cable to the negative terminal. Some systems need to be initialized once the cable is reconnected.

OEM Toyota Tundra Crankshaft Position Sensor

Engine Crankshaft Position Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Crankshaft Position Sensors found

View related parts

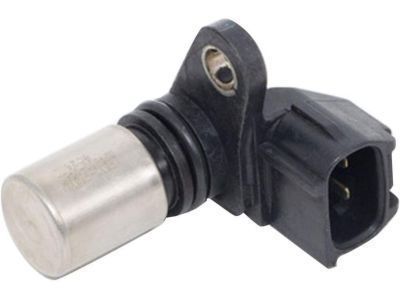

Toyota Tundra Camshaft Position Sensor, Driver Side
Part Number: 90919-T5005
$102.96 MSRP: $144.53
You Save: $41.57 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Crank Position; Engine Camshaft Position Sensor, Left; Crankshaft Position Sensor; Camshaft Sensor; Cam Sensor; Sensor, Cam Position; Engine Camshaft Position Sensor
- Manufacturer Note: (L)
- Position: Driver Side
- Replaces: 9004A-19003, 90919-05060, 90919-T5002
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2021 Toyota Tundra | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Sensor, Crank Position
Part Number: 90919-A5003
$72.15 MSRP: $101.28
You Save: $29.13 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Crankshaft Position Sensor; Crankshaft Position Sensor
- Manufacturer Note: (L)
- Replaces: 90919-05057
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2014 Toyota Tundra | Base, SR, SR5 | 6 Cyl 4.0 L GAS
View related parts
Toyota Tundra Sensor, Crank Position
Part Number: 90919-05071
$104.27 MSRP: $146.36
You Save: $42.09 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Crankshaft Position Sensor; Crankshaft Position Sensor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2021 Toyota Tundra | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Crankshaft Position Sensor
Part Number: 90919-05020
$136.64 MSRP: $193.43
You Save: $56.79 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Crank Position; Engine Crankshaft Position Sensor; Crankshaft Sensor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tundra | Base, SR5 | 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Sensor, Crank Position
Part Number: 90919-A5008
$94.08 MSRP: $132.06
You Save: $37.98 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Sensor, Camshaft Position
Part Number: 90919-A5007
$103.20 MSRP: $144.86
You Save: $41.66 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Crank Position; Sensor, Cam Position; Engine Camshaft Position Sensor
- Replaces: 90919-05096
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Sensor, Crank Position
Part Number: 90919-A5001
$125.83 MSRP: $178.13
You Save: $52.30 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Crankshaft Position Sensor; Crankshaft Position Sensor
- Manufacturer Note: (L)
- Replaces: 90919-05035
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2009 Toyota Tundra | Base, Limited, SR5 | 8 Cyl 4.7 L GAS

Toyota Tundra Crankshaft Position Sensor

Choose genuine Crankshaft Position Sensor that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Crankshaft Position Sensor for your Toyota Tundra? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Tundra parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Crankshaft Position Sensor in Toyota Tundra is an essential electronic part of a vehicle that help to achieve engine phase and sends electronic impulses to the engine management system. This sensor assists in regulating the fuel injection, ignition period and other characteristics that make the engine efficient. Generally, located on the main crank pulley, flywheel, camshaft, or crankshaft, the types of sensors can vary depending on the type and brand and includes the inductive, Hall Effect, magnetoresistive, and optical sensors. The problems with the sensor may cause starting issues or even the engine cut-outs; therefore, the component should work correctly for a satisfactory performance of the engine. In sum, understanding the significance of Crankshaft Position Sensor it may be highlighted that it performs a very important function in management of Toyota Tundra automobiles.

Toyota Tundra Crankshaft Position Sensor Parts and Q&A

Sensor, Crank Position
90919-05071
Q: How to remove the Crankshaft Position Sensor on Toyota Tundra?
A:
Starting the Crankshaft Position Sensor removal process of 1GR-FE engine control systems requires users to first remove the negative battery cable before waiting at least 90 seconds post-ignition shutdown for navigation systems to save memory data. The first step involves removing the No. 1 engine under cover while performing fan and generator V belt removal after. You need to extract the generator assembly along with separate removal of the cooler compressor assembly. Get rid of the Crankshaft Position Sensor after disconnecting its connector and unbolting and taking out the sensor unit.
Sensor, Crank Position
90919-A5003
Q: How to install the Crankshaft Position Sensor on Toyota Tundra?
A:
When performing installation of the Crankshaft Position Sensor for the 1GR-FE engine control system, apply engine oil to the sensor O-ring before inserting the sensor with its bolt at 10 Nm (102 kgf-cm, 7 ft-lbf) while attaching the sensor connector. Proceed with connecting the Cooler Compressor Assembly and moving forward with the Generator Assembly installation before you install the Fan and Generator V Belt. To complete the installation sequence you should apply engine sensor oil to the O-ring before installing both the No. 1 Engine Under Cover and connecting the battery cable to the negative terminal. Some systems need to be initialized once the cable is reconnected.
