How to remove the front Sway Bars on Toyota Sienna?

Removal of the front Sway Bars for 4WD begins with taking off the front wheels. Procedure for removing the front sway bar link assembly LH and front sway bar link assembly RH follows the same steps. Begin by eliminating the center exhaust pipe assembly then remove the two bolts from the No. 1 front sway bar bracket LH followed by the corresponding procedure on the No. 1 front sway bar bracket RH. Use Special Service Tool: 09628-62011 to divide the left-hand tie rod assembly then perform the same procedure for the right-hand tie rod assembly. The technician should use Tool: 09023-12701 to disassemble the pressure feed tube assembly before working on the steering intermediate shaft assembly. The first step demands the rack & pinion power steering gear assembly removal along with the manifold stay and finally the exhaust manifold sub-assembly RH. The end of the repair process includes removal of the No. 1 front sway bar bushing as well as the front Sway Bars.

How to install the front Sway Bars on Toyota Sienna?

The installation of the front Sway Bars for 4WD requires the front Sway Bars to go first with the No. 1 front sway bar bushing positioned on the outer side of the bushing stopper on the Sway Bars while the slit must face towards the rear side of the vehicle. Start by installing the exhaust manifold sub-assembly RH then move on to manifold stay followed by steering intermediate shaft assembly and rack & pinion power steering gear assembly. The pressure feed tube assembly needs Special Service Tool: 09023-12701 to establish the connection before installing the tie rod assembly LH and RH. Remove the RH side using the same methods as the LH side installation. The installer should bolt both No. 1 front sway bar bracket LH and RH sections using two bolts with appropriate torques of 17 Nm (173 kgf-cm, 12 ft-lbf). Install and secure the center exhaust pipe assembly before installing front sway bar link assemblies at both LH and RH sides using the same installation procedures for each part. The last steps should include front wheel installation followed by checking the center front wheel alignment against the steering wheel center point before adding power steering fluid and bleeding the system and conducting a power steering fluid leak inspection.

OEM Toyota Sienna Sway Bars

Stabilizer Sway Bar Set

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Sway Bars found

View related parts
Toyota Sienna Stabilizer Bar, Front Part Number: 48811-AE030
$154.22 MSRP: $218.31
You Save: $64.09 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Sienna | CE, LE, Limited, XLE, XLE Limited | 6 Cyl 3.3 L GAS
View related parts
Toyota Sienna Stabilizer Bar, Front Part Number: 48811-08010
$156.73 MSRP: $221.87
You Save: $65.14 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2010 Toyota Sienna | CE, LE, Limited, XLE | 6 Cyl 3.5 L GAS
View related parts

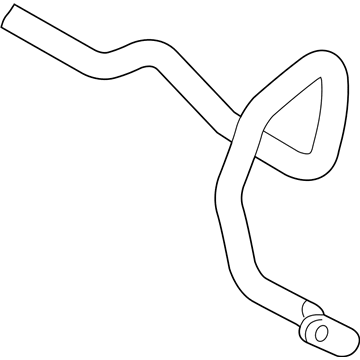

Toyota Sienna Stabilizer Bar, Front Part Number: 48811-08030
$127.59 MSRP: $180.62
You Save: $53.03 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2013 Toyota Sienna | Base, L, LE, Limited, SE, XLE | 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Stabilizer Bar, Front Part Number: 48804-08011
$129.00 MSRP: $182.62
You Save: $53.62 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar Sub-Assembly, Front Stabilizer; Suspension Stabilizer Bar, Front; Bar, Stabilizer, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2025 Toyota Sienna | 25th Anniversary Edition, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Sienna Stabilizer Bar, Front Part Number: 48811-08031
$130.77 MSRP: $185.11
You Save: $54.34 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2020 Toyota Sienna | L, LE, Limited, Limited Premium, SE, SE Premium, XLE, XLE Premium | 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Stabilizer Bar, Front Part Number: 48811-08040
$133.35 MSRP: $188.77
You Save: $55.42 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2020 Toyota Sienna | Base, L, LE, Limited, Limited Premium, SE, SE Premium, XLE, XLE Premium | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Stabilizer Bar, Front Part Number: 48804-08021
$134.64 MSRP: $190.60
You Save: $55.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar Sub-Assembly, Front Stabilizer; Bar, Stabilizer, Front
- Manufacturer Note: MAAS PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2025 Toyota Sienna | 25th Anniversary Edition, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Sienna Stabilizer Bar, Front Part Number: 48804-08020
$136.05 MSRP: $192.60
You Save: $56.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar Sub-Assembly, Front Stabilizer; Suspension Stabilizer Bar, Front; Sway Bar; Bar, Stabilizer, Front
- Manufacturer Note: MAAS PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Sienna | LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Sienna Stabilizer Bar, Front Part Number: 48811-08020
$159.67 MSRP: $226.04
You Save: $66.37 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2010 Toyota Sienna | CE, LE, Limited, XLE | 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Stabilizer Bar, Rear Part Number: 48812-08020
$66.11 MSRP: $92.80
You Save: $26.69 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2025 Toyota Sienna | 25th Anniversary Edition, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Sienna Stabilizer Bar, Rear Part Number: 48812-08030
$67.65 MSRP: $94.96
You Save: $27.31 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Manufacturer Note: MAAS PACKAGE
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2025 Toyota Sienna | 25th Anniversary Edition, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts

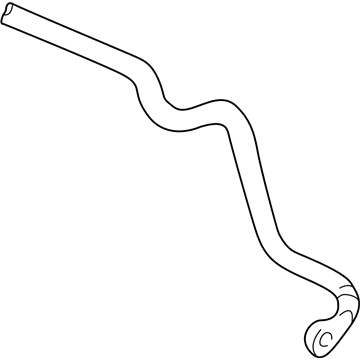

Toyota Sienna Stabilizer Bar, Front Part Number: 48811-AE010
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.0 L GAS
View related parts
Toyota Sienna Stabilizer Bar, Front Part Number: 48811-AE020
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Sienna | CE, LE, Limited, XLE, XLE Limited | 6 Cyl 3.3 L GAS

Toyota Sienna Sway Bars

Choose genuine Sway Bars that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Sway Bars for your Toyota Sienna? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sienna parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Sway Bars on a Toyota Sienna restrict excessive body roll during cornering. They are situated in the suspension arms on either side of the vehicle. They link the vehicle's left and right suspension, resisting rollover. A Toyota Sienna Sway Bars component consists of a solid metal rod that twists whenever one wheel rises or falls within the Toyota framework, and this twisting action enhances handling and helps keep the wheels more level. By employing end links, the Sway Bars secure themselves to the suspension while connecting to the frame through rubber or polyurethane bushings. This forms a levered bridge that acts against lateral weight transfer. It is worth inspecting the original Sienna bushings and link sockets for wear and tear. If the bushings are worn out or cracked, or the sockets are elongated, clunking noises can be heard. Moreover, you will experience increased roll and less precise steering. So, this inspection should take place with suspension loaded and unloaded. If bushings are serviceable, they can be renewed with repair kits. On the other hand, links containing an integral ball joint are replaced as complete pieces when looseness develops. These Sway Bars are typically tough but will get bent by a collision impact or rust. Addressing this in a timely manner will keep Toyota's handling crisp while providing consistent Sienna stability through the Sway Bars.

Toyota Sienna Sway Bars Parts and Q&A

Stabilizer Bar, Front
48811-08010
Q: How to remove the front Sway Bars on Toyota Sienna?
A:
Removal of the front Sway Bars for 4WD begins with taking off the front wheels. Procedure for removing the front sway bar link assembly LH and front sway bar link assembly RH follows the same steps. Begin by eliminating the center Exhaust Pipe assembly then remove the two bolts from the No. 1 front sway bar bracket LH followed by the corresponding procedure on the No. 1 front sway bar bracket RH. Use Special Service Tool: 09628-62011 to divide the left-hand tie rod assembly then perform the same procedure for the right-hand tie rod assembly. The technician should use Tool: 09023-12701 to disassemble the pressure feed tube assembly before working on the steering intermediate shaft assembly. The first step demands the rack & pinion power steering gear assembly removal along with the manifold stay and finally the exhaust manifold sub-assembly RH. The end of the repair process includes removal of the No. 1 front sway bar bushing as well as the front Sway Bars.
Stabilizer Bar, Front
48811-08020
Q: How to install the front Sway Bars on Toyota Sienna?
A:
The installation of the front Sway Bars for 4WD requires the front Sway Bars to go first with the No. 1 front sway bar bushing positioned on the outer side of the bushing stopper on the Sway Bars while the slit must face towards the rear side of the vehicle. Start by installing the exhaust manifold sub-assembly RH then move on to manifold stay followed by steering intermediate shaft assembly and rack & pinion power steering gear assembly. The pressure feed tube assembly needs Special Service Tool: 09023-12701 to establish the connection before installing the tie rod assembly LH and RH. Remove the RH side using the same methods as the LH side installation. The installer should bolt both No. 1 front sway bar bracket LH and RH sections using two bolts with appropriate torques of 17 Nm (173 kgf-cm, 12 ft-lbf). Install and secure the center Exhaust Pipe assembly before installing front sway bar link assemblies at both LH and RH sides using the same installation procedures for each part. The last steps should include front wheel installation followed by checking the center front wheel alignment against the steering wheel center point before adding power steering fluid and bleeding the system and conducting a power steering fluid leak inspection.
