How to remove the drive belt on Toyota Sienna?

Start drive belt removal on the 2GR-FE engine by taking away the right-hand front wheel and front fender apron seal from its right position. The belt tensioner requires the Special Service Tool: 09249-63010 to unwind its tension through counterclockwise rotation which enables easy removal of the V-ribbed belt from its position. When rotating the belt tensioner counterclockwise, you should position it properly through its holes before inserting a 5 mm bi-hexagon wrench to maintain the V-ribbed belt tensioner in position.

How to service and repair the drive belt on Toyota Sienna?

The repair and service of the drive belt requires starting with removal of the right-hand front wheel and then the right-hand front fender apron seal. Begin by loosening bolt A and then bolt B before adjusting bolt C to take off the V-ribbed belt which connects the No. 1 V pulley (cooler compressor to crankshaft pulley). Begin the vane pump V belt removal by loosening bolts A and B which allows you to take off the V-ribbed belt. The vane pump V belt installation requires placing the V-ribbed belt on each pulley followed by tension bar adjustment then torque bolt B to 44 Nm (449 kgf-cm, 32 ft. lbs.) followed by bolt A tightening at the same torque. The installation of the No. 1 V belt includes aligning the V-ribbed belt across pulleys then tightening the adjusting bolt C while adjusting tension. Both tightening procedures require tracing the correct torque values: tighten bolt A to 58 Nm (591 kgf-cm, 43 ft. lbs.) followed by tightening bolt B to 18 Nm (184 kgf-cm, 13 ft. lbs.). The final step includes checking drive belt deflection together with tension followed by torqueing the front wheel RH to 103 Nm (1,050 kgf-cm, 76 ft. lbs.).

OEM Toyota Sienna Drive Belt

Serpentine Belt

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Drive Belts found

View related parts

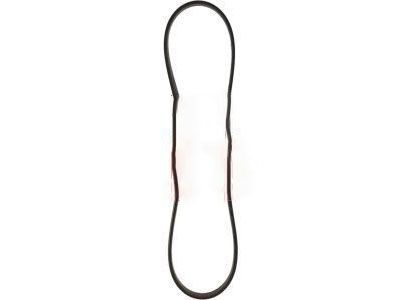

Toyota Sienna Belt, V (Cooler Compressor To Crankshaft Pulley)
Part Number: 99366-31040
$26.76 MSRP: $37.25
You Save: $10.49 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Accessory Drive Belt; Serpentine Belt
- Replaces: 99366-21040-83, 99366-21040, 99366-D1040, 90080-91147
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2006 Toyota Sienna | CE, LE, Limited, XLE, XLE Limited | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts
Toyota Sienna Alternator Belt
Part Number: 99366-20950-83
$17.20 MSRP: $23.93
You Save: $6.73 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: V-Belt; Accessory Drive Belt; Serpentine Belt Drive Kit; Serpentine Belt; Drive Belt
- Replaces: 99366-90950, 99366-20950
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.0 L GAS
View related parts
Toyota Sienna Power Steering Belt
Part Number: 90080-91212
$16.00 MSRP: $22.27
You Save: $6.27 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Accessory Drive Belt; Serpentine Belt Drive Kit; Serpentine Belt; V-Belt; Belt, V(For Vane Pump); Drive Belt
- Manufacturer Note: L=880
- Replaces: 90080-91088, 99364-90880, 90080-91088-83
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2006 Toyota Sienna | CE, LE, Limited, XLE, XLE Limited | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts
Toyota Sienna Belt, V(For Fan & Alternator)
Part Number: 90916-A2019
$47.19 MSRP: $65.68
You Save: $18.49 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Serpentine Belt; Drive Belt; V-Belt
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2016 Toyota Sienna | Base, L, LE, Limited, SE, XLE | 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Serpentine Belt
Part Number: 90916-A2010
$41.69 MSRP: $58.04
You Save: $16.35 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Drive Belt; V-Belt; A/C Belt; Belt, V(For Fan & Alternator)
- Manufacturer Note: (L)
- Replaces: 99367-C2090
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2010 Toyota Sienna | CE, LE, Limited, XLE | 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Belt, V(For Fan & Alternator)
Part Number: 90916-A2026
$40.74 MSRP: $56.70
You Save: $15.96 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Serpentine Belt; Drive Belt; V-Belt
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2017-2020 Toyota Sienna | L, LE, Limited, Limited Premium, SE, SE Premium, XLE, XLE Premium | 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Serpentine Belt
Part Number: 90916-A2020
$24.96 MSRP: $34.75
You Save: $9.79 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Drive Belt; V-Belt; Belt, V(For Fan & Alternator)
- Replaces: 90916-02646, 90916-02645
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2012 Toyota Sienna | Base, LE | 4 Cyl 2.7 L GAS

Toyota Sienna Drive Belt

Choose genuine Drive Belt that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Drive Belt for your Toyota Sienna? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sienna parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Drive Belt in Toyota Sienna vehicles is the critical part that helps the engine run other devices such as the alternator and A/C compressor. Usually, other parts are driven by a serpentine belt which in this case is fitted to the crankshaft pulley for proper transmission of power. Typically, most Drive Belts used in Sienna automobiles have a working life of approximately one hundred thousand miles; however, fracturing or fraying of the Drive Belt requires it to be replaced because it will harm the parts and the engine. There is a wide range of Drive Belts used in the mechanical systems such as V-belts, the multi-groove belts, and timing belts whereby each has its attributes in terms of the type of traction, durability, and precision movement. Compared to gears and chains, Toyota Sienna Drive Belts can offer a cheaper solution that is easy to maintain and also can partly shift if misaligned; however, the torque that is transferred by belts is lower than the torque passed through gears/chains and belts can slip. But there has been development to eliminate slipping challenges that affect the smooth running of the toothed belts depending on temperatures and other uses.

Toyota Sienna Drive Belt Parts and Q&A

Serpentine Belt
90916-A2010
Q: How to remove the drive belt on Toyota Sienna?
A:
Start drive belt removal on the 2GR-FE engine by taking away the right-hand front wheel and front fender apron seal from its right position. The belt tensioner requires the Special Service Tool: 09249-63010 to unwind its tension through counterclockwise rotation which enables easy removal of the V-ribbed belt from its position. When rotating the belt tensioner counterclockwise, you should position it properly through its holes before inserting a 5 mm bi-hexagon wrench to maintain the V-ribbed belt tensioner in position.
Belt, V (Cooler Compressor To Crankshaft Pulley)
99366-31040
Q: How to service and repair the drive belt on Toyota Sienna?
A:
The repair and service of the drive belt requires starting with removal of the right-hand front wheel and then the right-hand front fender apron seal. Begin by loosening bolt A and then bolt B before adjusting bolt C to take off the V-ribbed belt which connects the No. 1 V pulley (cooler compressor to crankshaft pulley). Begin the vane pump V belt removal by loosening bolts A and B which allows you to take off the V-ribbed belt. The vane pump V belt installation requires placing the V-ribbed belt on each pulley followed by tension bar adjustment then torque bolt B to 44 Nm (449 kgf-cm, 32 ft. lbs.) followed by bolt A tightening at the same torque. The installation of the No. 1 V belt includes aligning the V-ribbed belt across pulleys then tightening the adjusting bolt C while adjusting tension. Both tightening procedures require tracing the correct torque values: tighten bolt A to 58 Nm (591 kgf-cm, 43 ft. lbs.) followed by tightening bolt B to 18 Nm (184 kgf-cm, 13 ft. lbs.). The final step includes checking drive belt deflection together with tension followed by torqueing the front wheel RH to 103 Nm (1,050 kgf-cm, 76 ft. lbs.).
