How to remove the rear Crankshaft Seal on Toyota Sequoia?

An engineer should start by removing the automatic transmission assembly for both 2WD and 4WD models before attempting to remove the 2UZ-FE engine crankshaft oil seal. The next step requires complete removal of both the drive plate together with the ring gear sub-assembly. Remove the rear crankshaft oil seal by first using a knife to trim its lip and afterward extracting it with a taped screwdriver. Maintain caution to avoid damaging the crankshaft and oil seal press fit hole surface during this process.

How to install the front Crankshaft Seal and timing pulley on Toyota Sequoia?

Before you install the front crankshaft oil seal you need to apply MP grease to its lip on the new oil seal. A hammer and the Special Service Tools: 09316-60011 and 09316-00011 should be used to tap the oil seal into position until its surface level matches the oil pump body edge while avoiding angled impacts and ensuring no contaminants enter the included lip section. The installation requires Special Service Tool: 09223-46011 and a hammer to tap the timing pulley in while using the set key to align it with the pulley's key groove with the flange side facing towards the inside. Connect the cable to the negative battery terminal with it requiring 5.4 Nm torque (55 kgf-cm, 48 in-lbf) while some systems may require initialization after reconnection. The technician should inspect for leaks of engine oil and coolant and fuel along with measuring engine oil level and checking ignition timing and engine idling speed. The installation procedure ends with the fitting of engine under cover No. 1.

OEM Toyota Sequoia Crankshaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Crankshaft Seals found

View related parts

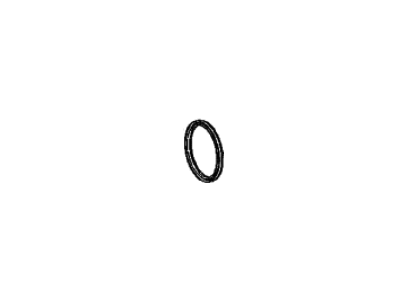

Toyota Sequoia Oil Seal, Front
Part Number: 90311-A0005
$19.11 MSRP: $26.60
You Save: $7.49 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Crankshaft Seal; Front Seal; Timing Cover Oil Seal; Engine Crankshaft Seal
- Position: Front
- Replaces: 90311-42019, 90311-42007, 90311-42037, 90311-42036
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

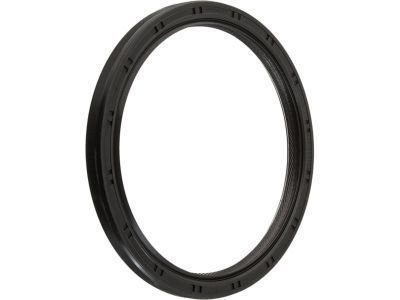

Toyota Sequoia Rear Main Seal
Part Number: 90311-A0002
$31.42 MSRP: $43.73
You Save: $12.31 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Timing Cover Seal; Rear Seal; Seal, Engine Rear Oil
- Manufacturer Note: (L)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

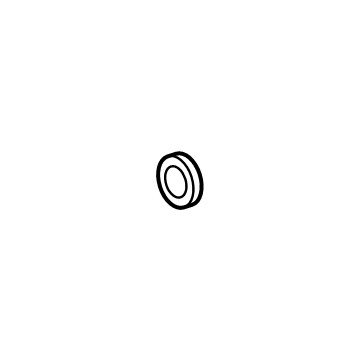

Toyota Sequoia Seal, Engine Rear Oil
Part Number: 90311-95013
$42.17 MSRP: $58.70
You Save: $16.53 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil
- Replaces: 90311-95012, 90311-95007
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

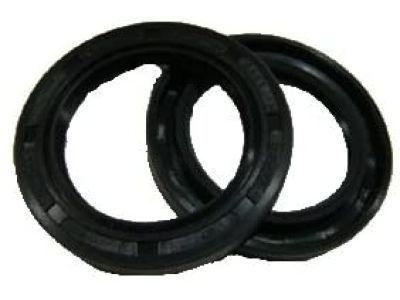

Toyota Sequoia Crankshaft Seal
Part Number: 90311-A0036
$15.05 MSRP: $20.94
You Save: $5.89 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Harmonic Balancer Seal; Front Crank Seal; Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2024 Toyota Sequoia | Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts

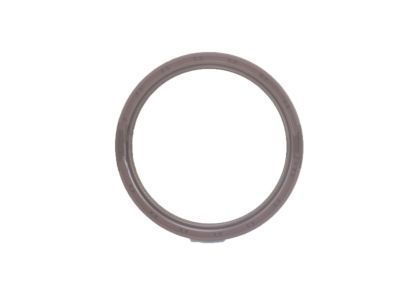

Toyota Sequoia Rear Main Seal
Part Number: 90311-A0034
$41.69 MSRP: $58.04
You Save: $16.35 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Seal, Engine Rear Oil
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Sequoia | Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)

Toyota Sequoia Crankshaft Seal

Choose genuine Crankshaft Seal that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Crankshaft Seal for your Toyota Sequoia? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sequoia parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Sequoia Crankshaft Seal Parts and Q&A

Rear Main Seal
90311-A0002
Q: How to remove the rear Crankshaft Seal on Toyota Sequoia?
A:
An engineer should start by removing the automatic transmission assembly for both 2WD and 4WD models before attempting to remove the 2UZ-FE engine crankshaft oil seal. The next step requires complete removal of both the drive plate together with the ring gear sub-assembly. Remove the rear crankshaft oil seal by first using a knife to trim its lip and afterward extracting it with a taped screwdriver. Maintain caution to avoid damaging the crankshaft and oil seal press fit hole surface during this process.
Oil Seal, Front
90311-A0005
Q: How to install the front Crankshaft Seal and timing pulley on Toyota Sequoia?
A:
Before you install the front crankshaft oil seal you need to apply MP grease to its lip on the new oil seal. A hammer and the Special Service Tools: 09316-60011 and 09316-00011 should be used to tap the oil seal into position until its surface level matches the oil pump body edge while avoiding angled impacts and ensuring no contaminants enter the included lip section. The installation requires Special Service Tool: 09223-46011 and a hammer to tap the timing pulley in while using the set key to align it with the pulley's key groove with the flange side facing towards the inside. Connect the cable to the negative battery terminal with it requiring 5.4 Nm torque (55 kgf-cm, 48 in-lbf) while some systems may require initialization after reconnection. The technician should inspect for leaks of engine oil and coolant and fuel along with measuring engine oil level and checking ignition timing and engine idling speed. The installation procedure ends with the fitting of engine under cover No. 1.
