How to remove and install windshield glass on Toyota RAV4?

The windshield glass removal needs a beginning step of disconnecting the negative terminal cable from the battery then waiting 90 seconds to stop Air Bag and seat belt pretensioner activation. First remove the front door opening trim LH by partially detaching the Weather Strip followed by the exact procedure for the RH side. The service technician should remove the front pillar garnish LH and RH followed by the inner rear view mirror assembly, the room light assembly, the assist grip cover and sub-assembly front and visor assemblies LH and RH along with the visor holder before setting the roof headliner somewhat below its original position without complete removal. The removal process starts with separating the front wiper arm head cap from the front wiper arm and blade assemblies LH and RH followed by taking away the front fender to cowl side seals LH and RH and the No. 2 windshield moulding outside LH and RH using a clip and claw tool and applying protective tape to the vehicle body then heating the moulding and tying piano wire to wooden blocks before cutting adhesive tape and dislodging clip and fastener. Apply the identical method to remove and replace the No. 1 windshield outside fastener. Cut the cowl top ventilator louver and the front window moulding inner center carefully with knife tools. The procedure for windshield glass removal begins with disconnecting the connector if the vehicle has a deicer feature before applying protective tape to the body followed by inserting the piano wire between glass and body. Then tie handles to the wire ends and place matchmarks when reinstalling the glass and cut through adhesive before disengaging stoppers and removing the glass using suction cups. You should prepare the windshield glass by removing all damaged adhesive and stoppers while utilizing white gasoline to clean its edges. Remove excess adhesive from the body before cleaning it with the recommended solution. The installer must dry Primer G on glass areas designated for spacers before putting in two new spacers. After applying Primer G to the glass edge and contact surface add the No. 1 windshield glass stopper and window glass adhesive dam then install the windshield outside moulding before waiting for the specified downtime. Further installation steps require sensitive glass placement with suction cups followed by validation of contact areas then the application of matchmarks next to the exposed body and usage of Toyota Genuine Windshield Glass Adhesive or Equivalent as well as installation with proper alignment of matchmarks and protective tape placement until adhesive hardens. Reinstall the cowl top ventilator louver, the No. 2 and No. 1 windshield outside moulding fasteners, the No. 2 windshield moulding outside LH and RH, the front fender to cowl side seals LH and RH, the front wiper arm and blade assemblies LH and RH, the front wiper arm head cap, the roof headlining, the visor holder, the visor assemblies LH and RH, the assist grip sub-assembly, the assist grip cover, the room light assembly, the inner rear view mirror assembly, the front pillar garnishes LH and RH, the front door opening trims LH and RH, conduct a leak test after the adhesive has hardened, seal any leaks with auto glass sealer, and finally reconnect the cable to the negative battery terminal.

OEM Toyota RAV4 Windshield

Glass Windshield

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

24 Windshields found

View related parts

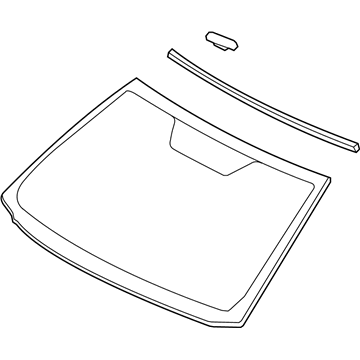

Toyota RAV4 Windshield, Front
Part Number: 56101-0R180
$544.36 MSRP: $797.76
You Save: $253.40 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: PRE-COLLISION SYSTEM-WITHOUT&WINDSHIELD DEICER-WITH
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-42945
$538.89 MSRP: $789.74
You Save: $250.85 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: MOON ROOF-WITH(PANORAMA ROOF)
- Position: Front
- Replaces: 56101-42916
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-42050
$502.68 MSRP: $736.68
You Save: $234.00 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: *LAM,T=4.76,GREEN
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2005 Toyota RAV4 | Base, L, Sport | 4 Cyl 2.4 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-42944
$524.36 MSRP: $768.45
You Save: $244.09 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Position: Front
- Replaces: 56101-42915
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-42020
$502.68 MSRP: $736.68
You Save: $234.00 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: *LAM,T=4.76,GREEN
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-0R401
$507.76 MSRP: $744.13
You Save: $236.37 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Position: Front
- Replaces: 56101-0R400
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-0R271
$463.55 MSRP: $679.33
You Save: $215.78 (32%)
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Position: Front
- Replaces: 56101-0R270
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-0R160
$487.27 MSRP: $714.09
You Save: $226.82 (32%)
ADD TO CART
Product Specifications
- Other Name: Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: PRE-COLLISION SYSTEM-WITH
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2017 Toyota RAV4 | Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-0R190
$484.88 MSRP: $710.60
You Save: $225.72 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: PRE-COLLISION SYSTEM-WITHOUT
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-0R151
$481.83 MSRP: $706.13
You Save: $224.30 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-42969
$539.23 MSRP: $790.24
You Save: $251.01 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Position: Front
- Replaces: 56101-42913, 56101-42942
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-42400
$441.62 MSRP: $647.20
You Save: $205.58 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: PRE-COLLISION SYSTEM-WITHOUT
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-42200
$430.61 MSRP: $631.06
You Save: $200.45 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: *LAM,T=4.76,GREEN
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2015 Toyota RAV4 | LE, Limited, XLE | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-0R010
$474.21 MSRP: $694.97
You Save: $220.76 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: *LAM,T=4.76,GREEN
- Position: Front
- Replaces: 56101-0R011
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2012 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-42936
$478.08 MSRP: $700.63
You Save: $222.55 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: REFER TO PNC 86466D
- Position: Front
- Replaces: 56101-42902
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-42540
$432.58 MSRP: $633.95
You Save: $201.37 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Windshield Glass, Front; Glass, Windshield
- Manufacturer Note: PRE-COLLISION SYSTEM-WITH
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016 Toyota RAV4 | Hybrid Limited, Hybrid XLE, LE, Limited, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-0R311
$518.43 MSRP: $759.77
You Save: $241.34 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Position: Front
- Replaces: 56101-0R310
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-0R411
$556.56 MSRP: $815.64
You Save: $259.08 (32%)
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Position: Front
- Replaces: 56101-0R410
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Windshield, Front
Part Number: 56101-0R100
$408.65 MSRP: $598.88
You Save: $190.23 (32%)
Product Specifications
- Other Name: Glass Sub-Assembly, Windshield; Windshield Glass, Front; Glass, Windshield
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2015 Toyota RAV4 | LE, Limited, XLE | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Glass, Front
Part Number: 56111-42040
Product Specifications
- Other Name: Glass, Windshield; Windshield Glass, Front
- Manufacturer Note: *TL,T=5.3,GREEN
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS

| Page 1 of 2 |Next >

1-20 of 24 Results

Toyota RAV4 Windshield

If you're thinking about purchasing OEM parts for your Toyota RAV4, our website is your one-stop destination. We stock an extensive selection of genuine Toyota RAV4 Windshield at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota RAV4 Windshield Parts Questions & Experts Answers

Windshield, Front
56101-0R010
Q: How to remove and install windshield glass on Toyota RAV4?
A: The windshield glass removal needs a beginning step of disconnecting the negative terminal cable from the battery then waiting 90 seconds to stop Air Bag and seat belt pretensioner activation. First remove the front door opening trim LH by partially detaching the Weather Strip followed by the exact procedure for the RH side. The service technician should remove the front pillar garnish LH and RH followed by the inner rear view mirror assembly, the room light assembly, the assist grip cover and sub-assembly front and visor assemblies LH and RH along with the visor holder before setting the roof headliner somewhat below its original position without complete removal. The removal process starts with separating the front wiper arm head cap from the front wiper arm and blade assemblies LH and RH followed by taking away the front fender to cowl side seals LH and RH and the No. 2 windshield moulding outside LH and RH using a clip and claw tool and applying protective tape to the vehicle body then heating the moulding and tying piano wire to wooden blocks before cutting adhesive tape and dislodging clip and fastener. Apply the identical method to remove and replace the No. 1 windshield outside fastener. Cut the cowl top ventilator louver and the front window moulding inner center carefully with knife tools. The procedure for windshield glass removal begins with disconnecting the connector if the vehicle has a deicer feature before applying protective tape to the body followed by inserting the piano wire between glass and body. Then tie handles to the wire ends and place matchmarks when reinstalling the glass and cut through adhesive before disengaging stoppers and removing the glass using suction cups. You should prepare the windshield glass by removing all damaged adhesive and stoppers while utilizing white gasoline to clean its edges. Remove excess adhesive from the body before cleaning it with the recommended solution. The installer must dry Primer G on glass areas designated for spacers before putting in two new spacers. After applying Primer G to the glass edge and contact surface add the No. 1 windshield glass stopper and window glass adhesive dam then install the windshield outside moulding before waiting for the specified downtime. Further installation steps require sensitive glass placement with suction cups followed by validation of contact areas then the application of matchmarks next to the exposed body and usage of Toyota Genuine Windshield Glass Adhesive or Equivalent as well as installation with proper alignment of matchmarks and protective tape placement until adhesive hardens. Reinstall the cowl top ventilator louver, the No. 2 and No. 1 windshield outside moulding fasteners, the No. 2 windshield moulding outside LH and RH, the front fender to cowl side seals LH and RH, the front wiper arm and blade assemblies LH and RH, the front wiper arm head cap, the roof headlining, the visor holder, the visor assemblies LH and RH, the assist grip sub-assembly, the assist grip cover, the room light assembly, the inner rear view mirror assembly, the front pillar garnishes LH and RH, the front door opening trims LH and RH, conduct a leak test after the adhesive has hardened, seal any leaks with auto glass sealer, and finally reconnect the cable to the negative battery terminal.
