OEM Toyota Matrix Wiper Motor

Toyota Matrix Wiper Motor Parts and Q&A

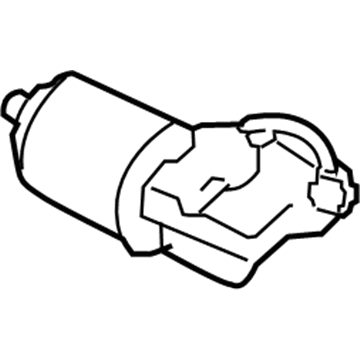

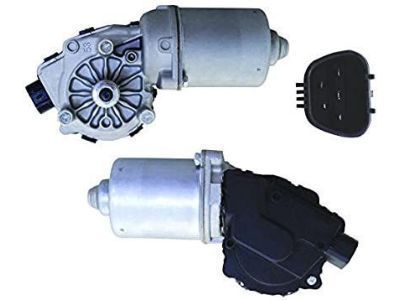

• Front Motor
  85110-02250
  Q: How to remove the front wiper motor on Toyota Matrix?

  A:

  You should begin motor wiper removal by uninstalling the 2 front wiper arm head caps. Start by removing the first nut which frees the front wiper arm assembly with blade attached on the left side followed by the right side through the same procedure. The hood to cowl top seal can be removed by first taking apart the 2 claws followed by the 7 clips. First extract the clip before disengaging twelve claws and guided structures to remove the right cowl top ventilator louver and then use the same procedure on the left side by pulling out the clip and disconnecting seven claws. The cleanup process includes disconnecting the connector followed by removing the two bolts which enables you to extract the windshield wiper motor assembly and link. Using a screwed-up screwdriver the mechanic should disconnect the rod of the windshield wiper link assembly from the crank arm pivot of the windshield wiper motor assembly followed by disconnecting the connector and removing the 3 bolts to finish the removal of this assembly.

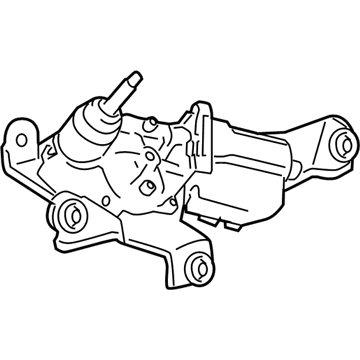

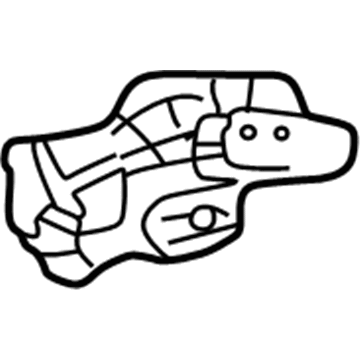

• Wiper Motor, Rear
  85130-01020
  Q: How to install the windshield wiper motor assembly on Toyota Matrix?

  A:

  The installation of windshield wiper motor assembly requires MPs grease applied to the crank arm pivot before tightening two bolts using a torx socket wrench to 7.5 Nm (76 kgf-cm, 66 in-lbf). Before you can install the windshield wiper motor and link assembly you must first connect the pin for a brief period then fasten the assembly with 2 bolts that must be torque to 5.5 Nm (56 kgf-cm, 49 in-lbf), while also connecting the connector. Afterward install the pair of cowl top ventilator louver LH and RH followed by attaching the hood to cowl top seal. When installing the front wiper arm and blade assembly LH users should first clean the wiper arm and pivot serrations before placing the nut in its designated position and tightening it to 21 Nm (214 kgf-cm, 15 ft-lbf) while supporting the arm hinge manually with their hand. Repeat the cleaning and bladed installation sequence for the front wiper arm and blade assembly RH while running wiper operations for body integrity tests while spraying water or washer fluid on the glass. Mount the windshield wiper arm cover as the last step of installation.
