How to remove the Trunk Lid Latch assembly on Toyota Matrix?

Begin the back door lock assembly removal procedure by taking out the back door center garnish followed by the left-hand side back door side garnish and finally the right-hand side back door side garnish. You must remove the back door trim board assembly after you have taken out the back door center garnish. The lock assembly needs its back door lock control cable sub-assembly disconnected followed by rod disconnection according to the illustration and connector unplug. Finish the back door lock assembly uninstallation by removing three bolts that secure it.

How to install the Trunk Lid Latch assembly on Toyota Matrix?

First secure the back door lock assembly through its three bolts while tightening them to 12 Nm (122 kgf-cm, 9 ft-lbf). Secure the connector before attaching the rod according to the displayed illustration. Proceed with linking the back door lock control cable sub-assembly. Conduct the installation process by starting with the back door trim board assembly and proceeding to attach the back door side garnish LH then the back door side garnish RH before completing with the back door center garnish.

OEM Toyota Matrix Trunk Lid Latch

Luggage Compartment Door Lock Assembly

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Trunk Lid Latches found

View related parts

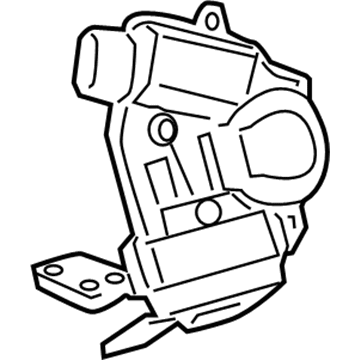

Toyota Matrix Lock Actuator, Rear
Part Number: 69350-02070
$87.06 MSRP: $122.21
You Save: $35.15 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock Assembly, Back Door; Liftgate Latch; Tailgate Lock Actuator; Trunk Lock Actuator; Door Lock Actuator; Lock Assembly; Lock; Lock Assembly, Back Door, W/Courtesy Lamp Switch
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2013 Toyota Matrix | Base, S, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Matrix Lock Actuator, Rear
Part Number: 69110-02020
$205.26 MSRP: $293.07
You Save: $87.81 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock Assembly, Motor Back Door; Liftgate Latch; Tailgate/Trunk/Door Lock Actuator Motor; Lock Assembly; Lock; Lock Assembly, Back Door, W/Courtesy Lamp Switch
- Manufacturer Note: POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2013 Toyota Matrix | Base, S, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts

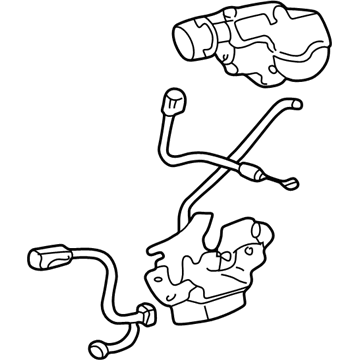

Toyota Matrix Lock Assembly, Rear
Part Number: 69350-02020
$152.15 MSRP: $215.39
You Save: $63.24 (30%)
Product Specifications
- Other Name: Lock Assembly, Back Door; Liftgate Latch, Rear; Door Lock Actuator; Door Lock; Lock; Lock Assembly, Back Door, W/Courtesy Lamp Switch
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2008 Toyota Matrix | Base, XR, XRS | 4 Cyl 1.8 L GAS
View related parts
Toyota Matrix Lock Assembly, Rear
Part Number: 69110-02010
Product Specifications
- Other Name: Lock Assembly, With Motor Back Door; Liftgate Latch, Rear; Door Lock Actuator; Door Lock; Lock; Lock Assembly, Back Door W/Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2008 Toyota Matrix | Base, XR, XRS | 4 Cyl 1.8 L GAS

Toyota Matrix Trunk Lid Latch

Choose genuine Trunk Lid Latch that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Trunk Lid Latch for your Toyota Matrix? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Matrix parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Matrix Trunk Lid Latch Parts and Q&A

Lock Actuator, Rear
69110-02020
Q: How to remove the Trunk Lid Latch assembly on Toyota Matrix?
A:
Begin the back door lock assembly removal procedure by taking out the back door center garnish followed by the left-hand side back door side garnish and finally the right-hand side back door side garnish. You must remove the back door trim board assembly after you have taken out the back door center garnish. The lock assembly needs its back door lock control cable sub-assembly disconnected followed by rod disconnection according to the illustration and connector unplug. Finish the back door lock assembly uninstallation by removing three bolts that secure it.
Lock Actuator, Rear
69350-02070
Q: How to install the Trunk Lid Latch assembly on Toyota Matrix?
A:
First secure the back door lock assembly through its three bolts while tightening them to 12 Nm (122 kgf-cm, 9 ft-lbf). Secure the connector before attaching the rod according to the displayed illustration. Proceed with linking the back door lock control cable sub-assembly. Conduct the installation process by starting with the back door trim board assembly and proceeding to attach the back door side garnish LH then the back door side garnish RH before completing with the back door center garnish.
