OEM Toyota Matrix Pressure Plate

Toyota Matrix Pressure Plate Parts Questions & Experts Answers

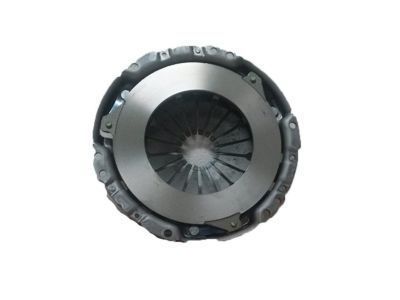

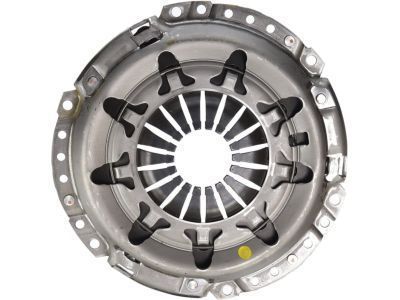

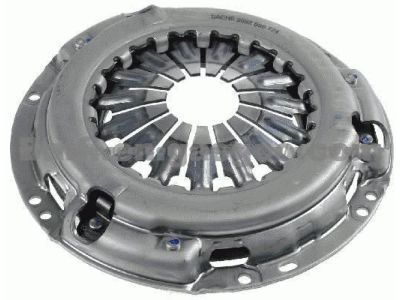

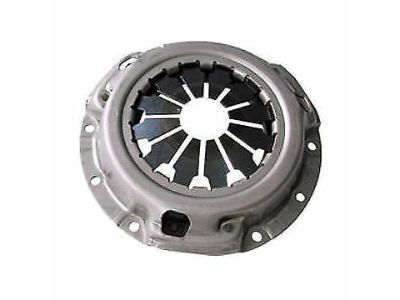

• Pressure Plate
  31210-05043
  Q: How to overhaul the pressure plate on Toyota Matrix?

  A: The first step in pressure plate overhauling requires manual transaxle assembly removal then clutch release fork sub-assembly dismantling and clutch release fork extraction together with clutch release bearing from the transaxle assembly. The maintenance of the clutch release fork begins by removing the clutch release bearing assembly from the clutch release fork. Subsequently, remove the release fork support from the transaxle assembly followed by the release bearing hub clip and clutch release fork boot. Reach the clutch cover assembly after correctly aligning its matchmarks with flywheel sub-assembly marks. Then loosen each bolt set once while monitoring spring tension before extracting all 6 bolts to remove the clutch cover assembly without dropping the Clutch Disc assembly. Continue by taking out the clutch disc assembly without applying oil or foreign objects to the lining part and pressure plate and surface of the flywheel sub-assembly. Use vernier calipers to check the depth of clutch disc assembly rivets which should not exceed 0.3 mm (0.012 inch); if necessary replace the assembly before reinstalling into the correct direction of the transaxle. To check the clutch disc assembly runout, use a dial indicator which should show results less than 0.8 mm (0.031 inch). Replace the clutch disc assembly if required. Vernier calipers show the clutch cover assembly has proper diaphragm spring depth and width of wear when the depth exceeds 0.5 mm (0.020 inch) and the width reaches 6.0 mm (0.236 inch); when this maintenance criteria is not met the clutch cover assembly requires replacement. Check the flywheel sub-assembly runout using a dial indicator and replace it if the measurement exceeds 0.1 mm (0.004 inch). A hand examination of the clutch release bearing for axial force requires replacement of the bearing assembly if necessary. Use Special Service Tool: 09301-00210 to install the clutch disc assembly while ensuring proper direction insert before fitting the clutch cover assembly which requires matching marks along with 6 bolt tightening at 19.1 Nm (195 kgf-cm, 14 ft. lbs.) torque and disc position verification. The clutch cover assembly should undergo inspection and adjustment by using Special Service Tool: 09333-00013 along with a dial indicator to check the diaphragm spring tip alignment; maximum non-alignment must stay below 0.5 mm (0.020 inch). Users must install the transaxle assembly support which receives a torque of 36.8 Nm (375 kgf-cm, 27 ft. lbs.) followed by installation of the release bearing hub clip along with the clutch release fork sub-assembly where release hub grease (Part No. 08887-01806) must be applied before installing the release fork to the release bearing assembly. Clutch spline grease (Part No. 08887-01706) should be applied to the input shaft spline and the bearing installation on the release fork must follow before installing them to the transaxle assembly. Check that the release bearing moves without resistance after completing installation. Completion of the installation process includes insertion of the clutch release fork boot along with the manual transaxle assembly.
