How to install the alternator assembly on Toyota Matrix?

You must attach the wire harness clamp bracket through a bolt that needs 8.4 Nm of torque (86 kgf-cm, 74 in-lbf). Fasten the generator assembly with two bolts at 21 Nm (215 kgf-cm, 16 ft-lbf) for Bolt A and 52 Nm (530 kgf-cm, 38 ft-lbf) for Bolt B. Fit the wire harness at terminal B by torquing the retaining nut to 9.8 Nm while building the generator connector together with the two wire harness clamps. After installing the V-ribbed belt you should put on the engine under cover RH then connect the cable to the negative terminal of the battery.

How to remove and replace the alternator on Toyota Matrix?

The first step to replace or remove the alternator requires disconnecting the negative battery cable. The first step for alternator replacement is to remove the RH engine under cover and the V-ribbed belt. Begin by removing the generator assembly by unscrewing the terminal cap followed by detachment of the wire harness at terminal B using a nut. Then disconnect the generator connector and two harness clamps before removing two bolts securing the generator assembly. The procedure concludes by taking off the bolt while detaching the wire harness clamp bracket.

OEM Toyota Matrix Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Alternators found

View related parts

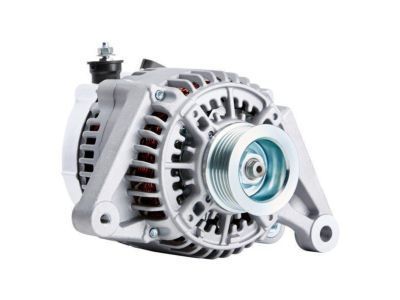

Toyota Matrix Alternator
Part Number: 27060-0D110-84
$195.42 MSRP: $237.30
You Save: $41.88 (18%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator 1Zz
- Replaces: 27060-0D110
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2008 Toyota Matrix | Base, XR | 4 Cyl 1.8 L GAS
View related parts

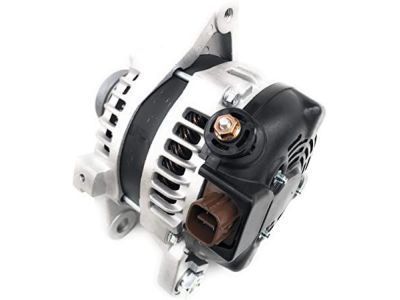

Toyota Matrix Alternator
Part Number: 27060-0T041-84
$260.88 MSRP: $347.78
You Save: $86.90 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator W/R
- Replaces: 27060-0T040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2010 Toyota Matrix | Base | 4 Cyl 1.8 L GAS
View related parts

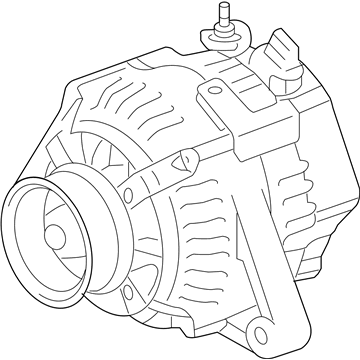

Toyota Matrix Alternator
Part Number: 27060-0H111-84
$300.81 MSRP: $401.33
You Save: $100.52 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator
- Replaces: 27060-0H110, 27060-0H111
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2013 Toyota Matrix | S, XRS | 4 Cyl 2.4 L GAS
View related parts

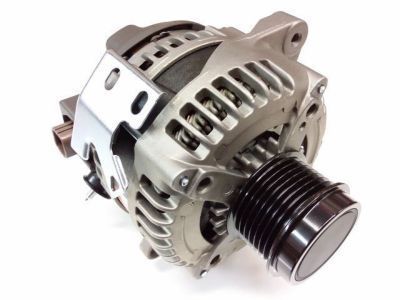

Toyota Matrix Alternator
Part Number: 27060-22090-84
$197.02 MSRP: $279.59
You Save: $82.57 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator W/R
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2006 Toyota Matrix | XRS | 4 Cyl 1.8 L GAS
View related parts
Toyota Matrix Alternator
Part Number: 27060-0T130-84
$254.72 MSRP: $339.52
You Save: $84.80 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator
- Replaces: 27060-0T130
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2013 Toyota Matrix | Base | 4 Cyl 1.8 L GAS

Toyota Matrix Alternator

Choose genuine Alternator that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Alternator for your Toyota Matrix? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Matrix parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Matrix Alternator Parts and Q&A

Alternator
27060-0T041-84
Q: How to install the alternator assembly on Toyota Matrix?
A:
You must attach the wire harness clamp bracket through a bolt that needs 8.4 Nm of torque (86 kgf-cm, 74 in-lbf). Fasten the generator assembly with two bolts at 21 Nm (215 kgf-cm, 16 ft-lbf) for Bolt A and 52 Nm (530 kgf-cm, 38 ft-lbf) for Bolt B. Fit the wire harness at terminal B by torquing the retaining nut to 9.8 Nm while building the generator connector together with the two wire harness clamps. After installing the V-ribbed belt you should put on the engine under cover RH then connect the cable to the negative terminal of the battery.
Alternator
27060-0H111-84
Q: How to remove and replace the alternator on Toyota Matrix?
A:
The first step to replace or remove the alternator requires disconnecting the negative battery cable. The first step for alternator replacement is to remove the RH engine under cover and the V-ribbed belt. Begin by removing the generator assembly by unscrewing the terminal cap followed by detachment of the wire harness at terminal B using a nut. Then disconnect the generator connector and two harness clamps before removing two bolts securing the generator assembly. The procedure concludes by taking off the bolt while detaching the wire harness clamp bracket.
