How to remove the Engine Oil Cooler on Toyota Land Cruiser?

A successful removal of the oil cooler starts by disconnecting the negative battery cable and waiting at least 90 seconds to deactivate the SRS system. The starting step requires you to take off the front fender splash shield sub-assembly LH and RH followed by the No. 1 engine under cover sub-assembly. Engine oil and engine coolant drainage occurs next before the technician removes the V-bank cover sub-assembly. To begin the process remove both the V-belt of the generator and fan and then disconnect the oil filter element and the oil pressure sender gauge assembly. You must disconnect the cooler compressor assembly and take out the 3 bolts while you detach the 4 hoses from the No. 2 water by-pass pipe sub-assembly. The removal process for the No. 1 oil cooler bracket includes disconnecting the ground wire from the cylinder block while removing 2 nuts. To proceed with cleaning the oil filter bracket directly remove two bolts followed by two nuts and the filter bracket along with the two O-rings. The oil cooler assembly removal starts with removing five nuts along with the oil cooler from the oil filter bracket before pulling out the two O-rings leading up to taking out the bolt and oil cooler spacer from the oil filter bracket, together with the gasket.

How to install the Engine Oil Cooler and complete the associated assembly steps on Toyota Land Cruiser?

Installation begins by applying engine oil on a new gasket before installing it to the oil cooler spacer followed by attaching the oil cooler spacer onto the oil filter bracket by tightening a bolt to 10 Nm (102 kgf-cm, 7 ft-lbf). After applying engine oil to two fresh O-rings, place them on the oil cooler and fix the cooler into position using 5 nuts which require torque of 21 Nm (214 kgf-cm, 15 ft-lbf). To install the oil filter bracket, place engine oil on pair of new O-rings which will go into the timing chain cover and then attach the bracket with 2 nuts and 2 bolts by applying 35 Nm (357 kgf-cm, 26 ft-lbf) torque. Fasten the No. 1 oil cooler bracket to the cylinder block with 2 nuts while torquing them to 21 Nm (214 kgf-cm, 15 ft-lbf). Secure the water by-pass hose with 3 bolts that need torquing to 10 Nm (102 kgf-cm, 7 ft-lbf). The work continues with the installation of both the cooler compressor assembly and an oil pressure sender gauge assembly before the oil filter element gets substituted. Put in the fan and generator V belt and place the V-bank cover sub-assembly after. Place the required engine fluids before applying the cable to the negative terminal of the battery. Induction of the No. 1 engine under cover sub-assembly needs to happen together with the installation of front fender splash shield sub-assemblies on both sides before inspecting oil and coolant conditions.

OEM Toyota Land Cruiser Engine Oil Cooler

Oil Cooler

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Engine Oil Coolers found

View related parts
Toyota Land Cruiser Oil Cooler Part Number: 15710-61010
$715.38 MSRP: $1048.39
You Save: $333.01 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cooler Assembly, Oil
- Manufacturer Note: CALIFORNIA SPEC.
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1992 Toyota Land Cruiser | Base | 6 Cyl 4.0 L GAS, 6 Cyl 4.2 L GAS
View related parts
Toyota Land Cruiser Oil Cooler Part Number: 15710-0S010
$616.52 MSRP: $903.52
You Save: $287.00 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cooler Assembly, Oil; Engine Oil Cooler
- Replaces: 15710-38021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2021, 2008-2011 Toyota Land Cruiser | Base, Heritage Edition | 8 Cyl 5.7 L GAS
View related parts

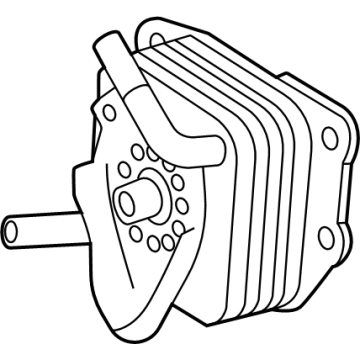

Toyota Land Cruiser Cooler Assembly, Oil Part Number: 15710-25020
$637.86 MSRP: $934.79
You Save: $296.93 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: COOLER ASSY, OIL
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2024-2025 Toyota Land Cruiser | 1958, Base, First Edition | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Land Cruiser Oil Cooler Part Number: 15710-54030
$776.44 MSRP: $1137.88
You Save: $361.44 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cooler Assembly, Oil
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1997 Toyota Land Cruiser | Base | 6 Cyl 4.5 L GAS
View related parts

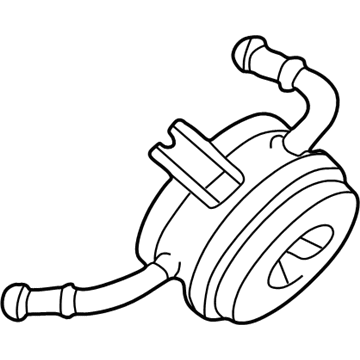

Toyota Land Cruiser Oil Cooler Part Number: 15710-50020
$692.34 MSRP: $1014.64
You Save: $322.30 (32%)
Product Specifications
- Other Name: Cooler Assembly, Oil; Engine Oil Cooler; Oil Cooler Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS

Toyota Land Cruiser Engine Oil Cooler

Choose genuine Engine Oil Cooler that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Engine Oil Cooler for your Toyota Land Cruiser? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Land Cruiser parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Land Cruiser Engine Oil Cooler assists in control of the engine oil temperature to ensure that lubrication is maintained in the engine during strenuous use. Through an oil-to-water exchanger connected to the coolant circuit, the oil is forced through the Engine Oil Cooler to rapidly warm the oil, followed by restricting maximum heat. This arrangement allows the Toyota Land Cruiser to carry heavy weight or long distances uphill without oil thinning or breaking. The Engine Oil Cooler transfers the excess heat to the coolant, which gives it out through the radiator and contributes to the maintenance of viscosity and engine reliability. There are common passages with the cooling system, and thus improper care of the coolant may lead to internal clogging, which reduces thermal efficiency. Leaks in the water part can develop as a result of corrosion, which will result in mixing of oil and coolant, decreasing the efficiency of the Engine Oil Cooler. On hilly hot roads, it is possible that the factory Engine Oil Cooler could reach capacity, yet it is the first line of defense against undue heat of the oil in the Toyota Land Cruiser powertrain. The Toyota Land Cruiser part maintains constant oil temperature, which enhances a longer life of the lubricant and the frequent and demanding usage.

Toyota Land Cruiser Engine Oil Cooler Parts and Q&A

Cooler Assembly, Oil W/Hose
32920-60191
Q: How to remove the Engine Oil Cooler on Toyota Land Cruiser?
A:
A successful removal of the oil cooler starts by disconnecting the negative battery cable and waiting at least 90 seconds to deactivate the SRS system. The starting step requires you to take off the front fender splash shield sub-assembly LH and RH followed by the No. 1 engine under cover sub-assembly. Engine oil and engine coolant drainage occurs next before the technician removes the V-bank cover sub-assembly. To begin the process remove both the V-belt of the generator and fan and then disconnect the oil filter element and the oil pressure sender gauge assembly. You must disconnect the cooler compressor assembly and take out the 3 bolts while you detach the 4 hoses from the No. 2 water by-pass pipe sub-assembly. The removal process for the No. 1 oil cooler bracket includes disconnecting the ground wire from the cylinder block while removing 2 nuts. To proceed with cleaning the oil filter bracket directly remove two bolts followed by two nuts and the filter bracket along with the two O-rings. The oil cooler assembly removal starts with removing five nuts along with the oil cooler from the oil filter bracket before pulling out the two O-rings leading up to taking out the bolt and oil cooler spacer from the oil filter bracket, together with the gasket.
Oil Cooler
15710-0S010
Q: How to install the Engine Oil Cooler and complete the associated assembly steps on Toyota Land Cruiser?
A:
Installation begins by applying engine oil on a new gasket before installing it to the oil cooler spacer followed by attaching the oil cooler spacer onto the oil filter bracket by tightening a bolt to 10 Nm (102 kgf-cm, 7 ft-lbf). After applying engine oil to two fresh O-rings, place them on the oil cooler and fix the cooler into position using 5 nuts which require torque of 21 Nm (214 kgf-cm, 15 ft-lbf). To install the oil filter bracket, place engine oil on pair of new O-rings which will go into the timing chain cover and then attach the bracket with 2 nuts and 2 bolts by applying 35 Nm (357 kgf-cm, 26 ft-lbf) torque. Fasten the No. 1 oil cooler bracket to the cylinder block with 2 nuts while torquing them to 21 Nm (214 kgf-cm, 15 ft-lbf). Secure the water by-pass hose with 3 bolts that need torquing to 10 Nm (102 kgf-cm, 7 ft-lbf). The work continues with the installation of both the cooler compressor assembly and an oil pressure sender gauge assembly before the oil filter element gets substituted. Put in the fan and generator V belt and place the V-bank cover sub-assembly after. Place the required engine fluids before applying the cable to the negative terminal of the battery. Induction of the No. 1 engine under cover sub-assembly needs to happen together with the installation of front fender splash shield sub-assemblies on both sides before inspecting oil and coolant conditions.
