How to install the front and rear Window Motor assemblies for the front and rear doors on Toyota Highlander?

The installation of front power window regulator motor assembly requires placing the regulator arm beneath the intermediate position before fastening the motor sub-assembly with 3 screws using a "TORX" driver (T25) at 5.4 Nm (55 kgf-cm, 48 in-lbf). The new rear window regulator makes use of self-tapping screws to create new installation holes automatically. Install these components sequentially: front door window regulator sub-assembly followed by front door glass sub-assembly then front door service hole cover and front door inner glass Weather Strip next to be installed is front door trim board sub-assembly followed by courtesy light assembly then assist grip cover after which front armrest upper base panel and front door inside handle bezel plug should be added and finally front door lower frame bracket garnish is installed. Attach the rear power window regulator motor assembly to its relevant spots using a "TORX" driver (T25) so the regulator arm stays below the intermediate point while tightening 3 screws to 5.4 Nm (55 kgf-cm, 48 in-lbf). You must use the positive lead of the battery on terminal 1 and the negative lead on terminal 2 of the rear power window regulator motor assembly to set the lift arm in the desired position. The next steps involve installing the rear door window regulator sub-assembly followed by the rear door glass sub-assembly, rear door quarter window glass, rear door window division bar sub-assembly as well as the rear door glass run, rear door Weather Strip, rear door service hole cover, rear door inner glass Weather Strip, rear door trim board sub-assembly, door assist grip cover, rear door armrest upper base panel, and rear door inside handle bezel plug. Complete the procedure by connecting the negative battery terminal and remember to initialize the power window control system for the driver side when needed.

How to remove the Window Motor on Toyota Highlander?

The first step in removing the power window regulator motor requires disconnecting the battery negative terminal then waiting for 90 seconds to avoid Air Bag deployment. Initialization procedures for systems may be necessary after connecting the cable. You must first disassemble several components starting with the front door lower frame bracket garnish followed by inside handle bezel plug and then armrest upper base panel together with assist grip cover and courtesy light assembly and trim board sub-assembly after which you must remove inner glass Weather Strip and service hole cover and glass sub-assembly. The front door window regulator sub-assembly removal must occur first followed by using a T25 "TORX" driver to remove the 3 screws from the front power window regulator motor assembly. The removal of inside handle bezel plug together with armrest upper base panel and assist grip cover enables access to trim board sub-assembly and inner glass Weather Strip as well as service hole cover and upper Weather Strip portion to detach rear door window division bar sub-assembly. The procedure continues by taking out the following items: recessed rear door glass run, the window division bar sub-assembly, quarter window glass, glass sub-assembly, and rear door window regulator sub-assembly. Finally the removal of rear power window regulator motor assembly requires battery connections of positive (+) lead to terminal 2 and negative (-) lead to terminal 1 on the motor assembly to position the lift arm followed by using a "TORX" driver (T25) to remove its 3 screws.

OEM Toyota Highlander Window Motor

Window Lift Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Window Motors found

View related parts

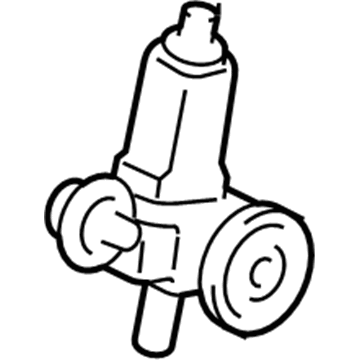

Toyota Highlander Window Motor
Part Number: 85720-AE010
$316.64 MSRP: $452.09
You Save: $135.45 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Motor, Center Left, Front Left, Rear Left, Rear Right; Door Lock Actuator; Motor; Power Window Regulator Assembly for Front Driver, Passenger, and Driver Side.
- Replaces: 85720-35140
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2019 Toyota Highlander | Base, Hybrid, Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, Plus, SE, Sport, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts

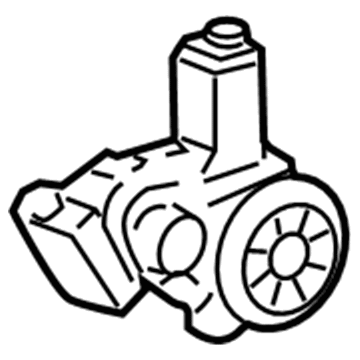

Toyota Highlander Window Motor, Driver Side
Part Number: 85720-0E060
$333.53 MSRP: $476.20
You Save: $142.67 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Front Left; Motor Assembly, Power Window Regulator, Driver Side
- Position: Driver Side
- Replaces: 85720-0T030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts

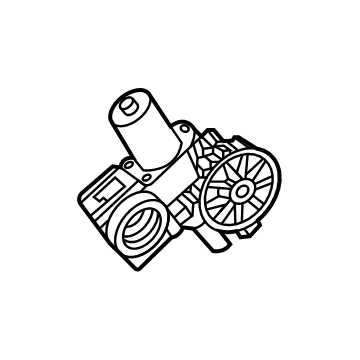

Toyota Highlander Window Motor
Part Number: 85710-42070
$316.64 MSRP: $452.09
You Save: $135.45 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Front Right, Rear Left, Rear Right; Door Lock Actuator Motor; Motor; Power Window Regulator Assemblies for Passenger and Driver Side.
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Window Motor
Part Number: 85720-32150
$316.64 MSRP: $452.09
You Save: $135.45 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Front Left, Rear Left, Rear Right; Motor; Power Window Regulator Assemblies for Passenger and Driver Side.
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Window Motor, Driver Side
Part Number: 85720-12490
$354.68 MSRP: $519.78
You Save: $165.10 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Front Left; Door Lock Actuator Motor; Motor; Motor Assembly, Power Window Regulator, Driver Side
- Position: Driver Side
- Replaces: 85720-48070, 85720-47040, 85720-60280, 85720-75010, 85720-30340
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Window Motor, Driver Side
Part Number: 85720-0R080
$333.53 MSRP: $476.20
You Save: $142.67 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Rear Left; Motor Assembly, Power Window Regulator, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2023 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Window Motor, Driver Side
Part Number: 85720-0E120
$201.65 MSRP: $287.92
You Save: $86.27 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Front Left; Motor Assembly, Power Window Regulator, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2023 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Window Motor, Driver Side
Part Number: 85720-0E070
$333.53 MSRP: $476.20
You Save: $142.67 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Rear Left; Motor Assembly, Power Window Regulator, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Window Motor
Part Number: 85710-AE010
$316.64 MSRP: $452.09
You Save: $135.45 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Center Right, Front Right, Rear Left, Rear Right, Right; Motor; Power Window Regulator Assembly for Front Passenger, Driver, and Passenger Side.
- Replaces: 85710-35180
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2019 Toyota Highlander | Base, Hybrid, Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, Plus, SE, Sport, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Window Motor, Passenger Side
Part Number: 85710-0R020
$333.53 MSRP: $476.20
You Save: $142.67 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Rear Right; Motor Assembly, Power Window Regulator, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2023 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Window Motor, Passenger Side
Part Number: 85710-0E100
$201.65 MSRP: $287.92
You Save: $86.27 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Front Right; Motor Assembly, Power Window Regulator, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2023 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Window Motor, Passenger Side
Part Number: 85710-0E050
$333.53 MSRP: $476.20
You Save: $142.67 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Rear Right; Motor Assembly, Power Window Regulator, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Window Motor, Passenger Side
Part Number: 85710-0E040
$333.53 MSRP: $476.20
You Save: $142.67 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Front Right; Motor Assembly, Power Window Regulator, Passenger Side
- Position: Passenger Side
- Replaces: 85710-0T030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Window Motor, Driver Side
Part Number: 85720-42080
$407.34 MSRP: $596.96
You Save: $189.62 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Front Left; Door Lock Actuator Motor; Motor; Motor Assembly, Power Window Regulator, Driver Side; Power Window Motor
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Window Motor, Driver Side
Part Number: 85720-02450
$437.08 MSRP: $640.54
You Save: $203.46 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Power Window Regulator; Power Window Motor, Front Left; Door Lock Actuator Motor; Motor; Motor Assembly, Power Window Regulator, Driver Side; Power Window Motor
- Position: Driver Side
- Replaces: 85720-0T010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Highlander | Base, Limited, Plus, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS

Toyota Highlander Window Motor

Choose genuine Window Motor that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Window Motor for your Toyota Highlander? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Highlander parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Highlander Window Motor is one of the most important components and It illustrates Toyota's product standard. This window motor helps in the functioning of windows of different Highlander models through facilitating the mechanism of up and down movement of the windows with just a touch of a button on the car's interior. Its primary use is to increase both productivity as well as occupant's safety through the introduction of fresh air, with the structure's ability to shield the inhabitants from unfavorable weather conditions. Specified Toyota Highlander Window Motor is universal for five and seven-position models and created sturdy for daily usage. However, they are mechanical units and can degrade over time, thus present signs like slow movement or complete non responsiveness like the window motor. It is recommended that Toyota Highlander Window Motor be checked for functionality and serviced often; using quality used or OEM parts can help in rewiring it for functionality when it has failed. Significantly, the Toyota Highlander Window Motor can be noted in the automobile industry as some model window motors are built to be more rugged and compatible with some sophisticated features like the Toyota Hybrid Synergy Drive system which is used in hybrid models to make the vehicle more efficient. Due to its reliability, efficiency and strength, the Toyota Highlander Window Motor is another great creation from Toyota, making all the journeys in the Highlander vehicle comfortable and secure for all the passengers.

Toyota Highlander Window Motor Parts and Q&A

Window Motor
85710-AE010
Q: How to install the front and rear Window Motor assemblies for the front and rear doors on Toyota Highlander?
A:
The installation of front power window regulator motor assembly requires placing the regulator arm beneath the intermediate position before fastening the motor sub-assembly with 3 screws using a "TORX" driver (T25) at 5.4 Nm (55 kgf-cm, 48 in-lbf). The new rear window regulator makes use of self-tapping screws to create new installation holes automatically. Install these components sequentially: front door window regulator sub-assembly followed by front door glass sub-assembly then front door service hole cover and front door inner glass Weather Strip next to be installed is front door trim board sub-assembly followed by courtesy light assembly then assist grip cover after which front armrest upper base panel and front door inside handle bezel plug should be added and finally front door lower frame bracket garnish is installed. Attach the rear power window regulator motor assembly to its relevant spots using a "TORX" driver (T25) so the regulator arm stays below the intermediate point while tightening 3 screws to 5.4 Nm (55 kgf-cm, 48 in-lbf). You must use the positive lead of the battery on terminal 1 and the negative lead on terminal 2 of the rear power window regulator motor assembly to set the lift arm in the desired position. The next steps involve installing the rear door window regulator sub-assembly followed by the rear door glass sub-assembly, rear door quarter window glass, rear door window division bar sub-assembly as well as the rear door glass run, rear door Weather Strip, rear door service hole cover, rear door inner glass Weather Strip, rear door trim board sub-assembly, door assist grip cover, rear door armrest upper base panel, and rear door inside handle bezel plug. Complete the procedure by connecting the negative battery terminal and remember to initialize the power window control system for the driver side when needed.
Window Motor
85720-AE010
Q: How to remove the Window Motor on Toyota Highlander?
A:
The first step in removing the power window regulator motor requires disconnecting the battery negative terminal then waiting for 90 seconds to avoid Air Bag deployment. Initialization procedures for systems may be necessary after connecting the cable. You must first disassemble several components starting with the front door lower frame bracket garnish followed by inside handle bezel plug and then armrest upper base panel together with assist grip cover and courtesy light assembly and trim board sub-assembly after which you must remove inner glass Weather Strip and service hole cover and glass sub-assembly. The front door window regulator sub-assembly removal must occur first followed by using a T25 "TORX" driver to remove the 3 screws from the front power window regulator motor assembly. The removal of inside handle bezel plug together with armrest upper base panel and assist grip cover enables access to trim board sub-assembly and inner glass Weather Strip as well as service hole cover and upper Weather Strip portion to detach rear door window division bar sub-assembly. The procedure continues by taking out the following items: recessed rear door glass run, the window division bar sub-assembly, quarter window glass, glass sub-assembly, and rear door window regulator sub-assembly. Finally the removal of rear power window regulator motor assembly requires battery connections of positive (+) lead to terminal 2 and negative (-) lead to terminal 1 on the motor assembly to position the lift arm followed by using a "TORX" driver (T25) to remove its 3 screws.
