OEM Toyota FJ Cruiser Throttle Body

Toyota FJ Cruiser Throttle Body Parts Questions & Experts Answers

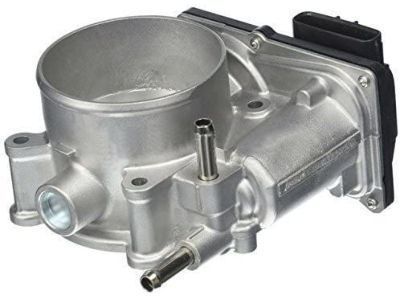

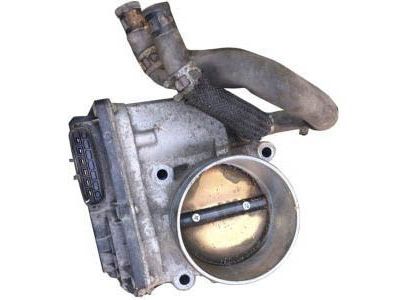

• Throttle Body
  22030-0P010
  Q: How to install the throttle body with motor body assembly on Toyota FJ Cruiser?

  A: The sequence for installing the throttle body with motor body assembly requires starting with threading the No. 4 and No. 5 water by-pass hoses through the throttle body. After installing a new gasket you must fasten the throttle with motor body through 4 bolts by applying torque of 11 Nm (112 kgf-cm, 9 ft-lbf). Connect the throttle motor connector before establishing the connection between the No. 4 and No. 5 water by-pass hoses. Before mounting the air cleaner you must place the cleaner on the throttle body and attach the air cleaner hose which you need to fix in place with 2 bolts at 8.0 Nm torque setting (82 kgf-cm, 71 in-lbf). The technician must connect the mass air flow meter connector, fasten the 2 wire harness clamps and link the vacuum hose and No. 2 ventilation hose. Secure the cable onto the negative battery terminal while torquing it to 3.9 Nm (40 kgf-cm, 35 in-lbf). The maintenance work requires adding engine coolant while inspecting for any fluid leakage. Shift to the end of the procedure by securing the V-bank cover with 2 nuts torqued to 7.5 Nm (76 kgf-cm, 66 in-lbf).
