OEM Toyota FJ Cruiser Fuel Injector

Toyota FJ Cruiser Fuel Injector Parts Questions & Experts Answers

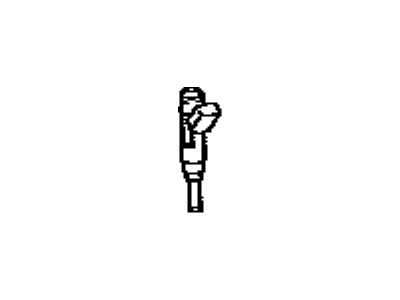

• Injector
  23209-39015
  Q: How to remove the fuel injector on Toyota FJ Cruiser?

  A: Before removing the 1GR-FE fuel injector users must discharge fuel system pressure while disconnecting the negative cable terminal. Both engine coolant draining and V-bank cover together with air cleaner assembly removal need to happen before proceeding. The Throttle Body bracket is first detached by unbolt the two pieces before removing the oil baffle plate requires detaching one bolt. The next step involves removing both the No. 1 surge tank stay and the No. 2 surge tank stay after unbolted with their respective two bolts. The intake air surge tank requires removal by disconnecting its 2 water by-pass hoses as well as the fuel vapor feed hose and ventilation hose and the 2 VSV connectors and throttle body with motor connector. Use a socket hexagon wrench 8 to disconnect the 4 bolts which secure both the intake air surge tank and gasket while also removing two nuts simultaneously. Detach the hose clamp and wire harness clamps before you separate all those items from each other. The fuel pipe disconnection requires removing of the No. 2 clamp, folding the tube connector, and extracting the pipe from the delivery pipe without letting contaminants affect the connector. Execute this protocol once more for the No. 2 fuel pipe sub-assembly. Remove the fuel delivery pipe sub-assembly with care when you disconnect the 6 fuel injector connectors and remove the 6 bolts to get the fuel delivery pipe with the entire set of 6 fuel injectors. After disconnecting the 6 injectors from the delivery pipe remove them entirely.
