OEM Toyota FJ Cruiser Steering Angle Sensor

Toyota FJ Cruiser Steering Angle Sensor Parts Questions & Experts Answers

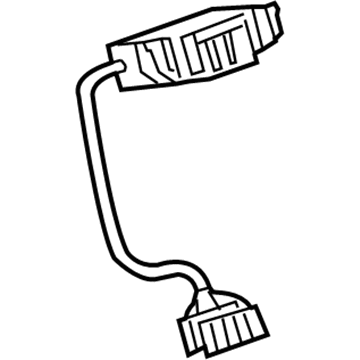

• Angle Sensor
  89245-35020
  Q: How to service the Steering Angle Sensor on Toyota FJ Cruiser?

  A: All service procedures on the Steering Angle Sensor must start with the implementation of Restraint Systems Service Precautions. Detach the negative cable from the battery terminal while orienting both wheels directly forward. The necessary steps include taking off the Steering Wheel Cover Lower No.3, Steering Wheel Cover Lower No.2, Steering Pad, Steering Wheel Assembly, Lower Steering Column Cover, Upper Steering Column Cover, and Spiral Cable. Unplug the steering angle sensor connector before opening its claw mechanism to remove the steering angle sensor connector and harness. After disengaging the two steering angle sensor claws customers can remove the sensor from the system. To install this component you should attach the steering angle sensor after connecting the harness to its connector then joining both connector parts. To proceed insert the Spiral Cable followed by the Upper Steering Column Cover and Lower Steering Column Cover before adjusting the Spiral Cable. Proceed with installing the Steering Wheel Assembly while checking the steering wheel center point and add the Steering Pad followed by Steering Wheel Cover Lower No.2 and Steering Wheel Cover Lower No.3. The connection between the cable and negative battery terminal requires a torque setting of 3.9 N.m (40 kgf.cm, 35 in.lbf). End your procedure with two steps: first verify the Steering Pad and then perform the initialization step together with SRS warning light verification.
