OEM Toyota FJ Cruiser Back Up Light

Toyota FJ Cruiser Back Up Light Parts and Q&A

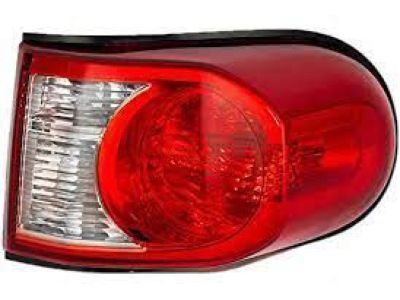

• Tail Lamp, Rear Passenger Side
  81551-35341
  Q: How to service and repair the Back Up Light on Toyota FJ Cruiser?

  A:

  Start by detaching the rear combination light gasket then replace it with a new one whenever it adheres to the body as part of the Back Up Light service and repair process. You should start by following instructions to remove the tail and stop light bulb through a combination of turning the rear combination light socket and bulb in the indicated direction followed by taking out the bulb from its socket. The step for removing both back up and rear turn signal light bulbs follows the same method by turning sockets and bulbs in proper directions followed by bulb extraction from the sockets.

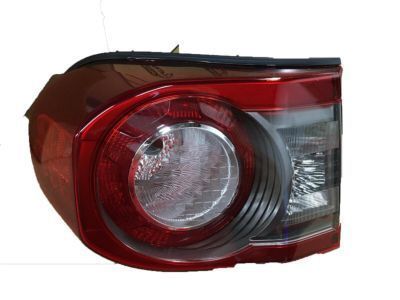

• Tail Lamp, Rear Driver Side
  81561-35301
  Q: How to remove the Back Up Light on Toyota FJ Cruiser?

  A:

  Begin the Back Up Light removal process by disconnecting the cable from the negative battery terminal. The steps begin with taking off the rear seatback board carpet assembly on the right side then moving to remove the rear seatback assembly RH. Take out the rear seatback board carpet assembly on the left side and also the rear seatback assembly on the left side. Uninstall the rear floor board together with its mat support plate and the mat assembly. Start by taking off the luggage hold belt striker assembly before removing both front door scuff plates and their counterparts at the back of the vehicle. To proceed in deinstallation move the front door opening trim Weather Strips, replace the deck side garnish assembly w/ Woofer, speaker mounting cover, and amplifier box speaker assembly (w/ Woofer). The next step is to take off the package holder net hook plus associated quarter trim pocket tray and side trim cover without Woofer. Take out the lap belt outer anchor cover and both rear seat outer belt assemblies from the right and left-hand side. After taking off the 3 rear deck trim cover (and power outlet socket) nuts you can disconnect its 3 connectors and remove all 3 trim side panels to take out the rear combination light assembly through its 3 nuts and wire separation.
