How to install the windshield wiper motor assembly and related components on Toyota Camry?

Assemble the windshield wiper motor by applying 3 bolts that require 5.4 Nm of torque before moving the crank arm to the specified position and applying MP grease to the pivot. Attach the No. 2 windshield wiper link rod to the prominent point of the windshield wiper motor assembly base. The windshield wiper motor and link assembly needs 4 bolts tightened first to 77 kgf-cm (7.5 Nm) using the specified sequence followed by connector connection. Position the 4 claws of the cowl top ventilator louver sub-assembly and fasten it using 2 clips. Insert the claw into both front fender to cowl side seal locations before securing their right and left assemblies. Before attaching the wiper arm and blade assembly LH at the front position, you need to operate the wiper and position the windshield wiper motor precisely. Then clean the wiper arm serrations and wiper pivot serrations with a wire brush before fastening them with a nut tightened to 20 Nm (204 kgf-cm, 15 ft-lbf) while securely gripping the arm hinge. Rephrase the installation of the RH wiper arm and blade assembly after you test the LH component correctly works by moving the wipers during washer fluid spraying.

How to remove the front wiper motor on Toyota Camry?

The front wiper motor removal process begins with removing the front wiper arm and blade assembly from both LH (left-hand side) and RH (right-hand side) by disconnecting the nut. Move on to remove the front wiper arm and blade assembly also on the right-hand side. Unfasten the claw before extracting the front fender to cowl side seal LH and then proceed to extract the front fender to cowl side seal RH. The next step requires removing the cowl top ventilator louver sub-assembly by disassembling its 2 clips then unfastening the 4 claws. Unplug the connector followed by removal of four bolts which hold the windshield wiper motor and link assembly in place. The separation of the windshield wiper motor assembly requires using a screwdriver on the No. 2 windshield wiper link rod at its crank arm pivot point on the front wiper motor assembly while taping the screwdriver tip first. Use an indicated movement of the crank arm to proceed with removing three bolts which separate the windshield wiper motor assembly from the windshield wiper link assembly.

OEM Toyota Camry Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

22 Wiper Motors found

View related parts

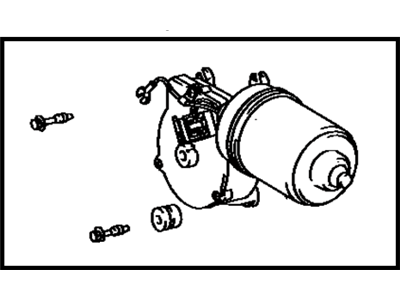

Toyota Camry Wiper Motor, Front
Part Number: 85110-06060
$218.19 MSRP: $311.53
You Save: $93.34 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Front Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2011 Toyota Camry | Base, CE, Hybrid, LE, SE, XLE | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

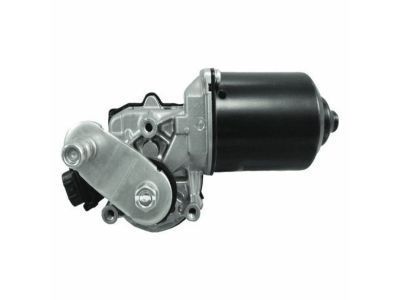

Toyota Camry Wiper Motor, Front
Part Number: 85110-AA030
$198.04 MSRP: $282.76
You Save: $84.72 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Front Motor; Motor Assembly, Windshield Wiper
- Manufacturer Note: DENSO
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2006 Toyota Camry | Base, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts

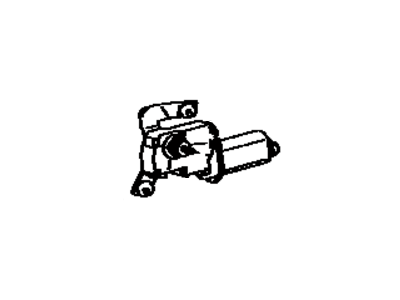

Toyota Camry Front Motor
Part Number: 85110-AA020
$191.51 MSRP: $273.44
You Save: $81.93 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Motor; Motor Assembly, Windshield Wiper; Wiper Motor
- Manufacturer Note: NIPPON DENSO
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-2001 Toyota Camry | CE, LE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts

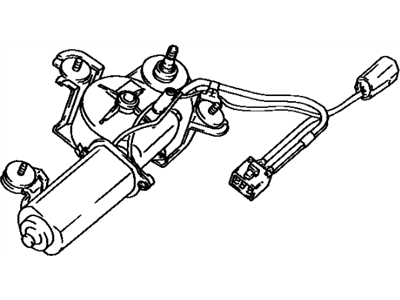

Toyota Camry Wiper Motor, Front
Part Number: 85110-06120
$192.80 MSRP: $275.27
You Save: $82.47 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Front Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2014 Toyota Camry | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, SE, SE Sport, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

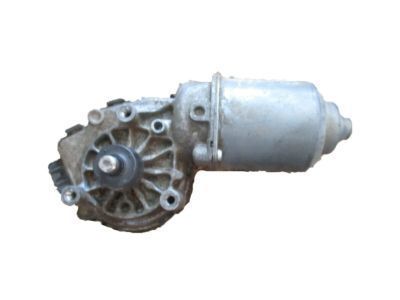

Toyota Camry Wiper Motor, Front
Part Number: 85110-06190
$151.68 MSRP: $214.72
You Save: $63.04 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015-2017 Toyota Camry | Hybrid LE, Hybrid SE, Hybrid XLE, LE, SE, Special Edition, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

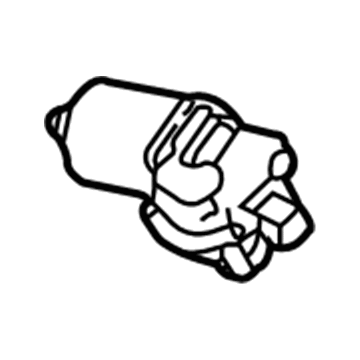

Toyota Camry Front Motor
Part Number: 85110-06030
$187.38 MSRP: $267.54
You Save: $80.16 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Motor; Motor Assembly, Windshield Wiper; Wiper Motor
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Camry | CE, LE, SE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts

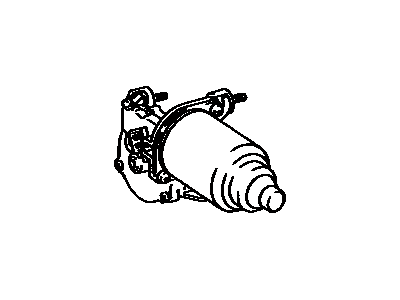

Toyota Camry Wiper Motor, Front
Part Number: 85110-33230
$214.12 MSRP: $305.71
You Save: $91.59 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Front Motor
- Position: Front
- Replaces: 85110-33220
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2006 Toyota Camry | Base, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts

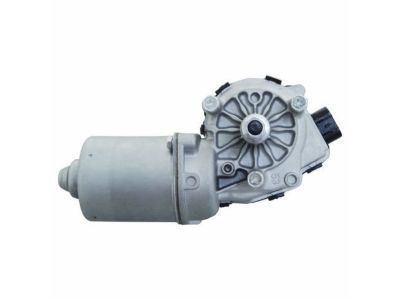

Toyota Camry Wiper Motor, Front
Part Number: 85110-33432
$156.03 MSRP: $220.88
You Save: $64.85 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Front Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Replaces: 85110-33430
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018-2024 Toyota Camry | Hybrid LE, Hybrid SE, Hybrid SE Nightshade, Hybrid XLE, Hybrid XSE, L, LE, SE, SE Nightshade, TRD, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Front Motor
Part Number: 85110-AA010
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Motor; Motor Assembly, Windshield Wiper; Wiper Motor
- Manufacturer Note: ITTA-ESNA
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-2001 Toyota Camry | CE, LE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Wiper Motor, Front
Part Number: 85110-33050
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Front Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2011 Toyota Camry | Base, CE, Hybrid, LE, SE, XLE | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Front Motor
Part Number: 85110-32120
Product Specifications
- Other Name: Motor Assembly, Wiper; Wiper Motor; Motor; Motor Assembly, Windshield Wiper
- Replaces: 85110-32040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota Camry | DLX, LE | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Toyota Camry Front Motor
Part Number: 85110-33030
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Wiper Motor; Motor
- Position: Front
- Replaces: 85110-33020, 85110-06010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1993 Toyota Camry | DLX, DX, LE, SE, XLE | 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Rear Motor
Part Number: 85110-32161
Product Specifications
- Other Name: Motor Assembly, Wiper; Wiper Motor; Motor; Motor Assembly, Rear Wiper
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1991 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Rear Motor
Part Number: 85110-32260
Product Specifications
- Other Name: Motor Assembly, Wiper; Wiper Motor; Motor; Motor Assembly, Rear Wiper
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1987-1988 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Wiper Motor
Part Number: 85110-32131
Product Specifications
- Other Name: Motor Assembly, Wiper; Rear Motor; Motor Assembly, Rear Wiper
- Replaces: 85110-32130, 85110-32140
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985 Toyota Camry | DLX, LE | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Toyota Camry Wiper Motor, Front
Part Number: 85110-AA040
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Front Motor; Motor Assembly, Windshield Wiper
- Manufacturer Note: VALEO
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2006 Toyota Camry | Base, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts
Toyota Camry Front Motor
Part Number: 85110-33110
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Wiper Motor; Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Replaces: 85110-06020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1996 Toyota Camry | DX, LE, SE, XLE | 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Wiper Motor
Part Number: 85110-32242
Product Specifications
- Other Name: Motor Assembly, Wiper; Front Motor; Motor; Motor Assembly, Windshield Wiper
- Replaces: 85110-22380, 85110-32240, 85110-22381, 85110-03010, 85110-32241, 85110-22310
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1987-1991 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Rear Motor
Part Number: 85130-06011
Product Specifications
- Other Name: Motor Assembly, Rear Wiper; Wiper Motor; Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1996 Toyota Camry | DLX, DX, LE, SE, XLE | 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Wiper Motor, Rear
Part Number: 85110-32030
Product Specifications
- Other Name: Motor Assembly, Rear Wiper; Rear Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984 Toyota Camry | DLX, LE | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L GAS

| Page 1 of 2 |Next >

1-20 of 22 Results

Toyota Camry Wiper Motor

Choose genuine Wiper Motor that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Wiper Motor for your Toyota Camry? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Camry parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

As an important component of Camry cars, the Wiper Motor helps the wipers to tackle the rains and other formations on the screen, so as to afford the drivers a clear view of the roads ahead. This electric motor works at different speeds in that; drivers can control the wiper through weather conditions by changing its speed. Wiper Motors for Toyota Camry are offered by keys as new and refurbished. New motors which are purchased are original motors from the manufacturing companies while rewound motors are motors that have been used before, their parts replaced with new ones to meet the present standards. Such diversity allows the owner to have new parts or ordinary parts that are still serviceable but cheaper than new ones.

Toyota Camry Wiper Motor Parts and Q&A

Wiper Motor, Front
85110-33050
Q: How to install the windshield wiper motor assembly and related components on Toyota Camry?
A:
Assemble the windshield wiper motor by applying 3 bolts that require 5.4 Nm of torque before moving the crank arm to the specified position and applying MP grease to the pivot. Attach the No. 2 windshield wiper link rod to the prominent point of the windshield wiper motor assembly base. The windshield wiper motor and link assembly needs 4 bolts tightened first to 77 kgf-cm (7.5 Nm) using the specified sequence followed by connector connection. Position the 4 claws of the cowl top ventilator louver sub-assembly and fasten it using 2 clips. Insert the claw into both front fender to cowl side seal locations before securing their right and left assemblies. Before attaching the wiper arm and blade assembly LH at the front position, you need to operate the wiper and position the windshield wiper motor precisely. Then clean the wiper arm serrations and wiper pivot serrations with a wire brush before fastening them with a nut tightened to 20 Nm (204 kgf-cm, 15 ft-lbf) while securely gripping the arm hinge. Rephrase the installation of the RH wiper arm and blade assembly after you test the LH component correctly works by moving the wipers during washer fluid spraying.
Wiper Motor, Front
85110-06060
Q: How to remove the front wiper motor on Toyota Camry?
A:
The front wiper motor removal process begins with removing the front wiper arm and blade assembly from both LH (left-hand side) and RH (right-hand side) by disconnecting the nut. Move on to remove the front wiper arm and blade assembly also on the right-hand side. Unfasten the claw before extracting the front fender to cowl side seal LH and then proceed to extract the front fender to cowl side seal RH. The next step requires removing the cowl top ventilator louver sub-assembly by disassembling its 2 clips then unfastening the 4 claws. Unplug the connector followed by removal of four bolts which hold the windshield wiper motor and link assembly in place. The separation of the windshield wiper motor assembly requires using a screwdriver on the No. 2 windshield wiper link rod at its crank arm pivot point on the front wiper motor assembly while taping the screwdriver tip first. Use an indicated movement of the crank arm to proceed with removing three bolts which separate the windshield wiper motor assembly from the windshield wiper link assembly.
