How to install an A/C Condenser and ensure proper connections on Toyota Avalon?

The installation requires 4 bolts to fasten the cooler condenser assembly while torquing them to 5.0 Nm (51 kgf-cm, 44 in-lbf). The new unit needs 40 cc (1.4 fl. oz.) of ND-8 or equivalent compressor oil when installing a fresh condenser. Before assembly start by removing the attached vinyl tape from both the air conditioner tube and the cooler condenser assembly connection. After that apply ND-oil 8 or equivalent compressor oil to a new O-ring along with the fitting surface of the hose joint before installing the O-ring on the air conditioning tube assembly. The air conditioner tube and accessory must be installed onto the cooler condenser assembly through a bolt torque procedure at 9.8 Nm (100 kgf-cm, 87 in-lbf). The installation process for cooler refrigerant discharge hose No.1 requires removal of vinyl tape from both the pipe and cooler condenser assembly connection followed by application of ND-OIL 8 or equivalent compressor oil on a new O-ring and pipe joint surface before ring installation and pipe torque application of 9.8 Nm (100 kgf-cm, 87 in-lbf). Attach the hood lock assembly along with the radiator support upper. Before completion you must gas the system followed by an engine warming procedure for refrigerant leak detection.

How to remove the A/C Condenser on Toyota Avalon?

In order to detach the HVAC condenser operators must first drain refrigerant from the refrigeration system. Next, remove the hvac condenser installation by detaching Air Cleaner Inlet No.2 and then Air Cleaner Inlet No.1 The first task involves removing the radiator support upper while disconnecting the hood lock assembly. Unite Cooler Refrigerant Discharge Hose No.1 from the cooler condenser assembly through bolt removal and by detaching it while also removing the O-ring. Use vinyl tape to seal off all disconnected system parts in order to block both moisture and outside materials entering the components. Disconnect the air conditioner tube and accessory by removing the bolt while detaching the unit from the cooler condenser assembly and sealing its openings with vinyl tape. Deadline the cooler condenser assembly removal by removing its 4 securing bolts.

OEM Toyota Avalon A/C Condenser

Air Conditioning Condenser

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 A/C Condensers found

View related parts

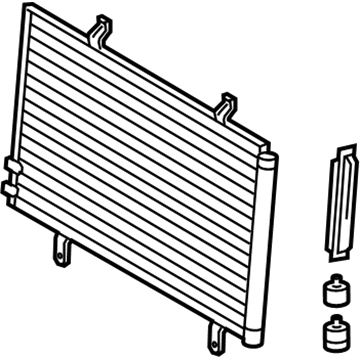

Toyota Avalon Condenser Assembly
Part Number: 884A0-06020
$294.73 MSRP: $420.81
You Save: $126.08 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly, Support; A/C Condenser; Condenser; Condenser Assembly, Cooler
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota Avalon | Limited, Touring, TRD, XLE, XSE, XSE Nightshade | 6 Cyl 3.5 L GAS
View related parts

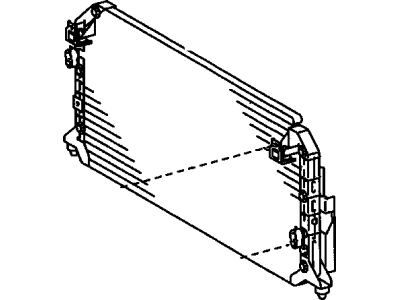

Toyota Avalon Condenser
Part Number: 88460-AZ036
$127.86 MSRP: $180.72
You Save: $52.86 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly; A/C Condenser
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Condenser Assembly
Part Number: 88460-AZ001
$139.60 MSRP: $197.31
You Save: $57.71 (30%)
ADD TO CART
Product Specifications
- Other Name: A/C Condenser; Condenser
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2012 Toyota Avalon | Base, Limited, Touring, XL, XLS | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Condenser
Part Number: 88460-07070
$336.67 MSRP: $480.70
You Save: $144.03 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly; A/C Condenser
- Replaces: 88460-07060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2006 Toyota Avalon | Limited, Touring, XL, XLS | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Condenser Assembly
Part Number: 884A0-06030
$295.32 MSRP: $421.64
You Save: $126.32 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly, Support; A/C Condenser; Condenser; Condenser Assembly, Cooler
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota Avalon | Hybrid Limited, Hybrid XLE, Hybrid XSE, Hybrid XSE Nightshade, Limited, Touring, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Condenser Assembly
Part Number: 88460-33130
$226.48 MSRP: $323.36
You Save: $96.88 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Condenser; Condenser; Condenser Assembly, Cooler
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota Avalon | Hybrid Limited, Hybrid XLE, Hybrid XLE Plus, Hybrid XLE Premium, Hybrid XLE Touring | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Avalon Condenser
Part Number: 88460-07010
$315.46 MSRP: $450.40
You Save: $134.94 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly; A/C Condenser; Condenser Assembly, Cooler
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Condenser Assembly
Part Number: 88460-06230
$284.83 MSRP: $406.68
You Save: $121.85 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Condenser; Condenser; Condenser Assembly, Cooler
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota Avalon | Limited, Touring, XLE, XLE Plus, XLE Premium, XLE Touring, XLE Touring SE | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Condenser Assembly
Part Number: 88460-06210
$346.22 MSRP: $507.40
You Save: $161.18 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Condenser; Condenser; Condenser Assembly, Cooler
- Replaces: 88460-33100
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2012 Toyota Avalon | Base, Limited, Touring, XL, XLS | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Condenser
Part Number: 88460-07032
Product Specifications
- Other Name: Condenser Assembly; A/C Condenser; Condenser Assembly, Cooler
- Replaces: 88460-07030, 88460-07031
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS

Toyota Avalon A/C Condenser

Choose genuine A/C Condenser that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM A/C Condenser for your Toyota Avalon? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Avalon parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The A/C Condenser is certainly proven to be efficient by located in Toyota Avalon, because it serves as a heat exchanger where it cools the gaseous refrigerant and changes it into liquid form for circulation. Often located in front of the radiator, this part is assembled from a network of tubes that contribute to the conversion of the refrigerant. As different models of Avalon have been produced over the years the type or style of A/C Condenser may differ but the purpose of each type stays the same to cool the refrigerant and to convert it for the proper function of the A/C system in the vehicle.

Toyota Avalon A/C Condenser Parts and Q&A

Condenser Assembly
88460-06210
Q: How to install an A/C Condenser and ensure proper connections on Toyota Avalon?
A:
The installation requires 4 bolts to fasten the cooler condenser assembly while torquing them to 5.0 Nm (51 kgf-cm, 44 in-lbf). The new unit needs 40 cc (1.4 fl. oz.) of ND-8 or equivalent compressor oil when installing a fresh condenser. Before assembly start by removing the attached vinyl tape from both the air conditioner tube and the cooler condenser assembly connection. After that apply ND-oil 8 or equivalent compressor oil to a new O-ring along with the fitting surface of the hose joint before installing the O-ring on the air conditioning tube assembly. The air conditioner tube and accessory must be installed onto the cooler condenser assembly through a bolt torque procedure at 9.8 Nm (100 kgf-cm, 87 in-lbf). The installation process for cooler refrigerant discharge hose No.1 requires removal of vinyl tape from both the pipe and cooler condenser assembly connection followed by application of ND-OIL 8 or equivalent compressor oil on a new O-ring and pipe joint surface before ring installation and pipe torque application of 9.8 Nm (100 kgf-cm, 87 in-lbf). Attach the hood lock assembly along with the radiator support upper. Before completion you must gas the system followed by an engine warming procedure for refrigerant leak detection.
Condenser Assembly
88460-AZ001
Q: How to remove the A/C Condenser on Toyota Avalon?
A:
In order to detach the HVAC condenser operators must first drain refrigerant from the refrigeration system. Next, remove the hvac condenser installation by detaching Air Cleaner Inlet No.2 and then Air Cleaner Inlet No.1 The first task involves removing the radiator support upper while disconnecting the hood lock assembly. Unite Cooler Refrigerant Discharge Hose No.1 from the cooler condenser assembly through bolt removal and by detaching it while also removing the O-ring. Use vinyl tape to seal off all disconnected system parts in order to block both moisture and outside materials entering the components. Disconnect the air conditioner tube and accessory by removing the bolt while detaching the unit from the cooler condenser assembly and sealing its openings with vinyl tape. Deadline the cooler condenser assembly removal by removing its 4 securing bolts.
