How to remove and install the A/C Compressor Clutch in a refrigeration system on Toyota Avalon?

The procedure to remove the compressor with magnetic clutch begins with discharging the refrigerant from the system before moving to remove the fan V belt and generator assembly. The procedure requires disconnecting Cooler Refrigerant Discharge Hose No.1 after removing its bolt and O-ring before applying vinyl tape for sealing the opened ports against moisture and outside matter intrusion. Subsequently disconnect the suction hose sub-assembly by removing its bolt followed by its O-ring while applying vinyl tape for sealing the openings. Unplug the connector and dissolve the 4 bolts on the compressor and magnetic clutch for removal. The installation process starts by installing the compressor and magnetic clutch through their 4 bolts while tightening them to 25 N.m (250 kgf.cm, 18 ft.lbf) torque value following the specified order. To install the suction hose sub-assembly first remove the vinyl tape then add compressor oil (ND-OIL 8 or equivalent) to both new O-ring and fitting surface before O-ring installation with a torque of 9.8 N.m (100 kgf.cm, 87 in.lbf) using the nut. Follow the same procedure for cooler refrigerant discharge hose No.1 by applying compressor oil to the new O-ring and fitting surface and fastening the nut to the same torque. After completing installation of the generator assembly and fan and generator V belt users should charge the refrigerant then warm up the engine while inspecting for any refrigerant leakages.

How to service and repair the A/C Compressor Clutch on Toyota Avalon?

You should start the process of clutch compressor servicing by taking it apart. Use Special Service Tool: 07112-76060 while applying a socket wrench to unbolt the shaft with 13.2 Nm (135 kg.cm, 9 ft.lb) torque setting. Suspend the pressure plate from Special Service Tool: 07112-66040 before using the same tools to separate the pressure plate from its shims. Special Service Tool: 07114-84020 should be used during rotor snap ring removal while observing that the beveled side of the snap ring should face upwards. A plastic hammer should be used to tap the rotor off the shaft while maintaining the pulley free from damage. Special Service Tool: 07114-84020 enables removal of the snap ring which requires positioning the beveled side up for reassembly. The stator can then be extracted after detaching the stator lead wire from the compressor housing. Factory Procedure begins by putting the beveled sides of both snap rings facing upwards. The magnetic clutch clearance needs to be checked after reassembly using a dial indicator set on the pressure plate while connecting the lead wire to the positive (+) battery terminal. Use special service tool 07114-84020 to measure pressure plate and rotor clearance which must fall between 0.5 and 0.15 mm (0.020 and 0.0059 in.) when you connect the negative (-) battery terminal. Standard clearance of the installation can be corrected by inserting shims with either 0.1 mm (0.004 in.), 0.3 mm (0.012 in.), or 0.5 mm (0.020 in.) dimensions.

OEM Toyota Avalon A/C Compressor Clutch

Air Conditioning Clutch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 A/C Compressor Clutches found

View related parts
Toyota Avalon Hub Sub-Assembly, Magnet Clutch Part Number: 88403-32010
$133.43 MSRP: $188.90
You Save: $55.47 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Clutch Assembly Part Number: 88410-33150
$175.20 MSRP: $250.16
You Save: $74.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Compressor Clutch; Clutch & Pulley; Clutch; Clutch Assembly, Magnet
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2012 Toyota Avalon | Base, Limited, Touring, XL, XLS | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Clutch Assembly, Magnet Part Number: 88410-0N010
$141.81 MSRP: $200.75
You Save: $58.94 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota Avalon | Limited, Touring, TRD, XLE, XSE, XSE Nightshade | 6 Cyl 3.5 L GAS
View related parts

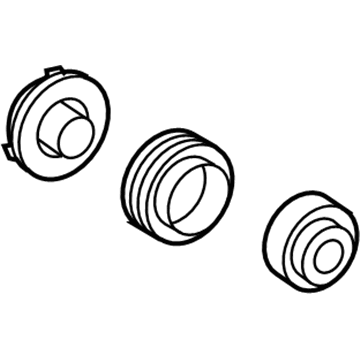

Toyota Avalon Clutch & Pulley Part Number: 88410-07020
$129.59 MSRP: $183.45
You Save: $53.86 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2001 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Clutch Assembly, Magnet Part Number: 88410-33040
$140.28 MSRP: $198.59
You Save: $58.31 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Compressor Clutch
- Replaces: 88410-06050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

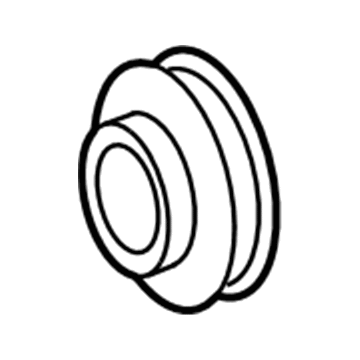

Toyota Avalon Clutch Assembly, Magnet Part Number: 88410-3A290
$174.48 MSRP: $246.99
You Save: $72.51 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2007 Toyota Avalon | Limited, Touring, XL, XLS | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Clutch & Pulley Part Number: 88410-3A280
$175.89 MSRP: $248.99
You Save: $73.10 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly; A/C Compressor Clutch; Clutch; Clutch Assembly, Magnet
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2007 Toyota Avalon | Limited, Touring, XL, XLS | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Clutch Assembly, Magnet Part Number: 88410-33120
$228.91 MSRP: $326.83
You Save: $97.92 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Compressor Clutch
- Replaces: 88410-07030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

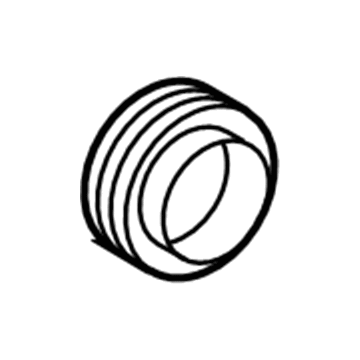

Toyota Avalon Rotor Sub-Assembly, Magnet Clutch Part Number: 88412-48020
$275.60 MSRP: $393.50
You Save: $117.90 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Pulley Part Number: 88412-07020
$282.51 MSRP: $403.36
You Save: $120.85 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor, Magnet. Clutch; A/C Compressor Clutch Pulley; A/C Compressor Clutch Drive; Rotor; Rotor Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2001 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

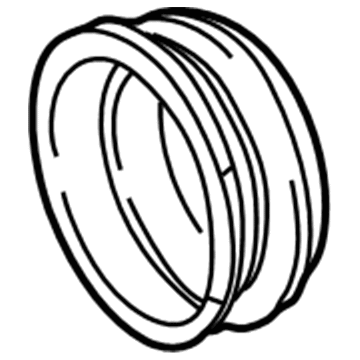

Toyota Avalon Clutch Part Number: 88412-33010
$302.47 MSRP: $431.86
You Save: $129.39 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor, Magnet Clutch; A/C Compressor Clutch Pulley; Pulley; Rotor; Rotor Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Replaces: 88412-07010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

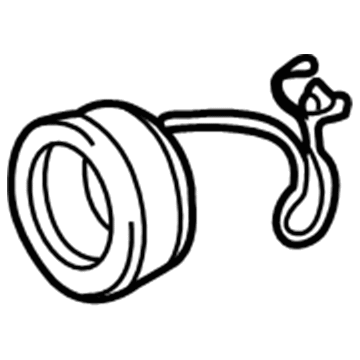

Toyota Avalon Clutch Coil Part Number: 88411-33030
$107.21 MSRP: $150.49
You Save: $43.28 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Stator, Magnet; A/C Compressor Clutch Coil; Clutch; Pulley; Coil; Stator Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Replaces: 88411-07010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

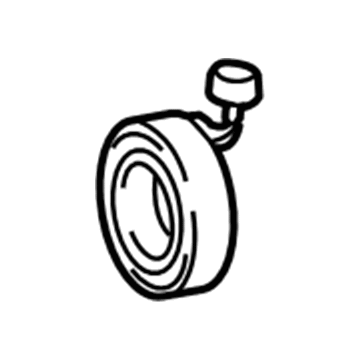

Toyota Avalon Clutch Coil Part Number: 88411-44010
$115.51 MSRP: $162.14
You Save: $46.63 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Stator, Magnet Clutch; A/C Compressor Clutch Coil; Magnet; Coil; Stator; Stator Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Replaces: 88411-06050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Hub Sub-Assembly, Magnet Clutch Part Number: 88403-06050
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet; A/C Compressor Clutch
- Replaces: 88403-30290
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

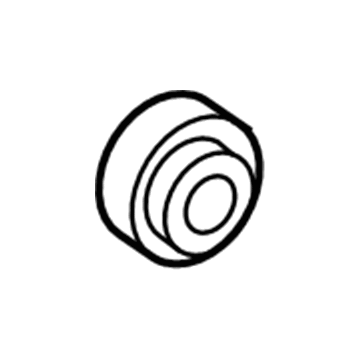

Toyota Avalon Clutch Coil Part Number: 88411-07030
Product Specifications
- Other Name: Stator, Magnet. Clutch; A/C Compressor Clutch Coil; Stator; Stator Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2001 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

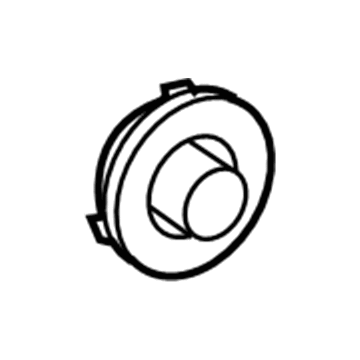

Toyota Avalon Hub Part Number: 88403-07010
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet. Clutch; A/C Compressor Clutch Drive; Clutch; Hub Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2001 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

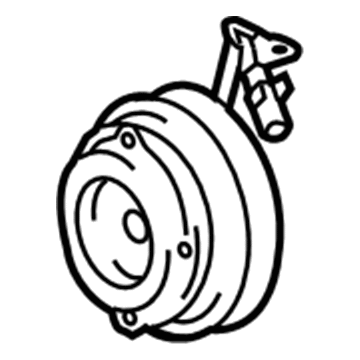

Toyota Avalon Clutch Assembly, Magnet Part Number: 88410-33190
Product Specifications
- Other Name: A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota Avalon | Limited, Touring, XLE, XLE Plus, XLE Premium, XLE Touring, XLE Touring SE | 6 Cyl 3.5 L GAS

Toyota Avalon A/C Compressor Clutch

Choose genuine A/C Compressor Clutch that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM A/C Compressor Clutch for your Toyota Avalon? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Avalon parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Avalon A/C Compressor Clutch engages the air-conditioning compressor when cooling is requested. Furthermore, it transfer's engine-belt power to start refrigerant circulation. Also, it disengages at other times, to reduce unnecessary load. Many controlled-clutch designs use an electromagnetic coil that magnetizes a drum inside the pulley. This draws the drum against the hub so that rotation only occurs when the system is switched on. In the absence of a working A/C Compressor Clutch, the compressor will not engage, causing poor or no cabin cooling for Avalon passengers and possibly damaging the belt. The Avalon A/C Compressor Clutch may overheat, chew belts, reduce fuel economy, or fail outright due to wear, sticking, slipping, or centrifugal forces. Excessive load, low voltage, oil starvation, or refrigerant loss forces lubricant from bearing and wrecks the unit. You can buy a new or remanufactured A/C Compressor Clutch unit by itself or in a kit. Regular system diagnosis is essential as replacing the Toyota A/C Compressor Clutch will not solve problems where Avalon condenser is clogged or refrigerant charge is incorrect and will help prevent damage to other Toyota parts.

Toyota Avalon A/C Compressor Clutch Parts and Q&A

Clutch & Pulley
88410-3A280
Q: How to remove and install the A/C Compressor Clutch in a refrigeration system on Toyota Avalon?
A:
The procedure to remove the compressor with magnetic clutch begins with discharging the refrigerant from the system before moving to remove the fan V belt and generator assembly. The procedure requires disconnecting Cooler Refrigerant Discharge Hose No.1 after removing its bolt and O-ring before applying vinyl tape for sealing the opened ports against moisture and outside matter intrusion. Subsequently disconnect the suction hose sub-assembly by removing its bolt followed by its O-ring while applying vinyl tape for sealing the openings. Unplug the connector and dissolve the 4 bolts on the compressor and magnetic clutch for removal. The installation process starts by installing the compressor and magnetic clutch through their 4 bolts while tightening them to 25 N.m (250 kgf.cm, 18 ft.lbf) torque value following the specified order. To install the suction hose sub-assembly first remove the vinyl tape then add compressor oil (ND-OIL 8 or equivalent) to both new O-ring and fitting surface before O-ring installation with a torque of 9.8 N.m (100 kgf.cm, 87 in.lbf) using the nut. Follow the same procedure for cooler refrigerant discharge hose No.1 by applying compressor oil to the new O-ring and fitting surface and fastening the nut to the same torque. After completing installation of the generator assembly and fan and generator V belt users should charge the refrigerant then warm up the engine while inspecting for any refrigerant leakages.
Pulley
88412-07020
Q: How to service and repair the A/C Compressor Clutch on Toyota Avalon?
A:
You should start the process of clutch compressor servicing by taking it apart. Use Special Service Tool: 07112-76060 while applying a socket wrench to unbolt the shaft with 13.2 Nm (135 kg.cm, 9 ft.lb) torque setting. Suspend the pressure plate from Special Service Tool: 07112-66040 before using the same tools to separate the pressure plate from its shims. Special Service Tool: 07114-84020 should be used during rotor snap ring removal while observing that the beveled side of the snap ring should face upwards. A plastic hammer should be used to tap the rotor off the shaft while maintaining the pulley free from damage. Special Service Tool: 07114-84020 enables removal of the snap ring which requires positioning the beveled side up for reassembly. The stator can then be extracted after detaching the stator lead wire from the compressor housing. Factory Procedure begins by putting the beveled sides of both snap rings facing upwards. The magnetic clutch clearance needs to be checked after reassembly using a dial indicator set on the pressure plate while connecting the lead wire to the positive (+) battery terminal. Use special service tool 07114-84020 to measure pressure plate and rotor clearance which must fall between 0.5 and 0.15 mm (0.020 and 0.0059 in.) when you connect the negative (-) battery terminal. Standard clearance of the installation can be corrected by inserting shims with either 0.1 mm (0.004 in.), 0.3 mm (0.012 in.), or 0.5 mm (0.020 in.) dimensions.
