OEM Scion xA Clutch Slave Cylinder

Scion xA Clutch Slave Cylinder Parts Questions & Experts Answers

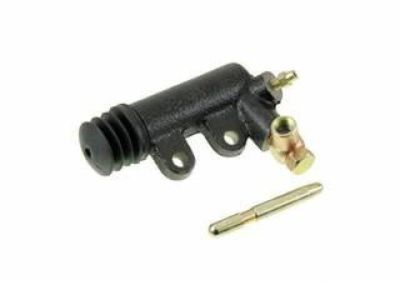

• Slave Cylinder
  31470-12200
  Q: How to service and repair the Clutch Slave Cylinder on Scion xA?

  A: The Clutch Slave Cylinder requires servicing through disconnection of the clutch release cylinder from the flexible hose tube using Special Service Tool: 09023-00101 while fluid prevents leakage into a catch container. Second you should remove the clutch release cylinder assembly through bolt extraction of the 2 bolts. The service process for Clutch Slave Cylinder starts with union bolt removal followed by taking out union along with 2 gaskets before extracting boot and push rod and piston and spring from the cylinder body keeping the cylinder interior free from damage. To proceed with the next step remove the cap that protects the bleeder plug. The reassembly process requires installation of the bleeder plug first with 8.4 Nm (85 kgf-cm, 74 inch lbs.), and the subsequent assembly of the clutch release cylinder kit by applying lithium soap base glycol grease on indicated surfaces. Attach the clutch release union after fitting the piston as well as push rod and boot onto the cylinder body together with the 2 new gaskets. Torque up to 25 Nm (250 kgf-cm, 18 ft. lbs.) with an installation angle between 0 degrees and 3 degrees. The installation requires torqueing the two bolts for the clutch release cylinder assembly to 12 Nm (120 kgf-cm, 9 ft. lbs.) then using Special Service Tool: 09023-00101 to torque the clutch release cylinder to flexible hose tube connection at 15 Nm (155 kgf-cm, 11 ft. lbs.). The process ends with bleeding the clutch system and checking for fluid leakage.
