How to replace the Air Bag Sensor Rear LH on Scion xA?

The first step to replace the Air Bag Sensor Rear LH demands implementing restraint systems service precautions followed by removing the battery negative terminal. Start by taking out the Deck Board No.1 followed by Deck Trim Cover Rear and next remove the Rear Door Scuff Plate LH, Rear Door Opening Trim Weather Strip LH, Rear Seat Cushion W/Cover Pad Sub-Assy, Rear Seat Back Assy LH, and finally the Rear Seat Back Hinge Sub-Assy LH and Rear Seat 3 Point Type Belt Assy Outer. First disconnect the connector from the Air Bag Sensor Rear LH and remove its bolt before taking out both the Air Bag Sensor Rear LH and the Deck Trim Side Panel Assy LH. Begin the installation of the new Air Bag Sensor Rear LH only after disconnecting the battery negative terminal for 90 seconds when the ignition switch stands off. Secure the sensor with its bolt while applying 9.0 Nm of torque which equals 92 kgf.cm and 80 in.lbf. The sensor needs replacement with a new part when drops or evidence of cracks and dents and defective components become present. The SRS wiring must be kept away from any other installed components which could cause pinching or wire interference. Use the sensor connector then inspect all installing parts for potential looseness. Inspection of the SRS warning light completes the procedure for installing the Rear Seat Back Hinge Sub-Assy LH together with Rear Seat Back Assy LH.

OEM Scion xA Air Bag Sensor

Air Bag Impact Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Air Bag Sensors found

View related parts

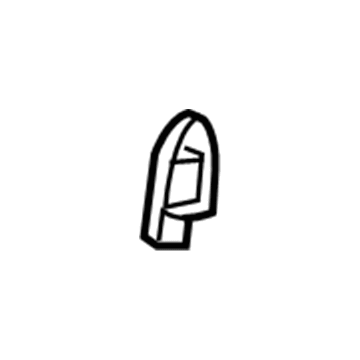

Scion xA Position Sensor, Passenger Side
Part Number: 89178-06020
$77.98 MSRP: $109.47
You Save: $31.49 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Seat Position; Seat Track Position Sensor, Left, Right; Air Bag Sensor; Occupant Sensor; Seat; Sensor, Seat Position Air Bag
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Scion xA | Base | 4 Cyl 1.5 L GAS
View related parts

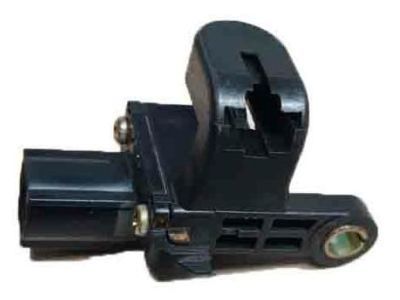

Scion xA Diag Unit W/Sensor
Part Number: 89170-0W390
$198.33 MSRP: $261.85
You Save: $63.52 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Center Sensor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Scion xA | Base | 4 Cyl 1.5 L GAS
View related parts

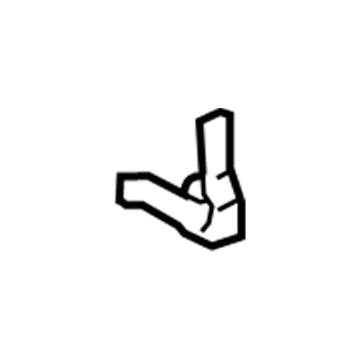

Scion xA Side Impact Sensor, Front Center
Part Number: 89831-05010
$85.50 MSRP: $103.09
You Save: $17.59 (18%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Side Air Bag; Air Bag Impact Sensor, Center Front; Air Bag Sensor; Side Sensor; Sensor Assembly, Side Air Bag, Passenger Side; Sensor Assembly, Side Air Bag, Driver Side
- Position: Front Center
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Scion xA | Base | 4 Cyl 1.5 L GAS
View related parts

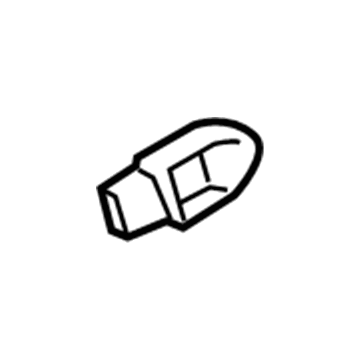

Scion xA Impact Sensor, Front Passenger Side
Part Number: 89173-69115
$97.30 MSRP: $117.32
You Save: $20.02 (18%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Bag, Front; Air Bag Impact Sensor, Front Right, Right; Air Bag Sensor; Front Impact Sensor; Front Sensor; Sensor, Air Bag, Front Passenger Side
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Scion xA | Base | 4 Cyl 1.5 L GAS
View related parts
Scion xA Side Impact Sensor, Rear Center
Part Number: 89831-0W010
$120.91 MSRP: $171.16
You Save: $50.25 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Side Air Bag; Air Bag Impact Sensor, Center Rear; Air Bag Sensor; Side Sensor; Sensor, Air Bag, Rear Passenger Side; Sensor, Air Bag, Rear Driver Side
- Position: Rear Center
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Scion xA | Base | 4 Cyl 1.5 L GAS
View related parts
Scion xA Impact Sensor, Front Driver Side
Part Number: 89174-69115
Product Specifications
- Other Name: Sensor, Air Bag, Front; Air Bag Impact Sensor, Front Left, Left; Air Bag Sensor; Front Impact Sensor; Front Sensor; Sensor, Air Bag, Front Driver Side
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Scion xA | Base | 4 Cyl 1.5 L GAS

Scion xA Air Bag Sensor

If you're thinking about purchasing OEM parts for your Scion xA, our website is your one-stop destination. We stock an extensive selection of genuine Scion xA Air Bag Sensor at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Scion xA Air Bag Sensor Parts Questions & Experts Answers

Position Sensor, Passenger Side
89178-06020
Q: How to replace the Air Bag Sensor Rear LH on Scion xA?
A: The first step to replace the Air Bag Sensor Rear LH demands implementing restraint systems service precautions followed by removing the battery negative terminal. Start by taking out the Deck Board No.1 followed by Deck Trim Cover Rear and next remove the Rear Door Scuff Plate LH, Rear Door Opening Trim Weather Strip LH, Rear Seat Cushion W/Cover Pad Sub-Assy, Rear Seat Back Assy LH, and finally the Rear Seat Back Hinge Sub-Assy LH and Rear Seat 3 Point Type Belt Assy Outer. First disconnect the connector from the Air Bag Sensor Rear LH and remove its bolt before taking out both the Air Bag Sensor Rear LH and the Deck Trim Side Panel Assy LH. Begin the installation of the new Air Bag Sensor Rear LH only after disconnecting the battery negative terminal for 90 seconds when the ignition switch stands off. Secure the sensor with its bolt while applying 9.0 Nm of torque which equals 92 kgf.cm and 80 in.lbf. The sensor needs replacement with a new part when drops or evidence of cracks and dents and defective components become present. The SRS wiring must be kept away from any other installed components which could cause pinching or wire interference. Use the sensor connector then inspect all installing parts for potential looseness. Inspection of the SRS warning light completes the procedure for installing the Rear Seat Back Hinge Sub-Assy LH together with Rear Seat Back Assy LH.
