How to service and repair the parking brake cable on 2007 Toyota Camry?

Question

Accepted Answer

The beginning step to service or repair the parking brake cable requires disconnecting the negative battery terminal connection followed by waiting 90 seconds to deactivate the Air Bag before starting the work. First detach both manual and power seat assemblies from the front and later disconnect the manual transaxle parking brake lever sub-assembly. The parking brake cable assembly of No. 1 must be removed from both manual and automatic transaxles before removing the luggage door lock open lever sub-assembly and front floor carpet assembly and cross member floor No. 4 reinforcement sub-assembly (exists only in automatic transaxles). The technicians separate the No. 3, No. 2 parking brake cable assemblies from the parking brake equalizer before removing the No. 4 parking brake cable assembly by sliding its rubber boot away from the equalizer. When modifying engines of both 2AZ-FE and 2GR-FE types, wielders must take out the center exhaust pipe assembly for 2AZ-FE and exhaust tail and center pipe assemblies for 2GR-FE. The service technician must first remove the No. 2 front floor heat lower insulator, then the rear wheel, rear disc brake caliper assembly, rear disc, parking brake shoe return tension No. 1 spring, parking brake shoe strut, and both No. 1 and No. 2 parking brake shoe assemblies. Disconnect the No. 3 parking brake cable assembly by removing its bolts and clips and by separating it from the body before removing the parking brake cable clamp. First secure the No. 3 parking brake cable assembly using its designated bolts before installing the No. 2 parking brake shoe assembly while adjusting the parking brake shoe adjusting screw set and adding the No. 1 parking brake shoe assembly with the parking brake shoe strut along with the return tension spring. The procedure requires checking the parking brake installation followed by mounting the rear disc along with parking brake shoe clearance adjustment and returning the rear disc brake caliper assembly and rear wheel. Fasten the No. 2 front floor heat lower insulator with prescribed torque and then install the center exhaust pipe assembly for 2AZ-FE and exhaust components for 2GR-FE. Reattach all parking brake cable assemblies Number 4, Number 2 and Number 3 to the parking brake equalizer and replace the cross member floor No. 4 reinforcement sub-assembly and front floor carpet assembly followed by the luggage door lock open lever sub-assembly for automatic transaxles. The assembly order includes No. 1 parking brake cable followed by parking brake lever sub-assembly for manual transaxles while No. 1 parking brake cable is installed before parking brake pedal assembly for automatic transaxles. The installation of both front seat assemblies should be completed followed by an evaluation of parking brake components with readjustment for best performance. The cable gets reconnected to the negative battery terminal before performing zero point calibration and sensitivity checks while checking the SRS warning light and slide adjuster lock and front seat assembly and verifying exhaust gas leakage.

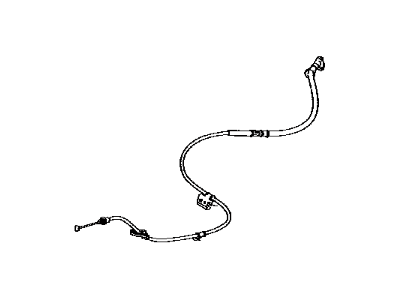

OEM 2007 Toyota Camry Parking Brake Cable
