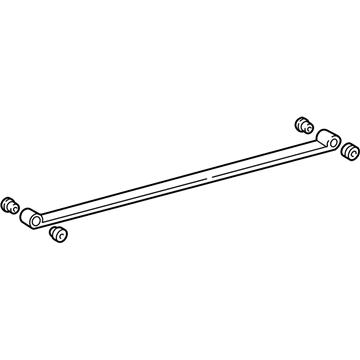

2004 Toyota Tundra Leaf Spring, Rear Passenger Side
Part Number: 48210-AF051
$637.17 MSRP: $933.77
You Save: $296.60 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Right-Hand; Leaf Spring, Rear Right; Leaf Spring Assembly; Spring Assembly, Rear Passenger Side
- Manufacturer Note: 4-LEAF,W(REAR STABILIZER)
- Position: Rear Passenger Side
- Replaces: 48210-AF050
- Part Name Code: 48210
- Item Weight: 18.00 Pounds
- Item Dimensions: 41.7 x 6.9 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48210-AF051
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Driver Side
Part Number: 48220-AF051
$637.77 MSRP: $934.66
You Save: $296.89 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Left-Hand; Leaf Spring, Rear Left; Leaf Spring Assembly; Spring Assembly, Rear Driver Side
- Manufacturer Note: 4-LEAF,W(REAR STABILIZER)
- Position: Rear Driver Side
- Replaces: 48220-AF050
- Part Name Code: 48220
- Item Weight: 18.60 Pounds
- Item Dimensions: 42.5 x 6.7 x 2.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48220-AF051
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Passenger Side
Part Number: 48210-0C011
$685.30 MSRP: $1004.32
You Save: $319.02 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear, Right-Hand; Leaf Spring, Rear Right; Leaf Spring Assembly; Spring Assembly, Rear Passenger Side
- Manufacturer Note: 4-LEAF
- Position: Rear Passenger Side
- Replaces: 48210-0C010
- Part Name Code: 48210
- Item Weight: 18.10 Pounds
- Item Dimensions: 42.9 x 6.8 x 2.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48210-0C011
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Passenger Side
Part Number: 48210-0C081
$661.01 MSRP: $968.73
You Save: $307.72 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Right-Hand; Leaf Spring, Rear Right; Leaf Spring Assembly; Spring Assembly, Rear Passenger Side
- Manufacturer Note: 4-LEAF,W(REAR STABILIZER)
- Position: Rear Passenger Side
- Replaces: 48210-0C080
- Part Name Code: 48210
- Item Weight: 17.50 Pounds
- Item Dimensions: 41.3 x 6.8 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48210-0C081
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Driver Side
Part Number: 48220-0C011
$685.30 MSRP: $1004.32
You Save: $319.02 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Left-Hand; Leaf Spring, Rear Left; Leaf Spring Assembly; Spring Assembly, Rear Driver Side
- Manufacturer Note: 4-LEAF
- Position: Rear Driver Side
- Replaces: 48220-0C010
- Part Name Code: 48220
- Item Weight: 17.60 Pounds
- Item Dimensions: 42.9 x 6.9 x 2.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48220-0C011
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Driver Side
Part Number: 48220-0C081
$685.30 MSRP: $1004.32
You Save: $319.02 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Left-Hand; Leaf Spring, Rear Left; Leaf Spring Assembly; Spring Assembly, Rear Driver Side
- Manufacturer Note: 4-LEAF,W(REAR STABILIZER)
- Position: Rear Driver Side
- Replaces: 48220-0C080
- Part Name Code: 48220
- Item Weight: 17.50 Pounds
- Item Dimensions: 43.4 x 6.9 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48220-0C081
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Passenger Side
Part Number: 48210-0C061
$710.04 MSRP: $1040.58
You Save: $330.54 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear, Right-Hand; Leaf Spring, Rear Right; Leaf Spring Assembly; Spring Assembly, Rear Passenger Side
- Manufacturer Note: 4-LEAF
- Position: Rear Passenger Side
- Replaces: 48210-0C060
- Part Name Code: 48210
- Item Weight: 17.60 Pounds
- Item Dimensions: 43.4 x 6.7 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48210-0C061
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Driver Side
Part Number: 48220-0C061
$710.04 MSRP: $1040.58
You Save: $330.54 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Left-Hand; Leaf Spring, Rear Left; Leaf Spring Assembly; Spring Assembly, Rear Driver Side
- Manufacturer Note: 4-LEAF
- Position: Rear Driver Side
- Replaces: 48220-0C060
- Part Name Code: 48220
- Item Weight: 18.80 Pounds
- Item Dimensions: 41.7 x 6.8 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48220-0C061
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Driver Side
Part Number: 48220-AF041
$683.04 MSRP: $1001.01
You Save: $317.97 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Left-Hand; Spring Assembly, Rear Driver Side
- Manufacturer Note: 4-LEAF
- Position: Rear Driver Side
- Replaces: 48220-AF040
- Part Name Code: 48220
- Item Weight: 18.80 Pounds
- Item Dimensions: 41.3 x 6.8 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48220-AF041
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Passenger Side
Part Number: 48210-AF072
$676.73 MSRP: $991.75
You Save: $315.02 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Right-Hand; Leaf Spring, Rear Right; Leaf Spring Assembly; Spring Assembly, Rear Passenger Side
- Manufacturer Note: 4-LEAF
- Position: Rear Passenger Side
- Replaces: 48210-AF070, 48210-AF071
- Part Name Code: 48210
- Item Weight: 18.60 Pounds
- Item Dimensions: 41.7 x 6.9 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48210-AF072
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Driver Side
Part Number: 48220-AF072
$676.73 MSRP: $991.75
You Save: $315.02 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Left-Hand; Leaf Spring, Rear Left; Leaf Spring Assembly; Spring Assembly, Rear Driver Side
- Manufacturer Note: 4-LEAF
- Position: Rear Driver Side
- Replaces: 48220-AF070, 48220-AF071
- Part Name Code: 48220
- Item Weight: 17.60 Pounds
- Item Dimensions: 42.1 x 6.9 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48220-AF072
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Passenger Side
Part Number: 48210-AF082
$716.63 MSRP: $1050.23
You Save: $333.60 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Right-Hand; Leaf Spring, Rear Right; Leaf Spring Assembly; Spring Assembly, Rear Passenger Side
- Manufacturer Note: 4-LEAF
- Position: Rear Passenger Side
- Replaces: 48210-AF080, 48210-AF081
- Part Name Code: 48210
- Item Weight: 18.00 Pounds
- Item Dimensions: 41.7 x 6.7 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48210-AF082
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Driver Side
Part Number: 48220-AF082
$716.63 MSRP: $1050.23
You Save: $333.60 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Left-Hand; Leaf Spring, Rear Left; Leaf Spring Assembly; Spring Assembly, Rear Driver Side
- Manufacturer Note: 4-LEAF
- Position: Rear Driver Side
- Replaces: 48220-AF081, 48220-AF080
- Part Name Code: 48220
- Item Weight: 18.00 Pounds
- Item Dimensions: 42.5 x 7.0 x 2.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48220-AF082
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring Assembly, Rear Passenger Side
Part Number: 48210-AF020
$691.41 MSRP: $1013.27
You Save: $321.86 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Right-Hand; Leaf Spring, Rear Right; Leaf Spring
- Position: Rear Passenger Side
- Condition: New
- SKU: 48210-AF020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following 2004 Toyota Tundra Submodels:
- SR5 | 6 Cyl 3.4 L GAS
View related parts
2004 Toyota Tundra Leaf Spring Assembly, Rear Driver Side
Part Number: 48220-AF020
$691.41 MSRP: $1013.27
You Save: $321.86 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Left-Hand; Leaf Spring, Rear Left; Leaf Spring
- Position: Rear Driver Side
- Condition: New
- SKU: 48220-AF020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following 2004 Toyota Tundra Submodels:
- SR5 | 6 Cyl 3.4 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Passenger Side
Part Number: 48210-AF061
$734.56 MSRP: $1076.50
You Save: $341.94 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Right-Hand; Leaf Spring, Rear Right; Leaf Spring Assembly; Spring Assembly, Rear Passenger Side
- Manufacturer Note: 4-LEAF
- Position: Rear Passenger Side
- Replaces: 48210-AF060
- Part Name Code: 48210
- Item Weight: 18.10 Pounds
- Item Dimensions: 42.1 x 6.9 x 3.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48210-AF061
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Rear Driver Side
Part Number: 48220-AF061
$734.56 MSRP: $1076.50
You Save: $341.94 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Assembly, Rear Left-Hand; Leaf Spring, Rear Left; Leaf Spring Assembly; Spring Assembly, Rear Driver Side
- Manufacturer Note: 4-LEAF
- Position: Rear Driver Side
- Replaces: 48220-AF060
- Part Name Code: 48220
- Item Weight: 17.60 Pounds
- Item Dimensions: 42.1 x 6.9 x 2.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48220-AF061
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Passenger Side
Part Number: 48214-0C010
$180.33 MSRP: $257.47
You Save: $77.14 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Leaf, Rear Spring; Leaf Spring, Rear Right
- Manufacturer Note: RH
- Position: Passenger Side
- Part Name Code: 48214
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48214-0C010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Driver Side
Part Number: 48278-0C010
$180.33 MSRP: $257.47
You Save: $77.14 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Leaf, Rear Spring; Leaf Spring, Rear Left
- Manufacturer Note: LH
- Position: Driver Side
- Part Name Code: 48214
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48278-0C010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Base, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS
View related parts
2004 Toyota Tundra Leaf Spring, Passenger Side
Part Number: 48201-AF030
$245.47 MSRP: $350.48
You Save: $105.01 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Leaf Sub-Assembly, Rear Spring; Leaf Spring, Rear Right; Leaf, Rear Spring
- Manufacturer Note: RH
- Position: Passenger Side
- Part Name Code: 48211
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 48201-AF030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2004 Toyota Tundra Submodels:
- Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS

| Page 1 of 4 |Next >

1-20 of 71 Results

2004 Toyota Tundra Leaf Spring

Looking for affordable OEM 2004 Toyota Tundra Leaf Spring? Explore our comprehensive catalogue of genuine 2004 Toyota Tundra Leaf Spring. All our parts are covered by the manufacturer's warranty. Plus, our straightforward return policy and speedy delivery service ensure an unparalleled shopping experience. We look forward to your visit!

2004 Toyota Tundra Leaf Spring Parts Q&A

Q: How to service and repair a leaf spring on 2004 Toyota Tundra?
A: The repair and servicing of leaf spring begins by using safety stands to support the body while jack-up lifts the axle housing enough to eliminate leaf spring tension. The leaf spring service requires you to remove the rear wheel followed by removing 4 U-bolt mounting nuts accompanied by washers and next remove spring seat with 2 U-bolts then end with removing spring bumper. The necessary procedure for leaf spring removal starts with nut and bolt detachment, after which the 2 nuts, washers, bolts, shackle, and leaf spring need to be extracted. The bushing tabs require cutting using a saw prior to using Special Service Tool: 09950-60010 (09951-00350) 09950-70010 (09951-07150) and a press to remove the inner tubes and rubber components from the bushings followed by tapping out the outer tubes with a chisel and hammer. Press in two new bushings using Special Service Tool: 09710-28012 (09710-07062), 09710-30041 (09710-03211) together with a hydraulic press. The spring clips need opening using a chisel and hammer while you take out the center bolt and nut by holding the spring in a vise. You can install the new spring clip after drilling off the rivet head and driving it out with a press. After aligning the vise-held leaf spring holes establish the spring center bolt and nut in place before torquing it to 44 Nm (450 kgf-cm, 33 ft. lbs.) then return the spring clips to their original position. When installing the system position the leaf spring and shackle together by applying 3 bolts and nuts and washers before stabilizing the suspension to reach a torque of 170 Nm (1,735 kgf-cm, 125 ft. lbs.). The installation of spring bumper and spring seat together with 2 U-bolts and 4 washers and nuts should be performed at 133 Nm (1,350 kgf-cm, 98 ft. lbs.) torque setting but maintaining equal U-bolt lengths beneath the spring seat. End the process by installing the rear wheel before removing safety stands while torquing it to 110 Nm (1,150 kgf-cm, 83 ft. lbs.).

Alternate Year Models

2003 Toyota Tundra Leaf Spring 2005 Toyota Tundra Leaf Spring
