OEM 2002 Toyota Sienna ABS Control Module
Anti Lock Brake Control Module- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
3 ABS Control Modules found

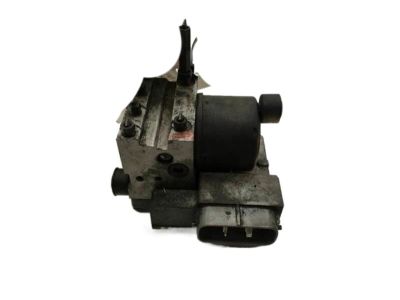

2002 Toyota Sienna Control Module
Part Number: 89541-08020$2643.07 MSRP: $3873.46You Save: $1230.39 (32%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Computer, Skid Control; ABS Control Module
- Manufacturer Note: W(VSC)
- Part Name Code: 89541
- Item Weight: 2.30 Pounds
- Item Dimensions: 9.5 x 7.3 x 4.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 89541-08020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Product Specifications- Other Name: Actuator Assembly, Brake; ABS Hydraulic Assembly; ABS Pump And Motor Assembly; ABS Control Module; Actuator
- Manufacturer Note: W(VSC)
- Part Name Code: 44510
- Item Weight: 8.10 Pounds
- Item Dimensions: 9.2 x 7.7 x 6.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 44050-08020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Product Specifications- Other Name: Actuator Assembly, Brake; ABS Hydraulic Assembly; ABS Pump And Motor Assembly; ABS Control Module; Actuator
- Part Name Code: 44510
- Item Weight: 4.10 Pounds
- Item Dimensions: 9.1 x 7.1 x 6.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 44050-08050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
2002 Toyota Sienna ABS Control Module
Looking for affordable OEM 2002 Toyota Sienna ABS Control Module? Explore our comprehensive catalogue of genuine 2002 Toyota Sienna ABS Control Module. All our parts are covered by the manufacturer's warranty. Plus, our straightforward return policy and speedy delivery service ensure an unparalleled shopping experience. We look forward to your visit!
2002 Toyota Sienna Parts Questions & Experts Answers
- Q: How to Service and Repair the ABS Control Module on 2002 Toyota Sienna?A: Service and repair of the Antilock Brake Hydraulic Control Assembly starts with the removal of air cleaner assembly. Apply Special Service Tool: 09751-36011 to disconnect the 2 brake lines from the ABS & VSC actuator master cylinder while tightening them to 19.6 Nm (200 kgf-cm, 14.5 ft. lbs.). Then separate the 4 brake lines from the ABS & VSC actuator with an appropriate torque of 15 Nm (155 kgf-cm, 11 ft. lbs.). Detach the 2 connectors followed by the wire harness clamp and unfasten the 3 nuts using a torque of 13 Nm (130 kgf-cm, 9 ft. lbs.) when removing the ABS & VSC actuator assembly. Keep the actuator safe because reinstallation should not occur if it accidentally drops. After loosening the 2 nuts at 13 Nm torque (130 kgf-cm, 9 ft. lbs.) remove the ABS & VSC actuator by removing its bracket clamp and separating the 2 holders and 3 cushions. Utility Tool (Special Service Tool: 09268-06021) must be used for removing the oil pressure sensor but only through an application of torque at 20 Nm (200 kgf-cm, 15 ft. lbs.). Reverse the steps from removal during installation while completing the procedure by filling the brake fluid reservoir and bleeding the system before leak inspection.
