Rear Suspension Components
2006 Toyota Sienna Wheel Hub, Coil Springs, Shock Absorber, Strut Mounts
Currently shopping for
2006 Toyota Sienna
Change VehicleVehicle Options
6 Cyl 3.3 L GASVehicle Options
6 Cyl 3.3 L GASCategories Close X
Currently selected
Suspension
Other Categories
A/C & Heating
Air & Fuel Delivery
Belts & Cooling
Body & Hardware
Brakes
Charging & Starting
Driveline & Axles
Electrical
Emission Control & Exhaust
Engine
Headlights & Lighting
Interior & Exterior Trim
Maintenance & Lubrication
Steering
Transmission
How to use OE catalog
3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Rear Suspension - Suspension Components (2 Wheel Drive)
- 2.Rear Suspension - Suspension Components (All Wheel Drive)
- 3.Rear Suspension - Suspension Components (Sienna)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
MSRP: $1857.95 Your Price: $1267.781
- 1
MSRP: $688.11 Your Price: $469.541 - 1
MSRP: $688.11 Your Price: $469.541
- 2
48725-08020
Axle Beam BushingBush, Rear Suspension- Part Notes: 2 Wheel Drive;All Wheel Drive
- Location: Driver Side;Passenger Side
MSRP: $146.53 Your Price: $104.391
- 2
48531-A9050
Shock AbsorberAbsorber, Shock, Rear- Part Notes: Sienna; 2WD; Without Mobility Vehicle; Without 8 Seater
MSRP: $86.15 Your Price: $61.371 - 2
48531-A9200
Shock AbsorberAbsorber Set, Shock- Part Notes: Sienna; 2WD; With Mobility Vehicle;Sienna; 2WD; Without Mobility Vehicle; With 8 Seater;Sienna; AWD
MSRP: $86.15 Your Price: $61.371
- 3
90080-11598
Axle Beam BoltBolt, W/Washer- Part Notes: 2 Wheel Drive;All Wheel Drive
- Location: Driver Side;Passenger Side
MSRP: $20.94 Your Price: $15.051
- 3
48231-AE041
Coil SpringSpring Coil Rear- Part Notes: Sienna; 2WD; With Mobility Vehicle;Sienna; 2WD; Without Mobility Vehicle; With 8 Seater;Sienna; AWD
MSRP: $227.86 Your Price: $160.961 - 3
48231-AE031
Coil SpringSpring Coil Rear- Part Notes: Sienna; 2WD; Without Mobility Vehicle; Without 8 Seater
MSRP: $201.42 Your Price: $142.281
- 4MSRP: $227.86 Your Price: $160.961
- 4MSRP: $201.42 Your Price: $142.281
- 4
MSRP: $35.91 Your Price: $25.801
- 5
MSRP: $77.00 Your Price: $55.321
- 5

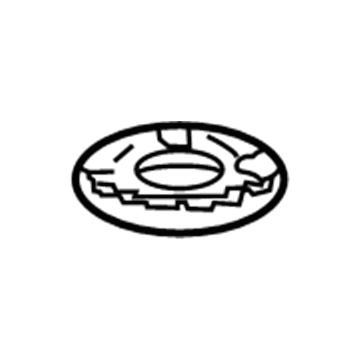

48257-08020
InsulatorInsulator, Rear Coil Spring- Part Notes: 2 Wheel Drive;All Wheel Drive
- Location: Driver Side;Passenger Side
MSRP: $35.91 Your Price: $25.801
- 6
MSRP: $1857.95 Your Price: $1267.781
- 6MSRP: $86.15 Your Price: $61.371
- 6MSRP: $86.15 Your Price: $61.371
- 7
MSRP: $146.53 Your Price: $104.391
- 7
90177-12002
Shock NutNut, Lock- Part Notes: 2 Wheel Drive;All Wheel Drive
- Location: Driver Side;Passenger Side
MSRP: $2.15 Your Price: $1.541
- 848341-08030
Shock BumperBumper, Rear Spring- Part Notes: 2 Wheel Drive;All Wheel Drive
- Location: Driver Side;Passenger Side
MSRP: $77.00 Your Price: $55.321
- 9
90080-94196
Shock CushionWasher, Shock Absorber Cushion- Part Notes: 2 Wheel Drive;All Wheel Drive
- Location: Driver Side;Passenger Side
MSRP: $25.77 Your Price: $18.511
- 10
90080-94195
Shock RetainerRetainer, Cushion- Part Notes: 2 Wheel Drive;All Wheel Drive
- Location: Driver Side;Passenger Side
MSRP: $11.63 Your Price: $8.351
- 11
48553-08010
Shock CapCap, Shock Absorber- Part Notes: 2 Wheel Drive;All Wheel Drive
- Location: Driver Side;Passenger Side
MSRP: $11.13 Your Price: $7.991
MSRP: $33.75 Your Price: $24.251
MSRP: $3.48 Your Price: $2.50
48231-AE040
Spring, Coil, Rear RH- Part Notes: MOBILITY BASE VEHICLE
MOBILITY BASE VEICLE
PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE - Location: Rear Passenger Side
- Production Date: 01/2003-12/2007
- Fitting Vehicle Options: MCL25; MCL20.. 8S.. (LE, XLE); GSL25; GSL20.. 8S.. (LE, XLE)
- Part Name Code: 48231A
- Replaced By: 48231-AE041
MSRP: $227.86 Your Price: $160.96
48231-AE030
Spring, Coil, Rear RH- Location: Rear Passenger Side
- Production Date: 01/2003-12/2007
- Fitting Vehicle Options: MCL20, 23; GSL20, 23
- Part Name Code: 48231A
- Replaced By: 48231-AE031
MSRP: $201.42 Your Price: $142.28
90080-94194
Retainer, Cushion, NO.2(For Rear Shock Absorber RH)- Location: Passenger Side
- Production Date: from 01/2003
- Fitting Vehicle Options: MCL2#; GSL2#
- Part Name Code: 48531F
MSRP: $16.45 Your Price: $11.82
48531-A9060
Absorber Assy, Shock, Rear RH- Part Notes: MARK 48531-AE030
MARK 48531-AE030,MOBILITY BASE VEHICLE - Location: Rear Passenger Side
- Production Date: 01/2003-09/2005
- Fitting Vehicle Options: MCL25.. LE, XLE; MCL20.. 8S.. (LE, XLE)
- Part Name Code: 48530
- Replaced By: 48531-A9200
MSRP: $86.15 Your Price: $61.37
OEM 2006 Toyota Sienna Parts for Rear Suspension Components
Genuine 2006 Toyota Sienna parts are produced by Toyota with the official design and standards, thus they ensure a high quality throughout the production process. OEM parts are the ideal choice for people looking for new Rear Suspension Components parts. With our competitive prices, we offer 2006 Toyota Sienna Wheel Hub, Coil Springs, Shock Absorber, Strut Mounts that fit tight budgets, while still including the manufacturer warranties, a hassle-free returns policy and quick shipping options.
Coil Springs, Shock Absorber, Wheel Hub Installation and Repair Tips for 2006 Toyota Sienna
- Q: How to service the rear shock absorber on 2006 Toyota Sienna?A: In order to service the rear shock absorber, take off rear wheel and shock absorber cap LH. Place a jack under the rear axle beam, clamp the piston rod with a wrench, and take out the lock nut. Check problems, change parts when required, and refit parts. Lastly, check alignment of wheels.
- Q: How to service and repair the rear Wheel Hub and Wheel Bearing on 2006 Toyota Sienna?A: When required to service the rear wheel hub and bearing, service of 4WD, check the hub bearing backlash and surface deviation with a dial gauge. Re-replace in case backlash is above 0.05 mm or deviation is above 0.07 mm. Adhere to removal and installation procedure with appropriate torque adjustment and monitor ABS speed sensor signal after that.
- Q: How to service the rear coil springs on 2006 Toyota Sienna?A: To service the rear coil spring, remove the rear wheel, disconnect skid control/speed sensors, remove exhaust, propshaft and drive shafts, remove differential, parking brake cables and brake tubes (catch fluid), separate axle and shocks, remove/install coil spring and insulator, reassemble, bleed brakes, check alignment.
