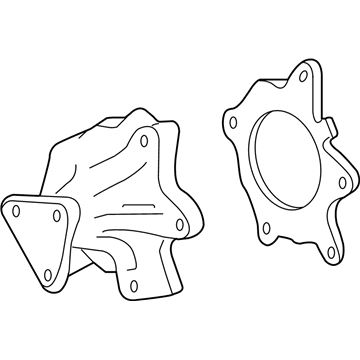

Toyota 16100-29157-83
Water Pump

Draining the engine coolant should be the first step for water pump assembly replacement. Rephrase the fan and generator V-belt before beginning the removal of the engine mounting insulator sub-assembly RH. To remove the water pump pulley employ Special Service Tool: 09960-10010 (09962-01000, 09963-00600) that holds the pump pulley until all 3 bolts and the pulley are extracted. Next, uninstall the water pump assembly through the removal of three bolts and two nuts before detaching the water pump and gasket. Fasten the new water pump along with its gasket onto the pulley by applying 3 bolts and 2 nuts while torquing them to 11 Nm (112 kgf-cm, 8.1 ft. lbs.). Fasten the water pump pulley in place by applying torque of 15 Nm (153 kgf-cm, 11 ft. lbs.) to its 3 bolts through the use of Special Service Tool: 09960-10010 (09962-01000, 09963-00600). You should place the V-ribbed belt on each pulley before reinstalling both the engine mounting insulator sub-assembly RH and the fan and generator V-belt. The final tasks consist of adjusting the fan and generator V-belt followed by drive belt deflection examination and tension check while fueling the engine with coolant and inspecting for any signs of coolant leakage.

The water pump replacement procedure starts with draining the engine coolant before removing the engine under cover RH then the fan and generator V belt. The engine mounting insulator sub-assy RH and water pump pulley require Special Service Tool: 09960-10010 (09962-01000, 09963-00600) to remove the 3 bolts at their respective locations. The next step is to detach the water pump assembly by unfastening 3 bolts and 2 nuts then removing the water pump while separating it from the gasket. To install the components first position the new gasket and water pump using the 3 bolts and 2 nuts while implementing a torque of 11 Nm (112 kgf-cm, 8.1 ft. lbs.). Use Special Service Tool: 09960-10010 (09962-01000, 09963-00600) to install the water pump pulley by fastening its 3 bolts with a torque of 15 Nm (153 kgf-cm, 11 ft. lbs.). The next step involves reinstalling the engine mounting insulator sub-assy RH as well as the fan and generator V belt but the V-ribbed belt should be initially placed on each pulley. Adjust the V belt on the fan and generator followed by an examination of drive belt tension and deflection before reinstalling the right-hand engine under cover while tightening the bolt and nut to 5.0 Nm (51 kgf-cm, 44 inch lbs.). To complete the procedure you must add engine coolant before checking for any fluid leakages.

The service and repair procedure for the water pump begins with draining engine coolant. The service begins by taking off the generator V belt which requires removal of the engine mounting insulator subassembly RH. Apply Special Service Tool: 09960-10010 (09962-01000, 09963-00600) for holding the pump pulley after which you should remove the three bolts and the pulley. Proceed by removing the water pump assembly after breaking loose the three bolts and two nuts then moving on to the water pump along with its gasket. Installation requires a new gasket and a water pump which needs to be fastened with the 3 bolts and 2 nuts at 11 Nm (112 kgf-cm, 8 ft. lbs.) torque. To install the water pump pulley use Special Service Tool: 09960-10010 (09962-01000, 09963-00600) which enables you to tighten the three bolts to 15 Nm (153 kgf-cm, 11 ft. lbs.). The engine mounting insulator subassembly RH must be reinstalled first then install and correctly adjust the generator V belt. You should add engine coolant then search for all leaks.

Draining the engine coolant and removing the drive belt stands as the first step before servicing and repairing the water pump. A technician should use Special Service Tool: 09960-10010 (09962-01000, 09963-00600) to remove three bolts and pump pulley before proceeding with the removal of three bolts and two nuts for the water pump and its gasket. You should inspect the water pump by visually examining its drain hole for coolant leakage until you decide to replace it. The pulley rotation will ensure smooth bearing operation; replace the water pump when necessary. The installation of the water pump requires you to add it with a new gasket using 3 bolts along with two nuts then torque the fasteners to 11.0 Nm (110 kgf-cm, 8 ft. lbs.). Follow the installation of the pump pulley through the use of Special Service Tool: 09960-10010 (09962-01000, 09963-00600) and torque the 3 bolts to 15 mm (150 kgf-cm, 11 ft. lbs.) with their correct sizes. Synchronize the engine to 1500 RPM before filling the coolant tank and enabling the engine to run for a leak test before reassessing the coolant amount reported on the gauge.

The workflow to perform Coolant Heat Storage Water Pump maintenance requires the removal of the rear floor No. 2 board with its accompanying rear deck floor box and rear floor No. 3 board. Disconnect the battery negative terminal cable while letting the system wait for at least 90 seconds to avoid Air Bag and seat belt pretensioner activation. Before starting Hot Storage Water Pump servicing you need to take off the radiator support opening cover and front wheel LH followed by removal of engine under cover LH and partial removal of front fender liner LH. You must drain the engine coolant before disconnecting the water pump connector and both hoses which allows you to remove the securing bolt from the pump. Position the coolant heat storage water pump then fasten it with the bolt tightened to 6.0 Nm (61 kgf-cm, 53 inch lbs.). Connect the two hoses and the connector afterward. Reestablish battery negative terminal cable connection while placing rear floor No. 3 board followed by rear deck floor box and finally rear floor No. 2 board. The service requires inspecting for leaks when adding engine coolant before reattaching the front fender liner along with the engine under cover and front wheel LH while torquing the wheel to 103 Nm (1050 kgf-cm, 76 ft. lbs.). The last step involves installing the radiator support opening cover after which initialization procedures should be conducted on selected systems following battery negative terminal reconnection.

Apply the water pump assembly with a new gasket by screwing three bolts and two nuts at 11 Nm (112 kgf-cm, 8.1 ft-lbf). Begin by installing 3 bolts to the water pump pulley but keep the pulley still using Special Service Tool: 09960-10010 09962-01000. Tighten the bolts to 15 Nm (153 kgf-cm, 11 ft-lbf). Master the installation process for the engine mounting insulator sub-assembly RH shared by the hatchback and sedan models followed by generator assembly installation. Place the fan and generator V belt then check for correct tension before adjusting it. Fasten the cable to the negative battery terminal with 5.4 Nm torque while also checking for any coolant leakage. Place the engine during the last stage into position under the right-hand engine cover.

Start by placing the water pump assembly with its new gasket through three bolts and two nuts while torquing at 11 Nm (112 kgf-cm and 8.1 ft-lbf). Install only provisionally the water pump pulley using Special Service Tools: 09960-10010 09962-01000 to tighten its 3 bolts to a torque of 15 Nm (153 kgf-cm, 11 ft-lbf). The engine installation continues with the generator assembly after installing the engine mounting insulator sub-assembly RH for hatchback and sedan variants. Succeeding the fan and generator installation you must position the V-belt and examine its tension before completing the installation. Install the cable to the negative battery terminal before tightening it to 5.4 Nm (55 kgf-cm, 48 in-lbf). Then add engine coolant while also checking for leaks. Both sedan and hatchback models require the final installation of the engine under cover RH.

Use Special Service Tool: 09960-10010 (09962-01000, 09963-00600) to hold the pump pulley and remove the 3 bolts.

First, drain the engine coolant and remove the engine under cover RH.

Drain the engine coolant and remove the drive belt.

Place a new gasket and the water pump using the 3 bolts and 2 nuts, ensuring a torque of 11 Nm (112 kgf-cm, 8 ft. lbs.).

Remove the 3 bolts and pump pulley, followed by the removal of the 3 bolts, 2 nuts, water pump, and gasket.

Turn the pulley to ensure the water pump bearing moves smoothly and quietly, replacing the water pump if necessary.

Disconnect the connector, remove the 2 bolts, and disconnect heater water hose A before removing the pump.

Visually check the drain hole for coolant leakage; if leakage is found, replace the water pump.

Remove the Heater Water Pump Assembly by disconnecting the connector, removing the 2 bolts, and then disconnecting the heater water pump.

Begin by removing the radiator support opening cover, engine under cover LH, and engine under cover RH.

Reinstall the engine under cover RH, engine under cover LH, and the radiator support opening cover.

Visually check the drain hole for coolant leakage; if leakage is found, replace the water pump.

Drain the engine coolant.

Disconnect the connector for the HV water pump and the two water hoses.

Remove the radiator support opening cover, the front left wheel, the engine under cover on the left side, and partially remove the front fender liner on the left side.

Connect the connector afterward.

Remove 3 bolts and 2 nuts.

Disconnect the cable from the negative battery terminal.

Remove the engine under cover on the right-hand side.

Inspect the fan and generator V belt, reconnect the cable to the negative battery terminal with a torque of 5.4 N*m (55 kgf*cm, 48 in.*lbf), add engine coolant, check for any coolant leakage, and finally install the engine under cover RH.

Disconnect the cable from the negative battery terminal.
