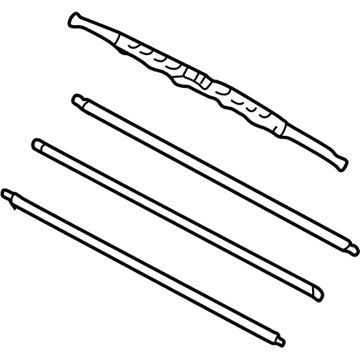

Toyota 85212-47021
Wiper Blade, Passenger Side

Shipping the rear wiper blade begins by raising it until you hear a clicking sound that releases the claw interlock but prevent claw damage. To uninstall the rear wiper blade, pull it straight away from the rear wiper arm towards the left wheel side of the car while keeping the arm from folding. The end of rubber protruding from the blade stopper requires pulling with care since forcing removal risks damaging both backing plates and blade claws; pushing lightly across the rubber ends towards the center helps removal become easier. To install new wiper rubber start by fitting the No. 1 and No. 2 rear wiper rubber backing plates correctly oriented. You should guide the rear wiper rubber from its front coast through the second claw until it extends from the rear stopper after passing the back claw and then lead it into the front claw for installation. Spin the wiper blade toward the right-hand side of the car to finish the process of attachment to the wiper arm.

Attach the claw to install the wiper blade.

Start by removing the front wiper blade by detaching the claw and then taking off the wiper blade, being careful not to fold the wiper arm.

Insert the rear wiper rubber from the front end of the rear wiper blade to the rear end through the second claw, ensuring it extends beyond the rear end stopper after passing through the rear end side claw.

Place the rear wiper rubber backing plate No.1 and No.2 in the correct direction.

First, remove the front wiper blade from the front wiper arm, ensuring not to fold down the front wiper arm while the blade is detached.

Position the No. 1 and No. 2 rear wiper rubber backing plates correctly as indicated in the illustration.
