Make sure this part fits

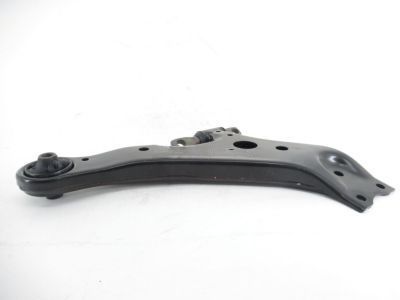

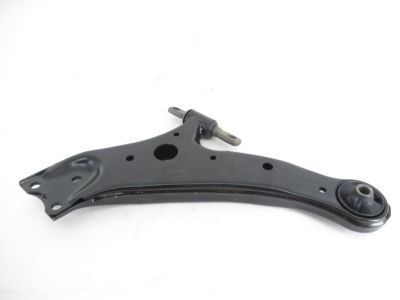

Toyota 48068-0E050
Control Arm, Passenger Side

2008-2015 Toyota 480680E050

Customer Questions & Expert Answers (5)
Toyota 48068-0E050 Control Arm, Passenger Side
Toyota 48068-0E050 Control Arm, Passenger Side
Toyota 48068-0E050 Control Arm, Passenger Side
Toyota 48068-0E050 Control Arm, Passenger Side
Toyota 48068-0E050 Control Arm, Passenger Side
  • Part Description
    Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right; Control Arm Assembly
  • Part Name Code
    48068
  • Position
    Passenger Side
  • Replaces
    48068-48040, 48068-0T010, 48068-0T011, 48068-48041, 48068-48070
  • Manufacturer
    Toyota
Make sure this part fits
$150.74 MSRP: $213.40
You Save: $62.66 (30%)
Ships in 1-2 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • 48068-0E050 Control Arm, Passenger Side is Ref No. 3 in the diagram below

    2012 Toyota Venza Control Arm, Passenger Side Diagram for 48068-0E050
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 48068-0E050

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code48068
    Manufacturer Part Number48068-0E050
    Part DescriptionArm Sub-Assembly, Suspension; Suspension Control Arm, Front Right; Control Arm Assembly
    Other NamesLower Control Arm; Arm Sub-Assembly, Front Suspension, Lower Passenger Side
    Item Dimensions7.1 x 1.4 x 1.5 inches
    Item Weight9.10 Pounds
    PositionPassenger Side
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces48068-48040, 48068-0T010, 48068-0T011, 48068-48041, 48068-48070
    ManufacturerToyota
    SKU48068-0E050
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2008-2015 Toyota HighlanderBase, Hybrid, Hybrid Limited, LE, LE Plus, Limited, Plus, SE, Sport, XLE4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
    2009-2015 Toyota VenzaBase, LE, Limited, XLE4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS

  • Customer Questions & Expert Answers

    Q:
    Will 48068-0E050 fit my vehicle? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 48068-0E050 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to install the front lower Control Arm on Toyota Venza? Posted by Customer
    A:
    Start by uniting the front lower arm bushing stopper to the front lower suspension arm before holding it to the front frame assembly with three bolts and a temporary nut. Start from the front of the vehicle when installing bolts and torque them to the following specifications: Bolt 1 and 2 receive 200 Nm (2039 kgf-cm, 147 ft-lbf) while Bolt 3 requires 206 Nm (2100 kgf-cm, 152 ft-lbf). Mounting insulator LH needs temporary tightness on both 2GR-FE and 1AR-FE engines before installing front frames of either engine type. Mount the rear engine mounting insulator before securing both engine types with a full torque on the engine mounting insulator LH. Begin installation of the AWD steering link assembly after which install the front stabilizer bar together with the front stabilizer link assembly for AWD. The front No. 1 stabilizer bracket LH and RH installation for AWD requires the same method to be applied to the RH side. You should install the engine assembly with transaxle for both 2GR-FE and 1AR-FE.
    Posted by ToyotaPartsNow Specialist
    Q:
    What should be removed after the deck board assembly for the 2009 Toyota Highlander? Posted by Customer
    A:
    Remove the No. 3 deck board sub-assembly with the tonneau cover.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    How do you position the front lower suspension arm for the 2008 Toyota Highlander? Posted by Customer
    A:
    Position the front lower suspension arm onto the front frame assembly using 3 bolts and a nut, ensuring not to tighten them at this stage.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done for the 1AR-FE AWD before removing the front frame assembly for the 2009 Toyota Venza? Posted by Customer
    A:
    Separate the rear engine mounting insulator.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota 48068-0E050, Excellent Performance and Perfect Fitment

To ensure reliability, purchase Toyota part # 48068-0E050 Control Arm, Passenger Side. It is sometimes referred to as Toyota Control Arm. OEM parts are unrivaled in terms of quality. They go through extensive quality control inspections and are produced in accordance with Toyota's official factory specifications. All of these remove defects and imperfections. So you can relax knowing they promise exceptional lifespan and flawless fitment.

ToyotaPartsNow.com is a leading supplier of genuine Toyota parts such as Toyota 480680E050 Control Arm, Passenger Side. At ToyotaPartsNow.com, we have a wide variety of OEM Toyota parts available at competitive prices. Our comprehensive range of genuine Toyota parts come with a manufacturer's warranty for peace of mind. We also prioritize customer satisfaction, providing a hassle-free return policy and expedited delivery for all our parts. For detailed Toyota parts information, click here.
