Toyota 88310-1A660
Compressor Assembly

2008-2014 Scion xD 883101A660

Customer Questions & Expert Answers (5)
Toyota 88310-1A660 Compressor Assembly
  • Part Description
    Compressor Assembly, With Pulley; A/C Compressor; New A/C Compressor
  • Part Name Code
    88310
  • Manufacturer
    Toyota
Make sure this part fits
$499.16 MSRP: $731.54
You Save: $232.38 (32%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

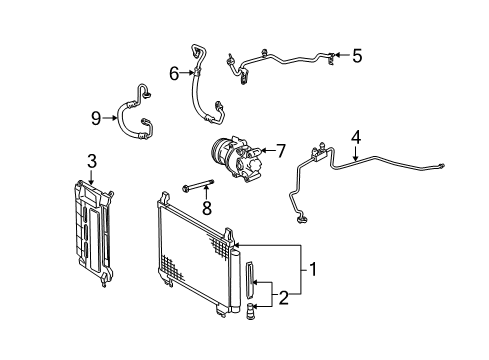

  • 88310-1A660 Compressor Assembly is Ref No. 7 in the diagram below

    2009 Scion xD Compressor Assembly Diagram for 88310-1A660
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 88310-1A660

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code88310
    Manufacturer Part Number88310-1A660
    Part DescriptionCompressor Assembly, With Pulley; A/C Compressor; New A/C Compressor
    Other NamesCompressor; Compressor Assembly, W/Pulley
    Item Dimensions11.6 x 7.8 x 7.9 inches
    Item Weight10.50 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerToyota
    SKU88310-1A660
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2008-2014 Scion xDBase4 Cyl 1.8 L GAS

  • Customer Questions & Expert Answers

    Q:
    Can you provide the right 88310-1A660 for my car? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 88310-1A660 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to install the A/C Compressor on Scion xD? Posted by Customer
    A:
    The first step for installing the 2ZR-FE HVAC compressor requires you to adjust the compressor oil level through careful helium gas draining from the service valve and targeted venting of oil while maintaining the necessary ratio between new compressor oil capacity (90 (+15) cc (3 (+0.51) fl.oz.)) and the amount of oil in drained compressors. Use oil type ND-OIL8 or equivalent Use compressor oil with specification of ND-OIL8 or equivalent. Use a "TORX" socket wrench (E8) to install the compressor by fastening the 2 stud bolts at 9.8 Nm (100 kgf-cm, 87 in-lbf) torque before securing it with 2 bolts and 2 nuts tightened to 25 Nm (255 kgf-cm, 18 ft-lbf). Maintain the specified tightening sequence for installation. Connect the connector and 2 clamps. The installation of the No. 1 cooler refrigerant suction hose requires removal of vinyl tape along with the application of compressor oil to the fitting surface and new O-ring before installation of the suction hose onto the compressor using a bolt torqued to 9.8 Nm (100 kgf-cm, 87 in-lbf). The same procedure must be done for the No. 1 cooler refrigerant discharge hose. The procedure requires installing the fan and generator V belt followed by an adjustment check before placing on the No. 2 cylinder head cover. After system charging with refrigerant the technician should let the engine heat to operating temperature while inspecting for leakage then completing the installation of the engine under cover RH.
    Posted by ToyotaPartsNow Specialist
    Q:
    What is the next step after installing the compressor for the 2010 Scion xD? Posted by Customer
    A:
    Connect the connector and 2 clamps.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar A/C Compressor
    Q:
    How do you determine the amount of oil to be removed for the 2008 Scion xD? Posted by Customer
    A:
    The amount of oil to be removed equals the oil inside a new compressor (90 (+15) cc) minus the oil remaining in the removed compressor.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar A/C Compressor
    Q:
    What should be done for the No. 1 cooler refrigerant suction hose for the 2009 Scion xD? Posted by Customer
    A:
    Repeat the process of removing the bolt and O-ring while sealing the openings.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar A/C Compressor
