OEM Toyota Venza Radiator

Toyota Venza Radiator Parts and Q&A

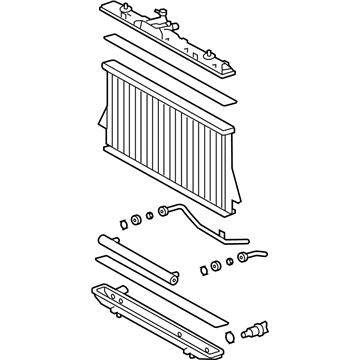

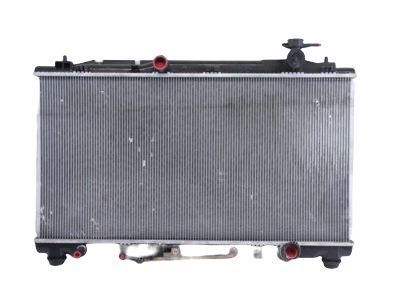

• Radiator Assembly
  16400-0P220
  Q: How to remove the radiator on Toyota Venza?

  A:

  Your first step when removing the radiator will be to remove both No. 1 engine under cover along with the No. 2 engine under cover. Remove the engine coolant first before removing the duct seal on the cool air intake along with the inlet air cleaner assembly. The next step requires removal of radiator grille protector followed by taking off the radiator grille. Separate both the low pitched and high pitched horn assemblies from their installation points. Take out the hood lock assembly from the vehicle optionally together with or without the engine hood courtesy switch. Unplug the outlet reserve tank hose from the radiator before disconnecting both No. 1 and No. 2 radiator hoses. The technician disconnects both hoses which transport No. 1 oil cooler fluid from the inlet and outlet of the radiator. The first step for upper radiator support removal involves disconnecting the hood lock control cable clamp followed by removing 5 bolts. You can separate the cooler condenser assembly through the removal of its 4 bolts. The procedure ends by removing the radiator assembly along with the fan assembly with motor by disconnecting both wire harness clamps and 2 connectors while avoiding excessive force against the cooler condenser assembly or pipe. Pull up the fan assembly with motor from the radiator assembly by disconnecting the 3 snap fits under the guidance of the 2 guides after removing the 2 radiator support cushions and 2 lower radiator supports.

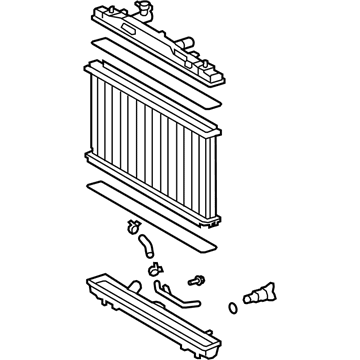

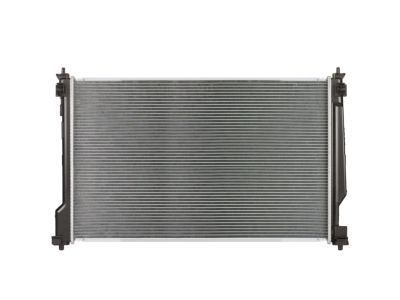

• Radiator Assembly
  16400-AD020
  Q: How to install the radiator assembly on Toyota Venza?

  A:

  Begin the radiator assembly installation by inserting the fan assembly with motor onto the radiator through its 2 bottom guides and 3 upper snap fits. After the radiator assembly installation involves mounting both fan assembly with motor on the radiator through the bottom guides and top snap fits. Then you should add the 2 lower radiator supports and 2 radiator support cushions before placing the radiator assembly and fan assembly with motor while being mindful to avoid damaging the cooler condenser assembly or pipe. Install the connector and harness clamps along the 4 connections. The installation of the cooler condenser assembly requires 4 bolts secured at 5.0 Nm (51 kgf-cm, 44 in-lbf) torque. The radiator setup requires installation of 5 bolts accompanied by attachment of the hood lock control cable clamp to the upper radiator support at 12 Nm (122 kgf-cm, 9 ft-lbf) torque. Swipe the radiator outlet and inlet No. 1 oil cooler hoses prior to mounting the No. 2 hose connecting between the engine block and radiator. Fasten down the No. 1 radiator hose and the outlet reserve tank hose to the radiator. The hood lock assembly with engine hood courtesy switch (if present) and both low and high pitched horn assemblies need installation before adding the radiator grille and its protector. After the installation of inlet air cleaner assembly follow engine coolant addition and make sure the cooling system remains leak-free. The automatic transaxle fluid inspection must be completed for U760F and U760E models before installing the No. 1 and No. 2 engine under covers with the cool air intake duct seal.
