OEM Toyota Tacoma Wiper Motor

Toyota Tacoma Wiper Motor Parts and Q&A

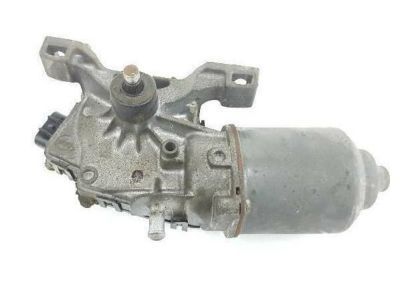

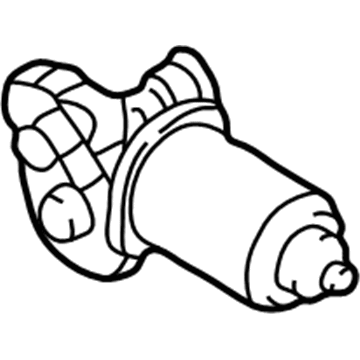

• Wiper Motor, Front
  85110-0K060
  Q: How to install the front wiper motor on Toyota Tacoma?

  A:

  You must use Denso No. 50 grease for the crank arm pivot of the windshield wiper motor assembly before installing the front wiper motor. A "Torx" socket wrench (T30) will securely fasten the windshield wiper motor assembly through 2 screws tightened to 7.5 Nm (76 kgf-cm, 66 in-lbf). Afterward, the 2 rods can be attached to the crank arm pivot. After sliding the wiper motor assembly towards the driver seat while its rubber pin connects to the body you can install the windshield wiper link assembly using 2 bolts which require torque to 5.5 Nm (56 kgf-cm, 49 in-lbf) before connecting the connector. You should install the cowl top ventilator louver sub-assembly by connecting both 15 claws and 2 clips. The front fender requires installation on the front edge of cowl side seal LH after following the same procedure on its counterpart RH side and securing it with two open hooks. The installation of the front wiper arm RH requires metal powder removal from the serration part with a round file then wiper pivot serration cleaning with a wire brush followed by wiper operation and windshield wiper motor stopping at automatic stop. Finally, install the front wiper arm RH with the nut while torquing it to 21 Nm (209 kgf-cm, 15 ft-lbf) and using hand pressure to secure the nut to the arm hinge. First clean front wiper arm LH and afterward install the nut with a torque of 21 Nm (209 kgf-cm, 15 ft-lbf). The installation requires checking for blade interference with the pillar during water or washer fluid use. After installing the 2 front wiper arm head caps you should connect the cable to the negative battery terminal while tightening it to 3.9 Nm (40 kgf-cm, 35 in-lbf) then activate the claw mechanism.

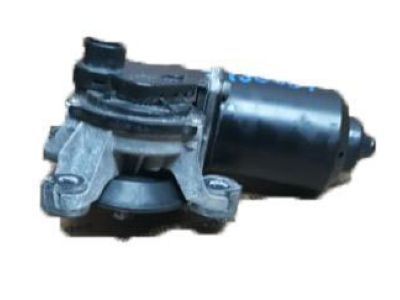

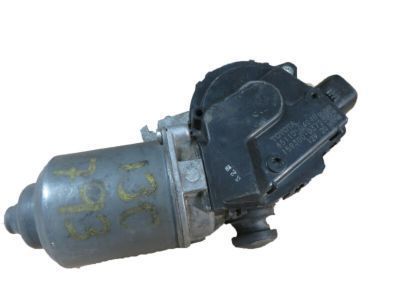

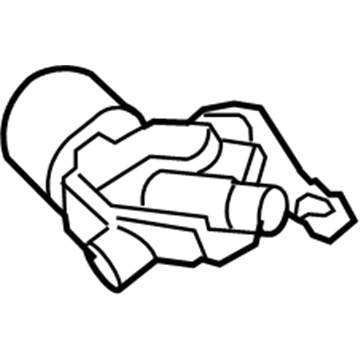

• Wiper Motor, Front
  85110-04040
  Q: How to remove the front wiper motor on Toyota Tacoma?

  A:

  The first step to remove the front wiper motor requires cable disconnection from the negative battery terminal. Begin by protecting the 2 front wiper arm head caps with taped screwdriver removal and stop the windshield wiper motor assembly at its automatic position using wiper operations before extracting the nut and front wiper arm LH. Follow the same process with the front wiper arm RH. The wiper arm remover procedure must be done again for the right side front wiper arm. Each front fender to cowl side seal needs its side-claw disconnection before removal while performing the same steps on the front fender to cowl side seal RH. You must first separate the 2 clips along with the 15 claws to release the cowl top ventilator louver sub-assembly. The windshield wiper motor assembly can be extracted by disconnecting its connector and removing the two bolts while the motor and link slide to the passenger seat area. Remove the assembly after dismantling the rubber pin meshing. To conclude this step use a screwdriver covered in tape before releasing the meshing between the 2 rods at the crank arm pivot of the windshield wiper motor assembly followed by using a 'Torx" socket wrench (T30) to remove the 2 screws and the windshield wiper motor assembly.
