How to install the drive belt on Toyota Solara?

Follow these steps to install the drive belt on a 2AZ-FE engine using Special Service Tool: 09249-63010 to rotate the V-ribbed belt tensioner clockwise by means of the tool which must be snug against the tensioner and other equipment while compressing it. Secondly, install the engine mounting bracket No.2 RH while using a torque of 52 Nm (531 kgf-cm, 38 ft-lbf) then install the engine mounting stay No.2 RH using a torque of 64 Nm (653 kgf-cm, 47 ft-lbf). Install the engine moving control rod with bracket through three bolts until it reaches 64 Nm (653 kgf-cm, 47 ft-lbf). The process ends with front wheel RH installation using a torque of 103 Nm (1,050 kgf-cm, 76 ft-lbf).

How to remove the drive belt on Toyota Solara?

The process to remove the drive belt from the 2AZ-FE engine starts with taking out the right-hand wheel and right-hand side front fender apron seal first. Remove the engine cover sub-assembly No.1 and the engine moving control rod with bracket by dispersing the three bolts. The next step removes the right-hand engine mounting stay No.2 along with engine mounting bracket No.2 on the right. To extract the V belt on the fan and generator use Special Service Tool: 09249-63010 for lowering the V-ribbed belt tensioner until the V belt becomes removable from each pulley then restore the tensioner to its starting position. During V-ribbed belt tensioner compression maintain firm contact of Special Service Tool and other tools on the tensioner and make gradual turns to prevent finger injuries from occurring between parts.

OEM Toyota Solara Drive Belt

Serpentine Belt

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Drive Belts found

View related parts

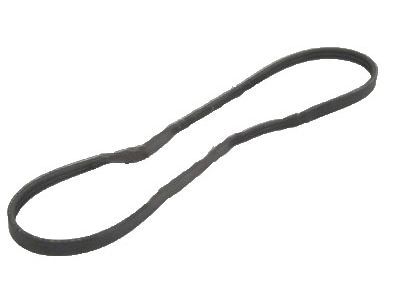

Toyota Solara Power Steering Belt
Part Number: 99363-30750
$9.91 MSRP: $13.79
You Save: $3.88 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Accessory Drive Belt; Serpentine Belt Drive Kit; Serpentine Belt; V-Belt; Belt, V(For Vane Pump); Drive Belt
- Manufacturer Note: L=750,MITSUBOSHI
- Replaces: 99363-80750, 99363-20750, 90080-91054, 99363-20750-83, 99363-90750
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2001 Toyota Solara | SE | 4 Cyl 2.2 L GAS
View related parts

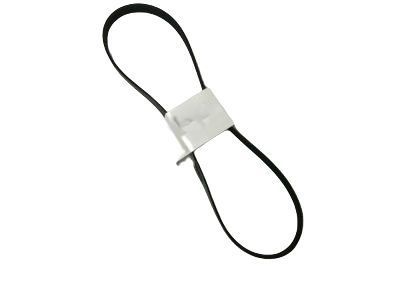

Toyota Solara Power Steering Belt
Part Number: 90080-91212
$16.00 MSRP: $22.27
You Save: $6.27 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Accessory Drive Belt; Serpentine Belt Drive Kit; Serpentine Belt; V-Belt; Belt, V(For Vane Pump); Drive Belt
- Manufacturer Note: L=880
- Replaces: 90080-91088, 99364-90880, 90080-91088-83
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2004 Toyota Solara | SE, SLE | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts

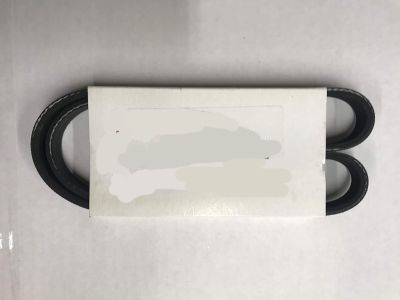

Toyota Solara Belt, V (Cooler Compressor To Crankshaft Pulley)
Part Number: 99366-31040
$26.76 MSRP: $37.25
You Save: $10.49 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Accessory Drive Belt; Serpentine Belt
- Replaces: 99366-21040-83, 99366-21040, 99366-D1040, 90080-91147
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2008 Toyota Solara | SE, SE Sport, SLE, Sport | 6 Cyl 3.3 L GAS
View related parts
Toyota Solara Serpentine Belt
Part Number: 90916-A2012
$51.73 MSRP: $72.01
You Save: $20.28 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Drive Belt; V-Belt; Belt, V(For Fan & Alternator)
- Manufacturer Note: (L)
- Replaces: 90916-A2008, 90080-91205, 90916-02598, 90916-T2014, 90916-02502
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2008, 2002-2003 Toyota Solara | SE, SLE, Sport | 4 Cyl 2.4 L GAS
View related parts
Toyota Solara Belt, V (Cooler Compressor To Crankshaft Pulley)
Part Number: 90916-02401
$24.96 MSRP: $34.75
You Save: $9.79 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Accessory Drive Belt; Serpentine Belt
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Solara | SE, SLE | 6 Cyl 3.0 L GAS
View related parts
Toyota Solara Serpentine Belt
Part Number: 90916-A2005
$37.39 MSRP: $52.04
You Save: $14.65 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Drive Belt; V-Belt; Belt, V(For Fan & Alternator)
- Manufacturer Note: (L)
- Replaces: 90916-02599
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Solara | SE, SE Sport, SLE | 4 Cyl 2.4 L GAS
View related parts
Toyota Solara Drive Belt
Part Number: 90080-91122-83
Product Specifications
- Other Name: V-Belt; Accessory Drive Belt; Serpentine Belt Drive Kit; Serpentine Belt; Alternator Belt; A/C Belt
- Replaces: 90080-91122, 99365-21100
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2001 Toyota Solara | SE | 4 Cyl 2.2 L GAS
View related parts
Toyota Solara Power Steering Belt
Part Number: 90916-A2009
Product Specifications
- Other Name: Belt, V-Ribbed; Accessory Drive Belt; Serpentine Belt Drive Kit; Serpentine Belt; V-Belt; Belt, V(For Vane Pump); Drive Belt
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SE Sport, SLE, Sport | 6 Cyl 3.3 L GAS

Toyota Solara Drive Belt

Choose genuine Drive Belt that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Drive Belt for your Toyota Solara? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Solara parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Drive Belt in Toyota Solara automobile is a very important belt that helps to transfer the power produced by the engine to other important parts like the alternator and air conditioning compressor. Usually, other parts of a car are coupled to the crankshaft pulley through a serpentine belt to help in transmitting power. The majority of Drive Belts for Solara cars will last approximately 100,000 miles before getting a replacement; nevertheless, cracking or fraying is the initial indication that their replacement should be done before additional issues affect at once both the parts and the engine. There are different types of Drive Belts used in various applications and the selections include V-type belts, multi-groove belts, and timing belts that have distinguishable attributes that incorporate traits such as high tractive force, elevated endurance, and exacting performance. Drive Belts do not transmit as much power as gears or chains, may slip, though they are inexpensive, easy to maintain and do not mind misalignments. But some complexities like the belts with too many teeth have been developed to reduce these problems and offer high rate performances in high or low temperatures.

Toyota Solara Drive Belt Parts and Q&A

Belt, V (Cooler Compressor To Crankshaft Pulley)
99366-31040
Q: How to install the drive belt on Toyota Solara?
A:
Follow these steps to install the drive belt on a 2AZ-FE engine using Special Service Tool: 09249-63010 to rotate the V-ribbed belt tensioner clockwise by means of the tool which must be snug against the tensioner and other equipment while compressing it. Secondly, install the engine mounting bracket No.2 RH while using a torque of 52 Nm (531 kgf-cm, 38 ft-lbf) then install the engine mounting stay No.2 RH using a torque of 64 Nm (653 kgf-cm, 47 ft-lbf). Install the engine moving control rod with bracket through three bolts until it reaches 64 Nm (653 kgf-cm, 47 ft-lbf). The process ends with front wheel RH installation using a torque of 103 Nm (1,050 kgf-cm, 76 ft-lbf).
Serpentine Belt
90916-A2012
Q: How to remove the drive belt on Toyota Solara?
A:
The process to remove the drive belt from the 2AZ-FE engine starts with taking out the right-hand wheel and right-hand side front fender apron seal first. Remove the engine cover sub-assembly No.1 and the engine moving control rod with bracket by dispersing the three bolts. The next step removes the right-hand engine mounting stay No.2 along with engine mounting bracket No.2 on the right. To extract the V belt on the fan and generator use Special Service Tool: 09249-63010 for lowering the V-ribbed belt tensioner until the V belt becomes removable from each pulley then restore the tensioner to its starting position. During V-ribbed belt tensioner compression maintain firm contact of Special Service Tool and other tools on the tensioner and make gradual turns to prevent finger injuries from occurring between parts.
