How to install the radiator on Toyota Solara?

The installation of the fan assembly to the radiator requires attaching with 3 bolts to achieve 5.0 Nm torque (51 kgf-cm, 44 in-lbf). Before moving on, install the radiator assembly onto the body after connecting its fan motor connector. The radiator support upper can be fastened using 4 bolts at 14 Nm (142 kgf-cm, 10 ft-lbf) torque while the 2 horn connectors should be connected. Two bolts should be used to attach the air cleaner inlet assembly where torque should be set to 5.0 Nm (51 kgf-cm, 44 in-lbf). After the hood sub-assembly adjustment it is necessary to add engine coolant followed by a complete leak inspection of the coolant system.

How to remove and replace the radiator on Toyota Solara?

Before starting radiator removal for the 2AZ-FE cooling system one must drain the engine coolant. Begin by disconnecting the radiator reserve tank hose or pipe and then proceed with removing the radiator hose inlet along with the radiator hose outlet. The technician must first adjust the oil cooler outlet hose No.2 (A/T) before removing oil cooler outlet hose No.3 (A/T). Start the radiator support lower bracket by removing its 2 supporting bolts. The radiator support upper requires removal after you disconnect two horn connectors and remove the hood lock release lever cover and the bolt shown in the illustration and then remove the four radiator support bolts. The radiator assembly requires removal of the fan motor connector as the first step before you can extract the component from the body. First remove the radiator support lower and finish the task by taking off the fan assembly through bolt removal.

OEM Toyota Solara Radiator

Cooling Radiator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Radiators found

View related parts

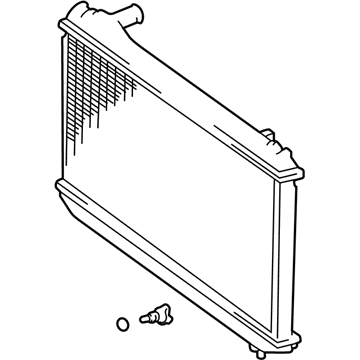

Toyota Solara Radiator Assembly, L/Cap
Part Number: 16410-AZ038
$113.69 MSRP: $159.33
You Save: $45.64 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: RADIATOR ASSY, MVP; Radiator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2003, 1999 Toyota Solara | SE, SLE | 6 Cyl 3.0 L GAS
View related parts

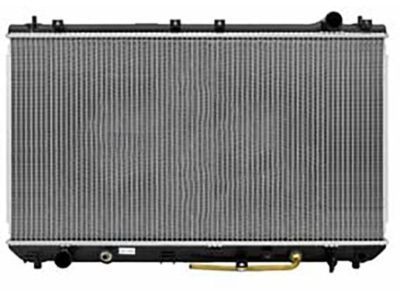

Toyota Solara Radiator Assembly
Part Number: 16410-AZ014
$112.48 MSRP: $157.64
You Save: $45.16 (29%)
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly, L/Cap; Radiator
- Replaces: 16400-0H030, 16410-YZZAF
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2008 Toyota Solara | SE, SE Sport, SLE, Sport | 4 Cyl 2.4 L GAS
View related parts

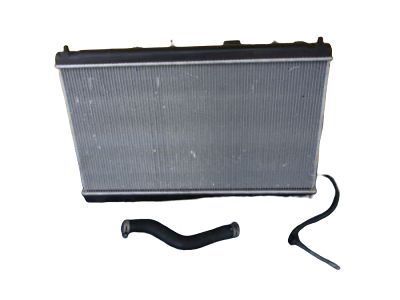

Toyota Solara Radiator Assembly
Part Number: 16410-AZ002
$90.08 MSRP: $126.25
You Save: $36.17 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly, L/Cap; Radiator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2001 Toyota Solara | SE | 4 Cyl 2.2 L GAS
View related parts

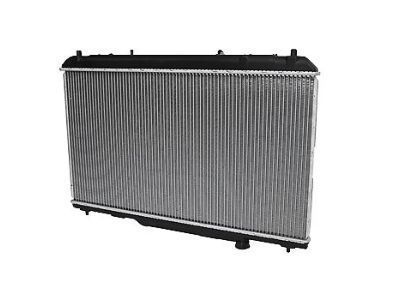

Toyota Solara Radiator Assembly, L/Cap
Part Number: 16410-AZ044
$121.03 MSRP: $171.06
You Save: $50.03 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: RADIATOR ASSY, MVP; Radiator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2008 Toyota Solara | SE, SE Sport, SLE, Sport | 6 Cyl 3.3 L GAS
View related parts

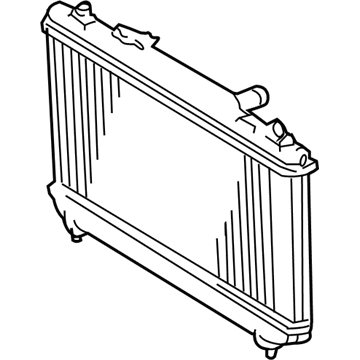

Toyota Solara Radiator Assembly
Part Number: 16410-AZ034
$138.97 MSRP: $196.42
You Save: $57.45 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly, L/Cap; Radiator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2003 Toyota Solara | SE, SLE | 6 Cyl 3.0 L GAS
View related parts
Toyota Solara Radiator Assembly
Part Number: 16400-0H200
$256.30 MSRP: $365.94
You Save: $109.64 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator
- Manufacturer Note: MARK=0H200 OR 0H011
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SE Sport, SLE, Sport | 4 Cyl 2.4 L GAS
View related parts
Toyota Solara Radiator
Part Number: 16400-0H020
$265.62 MSRP: $380.00
You Save: $114.38 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2008 Toyota Solara | SE, SLE, Sport | 4 Cyl 2.4 L GAS
View related parts
Toyota Solara Radiator Assembly
Part Number: 16400-0A420
$256.30 MSRP: $365.94
You Save: $109.64 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator
- Manufacturer Note: MARK OF RADIATOR = 0A420
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2008 Toyota Solara | SE, SLE, Sport | 6 Cyl 3.3 L GAS
View related parts
Toyota Solara Radiator Assembly
Part Number: 16410-YZZAH
Product Specifications
- Other Name: Radiator Assembly, L/Cap; Radiator
- Replaces: 16400-0H040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2003 Toyota Solara | SE | 4 Cyl 2.4 L GAS

Toyota Solara Radiator

Choose genuine Radiator that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Radiator for your Toyota Solara? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Solara parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Solara Radiator can be defined as an important component of the car's cooling system that exploits the heat of the engine coolant and distributes it to the surroundings by utilizing heat exchanger systems. Solara Radiators are mostly comprised of an aluminum core with a plastic or aluminum tank; although copper/brass models may also be purchased. By mounted in the front of the car, the radiator is able to get air through the grille to help with the dissipation of heat. Leakage is one of the most frequent failures in radiators that can be repaired using techniques like welding but replacement is usually the most effectively used remedy. While the performance radiators present better options than the factory ones, they are made of lightweight aluminium and are designed in a better way that enhances the cooling capacities. These radiators have bigger tubes and more fins to increase the heat transfer rate and keep the engine cool. A direct fit indicator is placed on the assemblies for simple bolt on installation although universal radiators are also offered. In conclusion, it will prevalent to assert that the Toyota Solara Radiators is a critical component of the car because it regulates the heat to allow for efficient cooling of the car's engine.

Toyota Solara Radiator Parts and Q&A

Radiator Assembly, L/Cap
16410-AZ044
Q: How to install the radiator on Toyota Solara?
A:
The installation of the fan assembly to the radiator requires attaching with 3 bolts to achieve 5.0 Nm torque (51 kgf-cm, 44 in-lbf). Before moving on, install the radiator assembly onto the body after connecting its fan motor connector. The radiator support upper can be fastened using 4 bolts at 14 Nm (142 kgf-cm, 10 ft-lbf) torque while the 2 horn connectors should be connected. Two bolts should be used to attach the air cleaner inlet assembly where torque should be set to 5.0 Nm (51 kgf-cm, 44 in-lbf). After the hood sub-assembly adjustment it is necessary to add engine coolant followed by a complete leak inspection of the coolant system.
Radiator Assembly
16400-0H200
Q: How to remove and replace the radiator on Toyota Solara?
A:
Before starting radiator removal for the 2AZ-FE cooling system one must drain the engine coolant. Begin by disconnecting the radiator reserve tank hose or pipe and then proceed with removing the radiator hose inlet along with the radiator hose outlet. The technician must first adjust the oil cooler outlet hose No.2 (A/T) before removing oil cooler outlet hose No.3 (A/T). Start the radiator support lower bracket by removing its 2 supporting bolts. The radiator support upper requires removal after you disconnect two horn connectors and remove the hood lock release lever cover and the bolt shown in the illustration and then remove the four radiator support bolts. The radiator assembly requires removal of the fan motor connector as the first step before you can extract the component from the body. First remove the radiator support lower and finish the task by taking off the fan assembly through bolt removal.
