How to install the windshield wiper motor assembly and Wiper Linkage on Toyota Prius?

Installation of the windshield wiper motor assembly starts by attaching the windshield wiper motor to the link through 3 bolts where torque reaches 5.4 Nm (55 kgf-cm, 48 in-lbf). Next install the crank arm after applying the washer and nut, while aligning the matchmarks between the crank arm and windshield wiper motor and torque the crank arm to 17 Nm (175 kgf-cm, 13 ft-lbf). The crank arm pivot requires MP grease before installing the windshield wiper link arm. The windshield wiper motor and link assembly requires 5 bolts for attachment and torque should be set to 5.5 Nm (56 kgf-cm, 49 in-lbf) while connector connections should be performed. The left-side front wiper arm LH installation requires rounding the wiper arm serration with a file and the wiper pivot serration with a wire brush before using the nut to secure the front wiper blade in its proper position and torquing it to 21 Nm (214 kgf-cm, 15 ft-lbf) while manually supporting the arm hinge. The same cleaning process should be applied to the front wiper arm RH before installing the 2 nuts to 21 Nm (214 kgf-cm, 15 ft-lbf) settings while verifying proper functioning through wiper tests with water or washer fluid to prevent any obstructive behavior. The installation of the cowl top ventilator louver RH requires you to attach 8 claws before installing the louver which needs a clip to complete the process. Rephrase this process to connect the cowl top ventilator louver on the left-hand side. Secure the cowl top hood seal by using 8 clips for attachment. The work requires connecting the cable to the negative battery terminal before performing initialization when some systems need this step upon negative (-) terminal cable reconnection.

OEM Toyota Prius Wiper Linkage

Wiper Blade

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Wiper Linkages found

View related parts

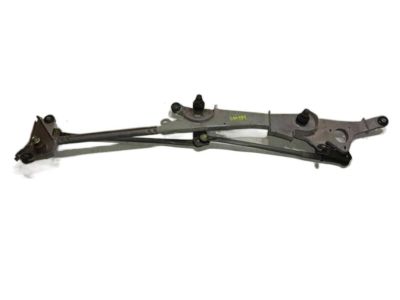

Toyota Prius Wiper Linkage, Front
Part Number: 85150-47140
$207.01 MSRP: $295.56
You Save: $88.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Front Wiper; Windshield Wiper Linkage; Front Transmission; Link Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2015 Toyota Prius | Base, Five, Four, One, Persona Series, Three, Two | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts

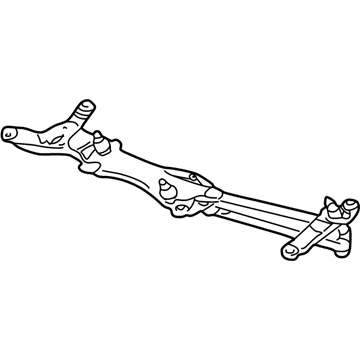

Toyota Prius Wiper Transmission, Front
Part Number: 85150-47070
$300.33 MSRP: $428.79
You Save: $128.46 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Front Wiper; Windshield Wiper Linkage; Wiper Linkage; Link Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2009 Toyota Prius | Base, Touring | 4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Wiper Transmission, Front
Part Number: 85150-47240
$262.11 MSRP: $374.24
You Save: $112.13 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Front Wiper; Wiper Linkage; Link Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Prius | LE, Limited, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Wiper Linkage, Front
Part Number: 85150-47200
$221.45 MSRP: $316.19
You Save: $94.74 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Front Wiper; Windshield Wiper Linkage; Front Transmission; Link Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2022 Toyota Prius | 2020 Edition, Four, Four Touring, L Eco, LE, Limited, One, Three, Three Touring, Two, Two Eco, XLE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Wiper Transmission, Front
Part Number: 85150-47030
$237.88 MSRP: $339.64
You Save: $101.76 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Front Wiper; Windshield Wiper Linkage; Linkage Assembly; Link Assembly, Windshield Wiper; Wiper Linkage
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Prius | Base | 4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV)

Toyota Prius Wiper Linkage

Choose genuine Wiper Linkage that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Wiper Linkage for your Toyota Prius? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Prius parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Prius Wiper Linkage is a system that can be well described as a component that manifests all the prime sides of Toyota. While this is one of the critical assemblies, it enables the translation of rotation force from the wipers motor to that of the wiper arms thus enabling the removal of any build-up of matters on the wind shield during investigations, especially under unpleasant weather conditions. Featuring a buildup of the Toyota Prius Wiper Linkage, the system is developed to be able to work with different generations of the Prius model. This compatibility increases general effectiveness and security of automotive vehicles, making it possible for drivers to have full visibility in different cases of operation. Cited under the model number, L500, the Toyota Prius receives much of its advantage from the Wiper Linkage, a component that is dependable for the vehicle's performance especially with its novel hybrid creating innovation. Specifically, the Toyota Prius Wiper Linkage is the most famous in the automotive market and characterised by a rather heavy and durable construction; it is connected to the electrical system that supplies the current when the switch is turned on to trigger the operation of the wipers. This makes the wipers to run smoothly adding on the comfort of driving a car. In addition, the Toyota Prius Wiper Linkage enhances energy preservation as it helps in achieving an efficient operational technique that accredits the Prius as the epitome of hybrid systems. All in all, mainly due to Toyota's commitment to creating a safe and efficient automobile, the Toyota Prius Wiper Linkage is a necessity for the Prius series of automobiles.

Toyota Prius Wiper Linkage Parts and Q&A

Wiper Transmission, Front
85150-47070
Q: How to install the windshield wiper motor assembly and Wiper Linkage on Toyota Prius?
A:
Installation of the windshield Wiper Motor assembly starts by attaching the windshield wiper motor to the link through 3 bolts where torque reaches 5.4 Nm (55 kgf-cm, 48 in-lbf). Next install the crank arm after applying the washer and nut, while aligning the matchmarks between the crank arm and windshield wiper motor and torque the crank arm to 17 Nm (175 kgf-cm, 13 ft-lbf). The crank arm pivot requires MP grease before installing the windshield wiper link arm. The windshield wiper motor and link assembly requires 5 bolts for attachment and torque should be set to 5.5 Nm (56 kgf-cm, 49 in-lbf) while connector connections should be performed. The left-side front wiper arm LH installation requires rounding the wiper arm serration with a file and the wiper pivot serration with a wire brush before using the nut to secure the front Wiper Blade in its proper position and torquing it to 21 Nm (214 kgf-cm, 15 ft-lbf) while manually supporting the arm hinge. The same cleaning process should be applied to the front wiper arm RH before installing the 2 nuts to 21 Nm (214 kgf-cm, 15 ft-lbf) settings while verifying proper functioning through wiper tests with water or washer fluid to prevent any obstructive behavior. The installation of the cowl top ventilator louver RH requires you to attach 8 claws before installing the louver which needs a clip to complete the process. Rephrase this process to connect the cowl top ventilator louver on the left-hand side. Secure the cowl top hood seal by using 8 clips for attachment. The work requires connecting the cable to the negative battery terminal before performing initialization when some systems need this step upon negative (-) terminal cable reconnection.
