Question 1

How to remove the power steering Rack And Pinion on Toyota Prius?

Accepted Answer

The power steering rack and pinion needs removal by setting the front wheels straight before disconnecting the negative battery cable for a minimum period of 90 seconds to avoid triggering Air Bags and seat belt pretensioners. If your system requires it the cable must be initialized following cable reconnection. Next, remove the column hole cover silencer sheet, then separate the steering sliding yoke sub-assembly by fixing the steering wheel with the seat belt to prevent rotation, marking the sliding yoke and intermediate shaft, loosening the bolt labeled A, and removing the bolt labeled B. Disconnect the No. 1 steering column hole cover sub-assembly by removing the clip labeled A and disconnecting the hole cover from the body, taking care not to damage the clip labeled B. Proceed to remove the front wheels, then disconnect the No. 2 tie rod end sub-assembly, followed by the No. 1 tie rod end sub-assembly using the same procedure. Follow the same removal process twice to take off the front stabilizer link assembly LH and RH as well as the front No. 1 stabilizer bracket LH and RH. To remove the steering intermediate shaft start by moving the No. 1 column hole cover to the top side of the car while marking the intermediate shaft and the rack and pinion then remove the bolt before pulling out the shaft from inside and completing the removal by taking off the No. 1 column hole cover from the rack and pinion without injuring the clip. The rack and pinion assembly should be removed by discharging the left-side 4 bolts while extracting the rack and pinion component without harming the stabilizer bar.

Question 2

How to service and repair the Rack And Pinion on Toyota Prius?

Accepted Answer

Begin rack and pinion servicing and repair by fixing the electric power rack and pinion assembly to a vise with Special Service Tool: 09612-00012 but avoid excessive force. The first step requires marking the tie rod ends before loosening their lock nuts to take them out alongside their respective tie rod ends then repeating this on opposite sides. The next step involves stripping away the RH and LH rack boots along with clamps and clips but preserve all components to ensure identification that avoids damaging the boots. When dealing with RH and LH rack ends you must unstake the claw washers using a screwdriver and hammer while protecting the rack and pinion then use Special Service Tool: 09922-10010 to remove the rack end by following illustrated directions. When the claw washer is extracted from the vehicle remove the earth wire by unscrewing its bolt. Reassembly occurs when you install the earth wire with the bolt which requires torque at 5.5 Nm (60 kgf-cm, 52 inch lbs.). Use new claw washers and start the rack ends but first align the claws through the rack and pinion grooves before torquing the rack end to 62 Nm (630 kgf-cm, 46 ft. lbs.) by using Special Service Tool: 09922-10010 according to the provided direction with a torque wrench that has a 380 mm (14.96 inch) fulcrum length. Fit a brass bar onto the claw washer before applying hammers but keep the impact away from the rack and pinion components while working on the second side as well. The rack and pinion hole requires a grease-free condition for RH and LH rack boots installation and their clips and clamps should be fitted without damaging or twisting the boot material. The last step involves clocking RH and LH tie rod ends together with their lock nuts and setting matchmarks while adjusting toe-in settings before executing the same steps on the other side.

OEM Toyota Prius Rack And Pinion

8 Rack And Pinions found

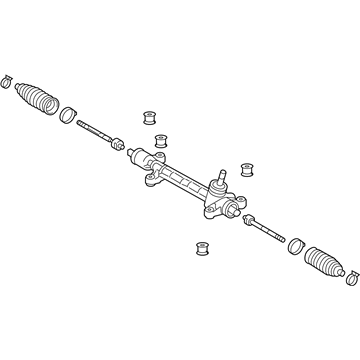

Toyota Prius Steering Gear, Front

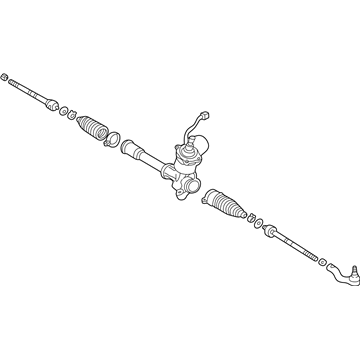

Toyota Prius Steering Gear, Front

Toyota Prius Gear Assembly

Toyota Prius Steering Gear

Toyota Prius Steering Gear

Toyota Prius Steering Gear

Toyota Prius Steering Gear

Toyota Prius Steering Gear

Toyota Prius Rack And Pinion
