How to install the fuel pressure regulator assembly on Toyota Land Cruiser?

Before installing the pressure regulator assembly you need to apply a light oil layer to a new O-ring which you must then place on the pressure regulator. Motorists need to check the delivery pipe's insertion hole for scratches and foreign material to stop damaging the O-ring when inserting the injector. Introduce the delivery pipe into place by securing two bolts with 10 Nm torque that equals 107 kgf-cm or 7 ft-lbf torque. The vacuum sensing hose should be attached to the pressure regulator and then secured with the No. 2 fuel tube. The air cleaner hose assembly should be installed before the V-bank cover sub-assembly. The last step includes connecting the cable to the negative terminal followed by a fuel leak check procedure.

How to remove the fuel pressure regulator on Toyota Land Cruiser?

The procedure for removing the fuel pressure regulator begins with discharging system fuel pressure first. The subsequent step demands removing the negative battery cable connection. Start by taking off the V-bank cover sub-assembly followed by disconnection of the air cleaner hose assembly. The first step focuses on fuel pressure regulator assembly uninstallation by detaching the No. 2 fuel tube from the pressure regulator while using a piece of cloth to absorb fuel leaks. Detach the vacuum sensing hose from the pressure regulator followed by removal of the two bolts that allows extraction of the pressure regulator. Take out the O-ring which is present on the pressure regulator.

OEM Toyota Land Cruiser Fuel Pressure Regulator

Fuel Tank Pressure Regulator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Fuel Pressure Regulators found

View related parts

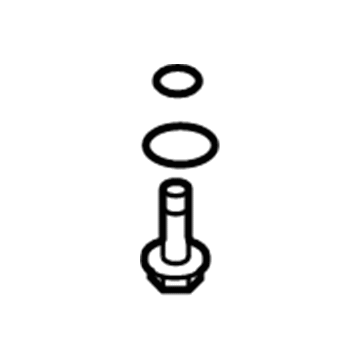

Toyota Land Cruiser Damper Assembly, Fuel Pressure Pulsation
Part Number: 23270-50012
$121.37 MSRP: $171.81
You Save: $50.44 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: DAMPER ASSY, FUEL PR; Fuel Pressure Damper; Fuel Pump Pulsator
- Replaces: 23270-50010, 23270-73010, 23270-50011
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts

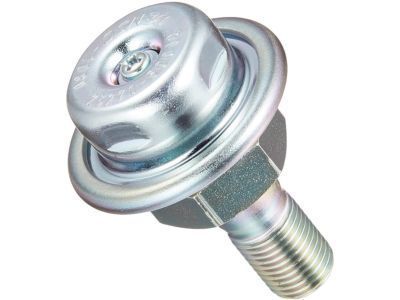

Toyota Land Cruiser Fuel Pressure Regulator
Part Number: 23280-75010
$130.65 MSRP: $184.95
You Save: $54.30 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Regulator Assembly, Fuel; Fuel Injection Pressure Regulator; Pressure Regulator; Regulator Assembly, Fuel Pressure
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1997 Toyota Land Cruiser | Base | 6 Cyl 4.5 L GAS
View related parts

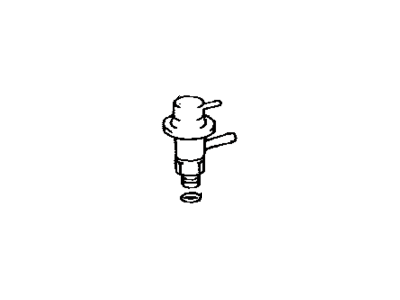

Toyota Land Cruiser Regulator Assembly, Fuel Pressure
Part Number: 23280-50050
$131.24 MSRP: $185.79
You Save: $54.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Regulator Assembly, Fuel; Fuel Injection Pressure Regulator; Fuel Pressure Regulator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Valve
Part Number: 23070-38010
$43.01 MSRP: $59.86
You Save: $16.85 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Fuel Main; Fuel Tank Vent Valve
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2011 Toyota Land Cruiser | Base | 8 Cyl 5.7 L GAS
View related parts

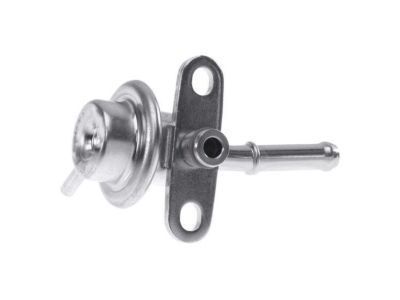

Toyota Land Cruiser Fuel Pressure Regulator
Part Number: 23280-38011
$105.45 MSRP: $148.03
You Save: $42.58 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Regulator Assembly, Fuel; Fuel Injection Pressure Regulator; Pressure Regulator; Regulator Assembly, Fuel Pressure
- Replaces: 23280-38010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2021, 2008-2011 Toyota Land Cruiser | Base, Heritage Edition | 8 Cyl 5.7 L GAS
View related parts

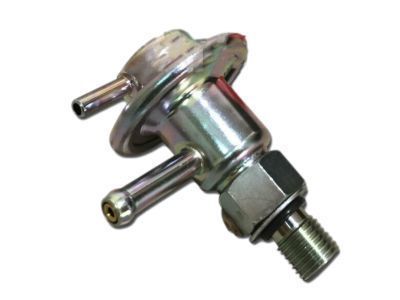

Toyota Land Cruiser Fuel Pressure Regulator
Part Number: 23280-61010
Product Specifications
- Other Name: Regulator Assembly, Fuel; Fuel Injection Pressure Regulator; Pressure Regulator; Regulator Assembly, Fuel Pressure
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1992 Toyota Land Cruiser | Base | 6 Cyl 4.0 L GAS

Toyota Land Cruiser Fuel Pressure Regulator

Choose genuine Fuel Pressure Regulator that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Fuel Pressure Regulator for your Toyota Land Cruiser? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Land Cruiser parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Land Cruiser Fuel Pressure Regulator is an essential part that also establishes the dependability and quality that the Toyota Land Cruiser name carries. This essential device in the car regulates fuel pressure in the electronic fuel injection system so that the engine can get the right amount of fuel regardless of the condition. Usually it is positioned on the fuel rail, and the Toyota Land Cruiser Fuel Pressure Regulator utilizes spring and the diaphragm mechanism that provides the restricted fuel flow in relation to the existing vacuum in the engine, thus increasing fuel efficiency and safety. At idle condition vacuum is high enough to induce a return flow of fuel to the tank, while at acceleration condition, vacuum is reduced to generate enough pressure to meet engine requirement. The Toyota Land Cruiser has witnessed different types of Fuel Pressure Regulators over the producer's years of production ranging from adjustable types for modified fuel systems mainly to suit the Land Cruiser lovers. While OEM regulators are highly recommended, they may have some restriction especially when large injectors or high volumes pumps are used thus the attractiveness of upgraded regulators. These regulators come in billet aluminum and other strong materials; these are commonly found in the automotive market owing to their flexibility in customization. Options for other models of the Land Cruiser also make them more desirable, to guarantee that the driver can retain the legendary power and reliability of his or her Toyota Land Cruiser. Finally, the Toyota Land Cruiser Fuel Pressure Regulator also helps in controlling and in enhancing the performance of the engine, that's why it is very significant in each of the Land Cruiser model.

Toyota Land Cruiser Fuel Pressure Regulator Parts and Q&A

Valve
23070-38010
Q: How to install the fuel pressure regulator assembly on Toyota Land Cruiser?
A:
Before installing the pressure regulator assembly you need to apply a light oil layer to a new O-ring which you must then place on the pressure regulator. Motorists need to check the delivery pipe's insertion hole for scratches and foreign material to stop damaging the O-ring when inserting the injector. Introduce the delivery pipe into place by securing two bolts with 10 Nm torque that equals 107 kgf-cm or 7 ft-lbf torque. The vacuum sensing hose should be attached to the pressure regulator and then secured with the No. 2 fuel tube. The air cleaner hose assembly should be installed before the V-bank cover sub-assembly. The last step includes connecting the cable to the negative terminal followed by a fuel leak check procedure.
Fuel Pressure Regulator
23280-38011
Q: How to remove the fuel pressure regulator on Toyota Land Cruiser?
A:
The procedure for removing the fuel pressure regulator begins with discharging system fuel pressure first. The subsequent step demands removing the negative battery cable connection. Start by taking off the V-bank cover sub-assembly followed by disconnection of the air cleaner hose assembly. The first step focuses on fuel pressure regulator assembly uninstallation by detaching the No. 2 fuel tube from the pressure regulator while using a piece of cloth to absorb fuel leaks. Detach the vacuum sensing hose from the pressure regulator followed by removal of the two bolts that allows extraction of the pressure regulator. Take out the O-ring which is present on the pressure regulator.
