How to remove the front cross-member on Toyota Highlander?

The first step to remove the front cross-member includes pulling out the engine assembly with transaxle. The same method should be used to remove the No. 1 front stabilizer bracket LH and then the equivalent RH bracket. The procedure requires operators to remove the front stabilizer bar together with its front stabilizer link assembly and finally the power steering link assembly. The installation of engine hangers should be followed by removing the front frame assembly with the transverse engine mounting insulator. Following the initial step of the front lower suspension arm removal process you should start with the LH arm followed by the RH arm using the same standard method. Use Semi-Circle Locking Admin Tool 09830-10010 to remove two bolts securing the dynamic damper of the front suspension member. Then unfasten the front suspension member body mounting front stopper and rear stopper and front cushion with Special Service Tool: 09830-10010. Follow this procedure when using Special Service Tool: 09830-10010 by placing tool claws on the mounting cushion before tightening the clamps at a steady pace while being alert because the cushion will escape and cannot be reused. Use Special Service Tool: 09830-10010 to eliminate the front suspension member body mounting rear cushion LH after which you should proceed to remove the front suspension member body mounting rear cushion RH while using the same method.

How to install the Front Cross-Member and related components on Toyota Highlander?

Install the front suspension member through these steps: position initially the rear cushion LH with its proper orientation then use Service Tool 09830-10010 to fasten it while verifying no space exists between the component and the cushion. Perform the same procedure for installing the front suspension member body mounting rear cushion RH. Perform the installation steps on the front suspension body mounting rear cushion RH while using the same installation tool. To continue mount the front suspension member body mounting front cushion temporarily while checking its direction before using Special Service Tool: 09830-10010 to fasten it down while ensuring there is no clearance left. Secure the front suspension member body mounting rear stopper and front stopper then add the front suspension member dynamic damper by tightening two bolts to 29 Nm (296 kgf-cm, 21 ft-lbf). The installation of front lower suspension arm LH and RH should be completed one at a time by using the same methods on each side. The transverse engine mounting insulator installation takes place with the front frame assembly for the 2GR-FE engine while the 1AR-FE engine gets the front frame assembly addition. The 2GR-FE requires removal of its hangers as well as detachment of engine hanger No.1 on the 1AR-FE. The power steering link assembly must be installed first with front stabilizer bar and front stabilizer link assembly before adding No. 1 front stabilizer bracket LH and RH while using identical procedures for both sides. The process of engine assembly with transaxle installation ends by installing both 2GR-FE and 1AR-FE engines together.

OEM Toyota Highlander Front Cross-Member

Front Engine Cross Member

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

29 Front Cross-Members found

View related parts

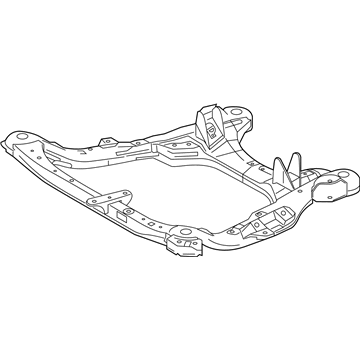

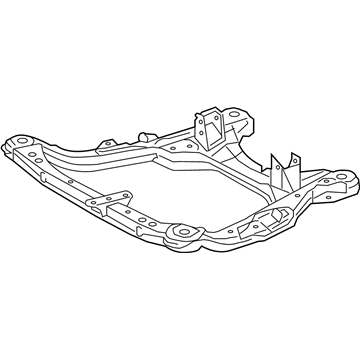

Toyota Highlander Engine Cradle, Front
Part Number: 51100-48074
$1351.32 MSRP: $1980.37
You Save: $629.05 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Frame Assembly, Front; Engine Cradle, Front; Crossmember
- Position: Front
- Replaces: 51100-48072, 51100-48073, 51100-48071, 51100-48070, 51100-28031
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts

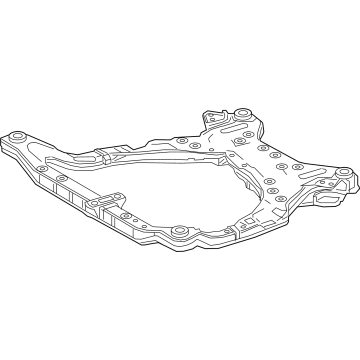

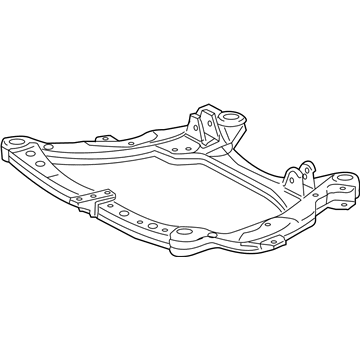

Toyota Highlander Engine Cradle, Front
Part Number: 51100-0E032
$1101.48 MSRP: $1614.24
You Save: $512.76 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Frame Assembly, Front
- Position: Front
- Replaces: 51100-0E030, 51100-0E031
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Highlander | Base, Limited, Plus, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Crossmember, Front
Part Number: 51100-0E061
$1062.98 MSRP: $1557.81
You Save: $494.83 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: FRAME ASSY, FR; Frame Assembly, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014 Toyota Highlander | Hybrid Limited, LE, LE Plus, Limited, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Front Crossmember
Part Number: 57452-48041
$74.79 MSRP: $104.97
You Save: $30.18 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: MEMBER, FR FLOOR CRO; Center Crossmember; Crossmember; Member, Front Floor Cross
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010 Toyota Highlander | Hybrid, Hybrid Limited | 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Highlander Front Crossmember
Part Number: 57450-0E010
$129.47 MSRP: $183.28
You Save: $53.81 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Member Assembly, Front Floor; Floor Pan Crossmember, Front; Member, Front Floor Cross
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2019 Toyota Highlander | Base, LE, LE Plus, Limited, Limited Platinum, Plus, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Member, Front Floor Cross
Part Number: 57453-0E050
$127.95 MSRP: $181.12
You Save: $53.17 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Member, Front Floor Cross Member
- Position: Front
- Replaces: 57453-48010, 57453-48011
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019, 2001-2010 Toyota Highlander | Base, Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, Sport, XLE | 4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Rear Reinforcement, Front Driver Side
Part Number: 57459-0E040
$114.81 MSRP: $161.17
You Save: $46.36 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Member, Front Floor Cross Member; Floor Pan Reinforcement, Center Left, Rear Left; Seat Crossmember; Crossmember Extension; Member, Front Floor Cross
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Member, Front Floor Cross, Driver Side
Part Number: 57459-48014
$100.18 MSRP: $140.62
You Save: $40.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Member, Front Floor Cross Member
- Position: Front Driver Side
- Replaces: 57459-48011, 57459-48010, 57459-48012
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2004 Toyota Highlander | Base, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Member, Front Floor Cross Side, Passenger Side
Part Number: 57453-48020
$127.86 MSRP: $181.01
You Save: $53.15 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Member, Front Floor Cross Member; Member, Front Floor Cross
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2013 Toyota Highlander | Hybrid, Hybrid Limited | 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Highlander Front Crossmember
Part Number: 57452-0E030
$118.06 MSRP: $165.73
You Save: $47.67 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Member, Front Floor Cross Member; Floor Pan Crossmember, Front; Member, Front Floor Cross
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2019 Toyota Highlander | Base, Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, Plus, SE, Sport, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Front Crossmember
Part Number: 57452-48040
$146.66 MSRP: $207.62
You Save: $60.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Member, Front Floor Cross Member; Floor Pan Crossmember, Center; Crossmember; Member, Front Floor Cross
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2009 Toyota Highlander | Hybrid, Hybrid Limited | 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Highlander Engine Cradle, Front
Part Number: 51100-0E063
$1351.32 MSRP: $1980.37
You Save: $629.05 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Frame Assembly, Front; Engine Cradle, Front; Crossmember
- Position: Front
- Replaces: 51100-0E062
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Engine Cradle, Front
Part Number: 51100-0E081
$1623.04 MSRP: $2378.58
You Save: $755.54 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Frame Assembly, Front; Suspension Subframe Crossmember, Front; Crossmember
- Position: Front
- Replaces: 51100-0E080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2022 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Crossmember, Front
Part Number: 51100-28030
$829.73 MSRP: $1215.98
You Save: $386.25 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: FRAME ASSY; Frame Assembly, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Highlander | Base, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Highlander Engine Cradle, Front
Part Number: 51100-0E131
$1481.84 MSRP: $2171.66
You Save: $689.82 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Frame Assembly, Front; Crossmember
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Highlander Frame Assembly, Front
Part Number: 51100-48061
$1484.57 MSRP: $2175.66
You Save: $691.09 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Front
- Replaces: 51100-48060, 51100-48040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2010 Toyota Highlander | Hybrid, Hybrid Limited | 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Highlander Crossmember, Front
Part Number: 57452-48031
Product Specifications
- Other Name: Member, Front Floor Cross Member; Floor Pan Crossmember, Front; Member, Front Floor Cross
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2009 Toyota Highlander | Base, Limited, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Member, Front Floor Cross
Part Number: 57452-48010
Product Specifications
- Other Name: Member, Front Floor Cross Member
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Highlander | Base, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Highlander Crossmember, Front
Part Number: 57452-48020
Product Specifications
- Other Name: Member, Front Floor Cross Member; Member, Front Floor Cross
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Highlander | Base, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Highlander Lower Tie Bar, Front
Part Number: 57104-48030
Product Specifications
- Other Name: Member Sub-Assembly, Front; Radiator Support Tie Bar, Front Lower; Member Sub-Assembly, Front Cross
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2007 Toyota Highlander | Hybrid, Hybrid Limited | 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)

| Page 1 of 2 |Next >

1-20 of 29 Results

Toyota Highlander Front Cross-Member

Choose genuine Front Cross-Member that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Front Cross-Member for your Toyota Highlander? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Highlander parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Highlander Front Cross-Member stands as a crucial structural element which improves both reliability and performance characteristics in the vehicle. The Front Cross-Member acts as a strong support for the transmission and engine to maintain Highlander stability when operating the vehicle thus delivering a pleasant driving experience. Manufactured from strong steel materials the Front Cross-Member receives bolt installation under a vehicle for managing body panel alignment and handling. Different Highlander model types use distinct Front Cross-Member designs which comply with different engine plans for maintaining their structural performance. The distinctive K-frame design with its section gives the system superior strength that distinguishes it from competitors in the automotive sector. Customers who choose the Toyota Highlander can get either five- or seven-seat vehicles which provide selectable front-wheel drive and all-wheel drive systems for their preferences. As a core component the Front Cross-Member enhances Highlander efficiency along with safety levels to fulfill multiple road situations. The Toyota Highlander hybrid models bring advanced technologies to market while improving functionality with Front Cross-Member structures. The Toyota model Front Cross-Member serves as an essential component that provides the vehicle with reliable performance alongside safety features thereby earning its positive recognition among families and adventurers.

Toyota Highlander Front Cross-Member Parts and Q&A

Seat Crossmember, Front Passenger Side
57458-48012
Q: How to remove the front cross-member on Toyota Highlander?
A:
The first step to remove the front cross-member includes pulling out the engine assembly with transaxle. The same method should be used to remove the No. 1 front stabilizer bracket LH and then the equivalent RH bracket. The procedure requires operators to remove the front stabilizer bar together with its front stabilizer link assembly and finally the power steering link assembly. The installation of engine hangers should be followed by removing the front frame assembly with the transverse engine mounting insulator. Following the initial step of the front lower suspension arm removal process you should start with the LH arm followed by the RH arm using the same standard method. Use Semi-Circle Locking Admin Tool 09830-10010 to remove two bolts securing the dynamic damper of the front suspension member. Then unfasten the front suspension member body mounting front stopper and rear stopper and front cushion with Special Service Tool: 09830-10010. Follow this procedure when using Special Service Tool: 09830-10010 by placing tool claws on the mounting cushion before tightening the clamps at a steady pace while being alert because the cushion will escape and cannot be reused. Use Special Service Tool: 09830-10010 to eliminate the front suspension member body mounting rear cushion LH after which you should proceed to remove the front suspension member body mounting rear cushion RH while using the same method.
Frame Assembly, Front
51100-48061
Q: How to install the Front Cross-Member and related components on Toyota Highlander?
A:
Install the front suspension member through these steps: position initially the rear cushion LH with its proper orientation then use Service Tool 09830-10010 to fasten it while verifying no space exists between the component and the cushion. Perform the same procedure for installing the front suspension member body mounting rear cushion RH. Perform the installation steps on the front suspension body mounting rear cushion RH while using the same installation tool. To continue mount the front suspension member body mounting front cushion temporarily while checking its direction before using Special Service Tool: 09830-10010 to fasten it down while ensuring there is no clearance left. Secure the front suspension member body mounting rear stopper and front stopper then add the front suspension member dynamic damper by tightening two bolts to 29 Nm (296 kgf-cm, 21 ft-lbf). The installation of front lower suspension arm LH and RH should be completed one at a time by using the same methods on each side. The transverse engine mounting insulator installation takes place with the front frame assembly for the 2GR-FE engine while the 1AR-FE engine gets the front frame assembly addition. The 2GR-FE requires removal of its hangers as well as detachment of engine hanger No.1 on the 1AR-FE. The power steering link assembly must be installed first with front stabilizer bar and front stabilizer link assembly before adding No. 1 front stabilizer bracket LH and RH while using identical procedures for both sides. The process of engine assembly with transaxle installation ends by installing both 2GR-FE and 1AR-FE engines together.

Related Toyota Highlander Parts

Browse Toyota Highlander Front Cross-Member by Years

2023 2022 2021 2020 2019 2018 2017 2016 2015 2014 2013 2012 2011 2010 2009 2008 2007 2006 2005 2004 2003 2002 2001
