How to properly install the Drive Belt on Toyota Highlander?

Place the V-ribbed belt onto all engine pulleys except the tensioner pulley before starting the installation process of the 2GR-FE engine. The V-ribbed belt tensioner assembly counterclockwise rotation is performed using Special Service Tool: 09961-00950 to remove the bar. When installation proves challenging use counterclockwise motion to release tension from the tensioner assembly pulley while fitting the belt onto its surface and the No. 2 idler pulley sub-assembly making sure the belt is correctly positioned on each component. Check that the belt sits properly within the ribbed grooves and remains inside the grooves on the crankshaft pulley bottom while performing manual verification. Proceed with installing the front fender apron seal RH and then add the front fender liner RH together with the front fender moulding sub-assembly RH. Install front fender moulding sub-assembly by cleaning parts, heating both surfaces, stripping the release paper and securing the 3 clips through 4 mm hexagon wrench screw connection. Last, install the Number One engine under cover along with the engine under cover assembly before torquing the torque the front wheel RH to 103 Nm (1050 kgf-cm, 76 ft-lbf).

How to remove the drive belt on Toyota Highlander?

The first step to remove the drive belt starts with taking off the front wheel RH and continuing with the removal of the No. 1 engine under cover. Start by removing the front fender side protector then proceed to disengage the 3 clips while unscrewing with a 4 mm hexagon wrench and taking out the pad and 2 No. 4 clips from the front fender moulding sub-assembly RH. After the front fender liner RH and the front fender apron seal RH need to be removed. The process to extract the V-ribbed belt requires applying a wrench to the hexagonal portion of the belt tensioner followed by rotating it clockwise for removal of the belt.

OEM Toyota Highlander Drive Belt

Serpentine Belt

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Drive Belts found

View related parts

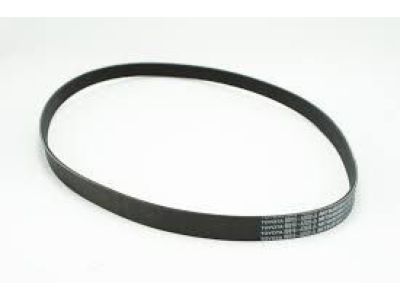

Toyota Highlander Serpentine Belt
Part Number: 99367-K1550
$43.73 MSRP: $60.87
You Save: $17.14 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Drive Belt; V-Belt; Belt, V(For Fan & Alternator)
- Replaces: 99367-C1550
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2010 Toyota Highlander | Base, Limited, SE, Sport | 6 Cyl 3.5 L GAS
View related parts

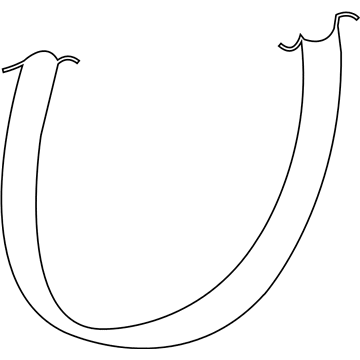

Toyota Highlander Serpentine Belt
Part Number: 90916-A2005
$37.39 MSRP: $52.04
You Save: $14.65 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Drive Belt; V-Belt; Belt, V(For Fan & Alternator)
- Manufacturer Note: (L)
- Replaces: 90916-02599
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Highlander | Base | 4 Cyl 2.4 L GAS
View related parts

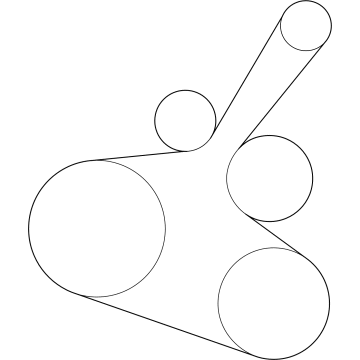

Toyota Highlander Belt, V (Cooler Compressor To Crankshaft Pulley)
Part Number: 99366-31040
$26.76 MSRP: $37.25
You Save: $10.49 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Accessory Drive Belt; Serpentine Belt
- Replaces: 99366-21040-83, 99366-21040, 99366-D1040, 90080-91147
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Highlander | Base, Limited, Sport | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts

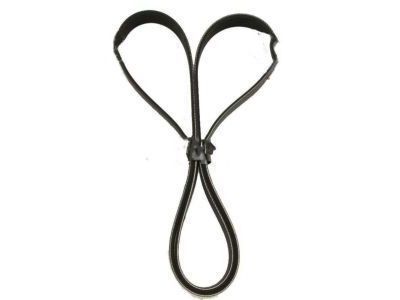

Toyota Highlander Belt, V(For Fan & Alternator)
Part Number: 90916-A2019
$47.19 MSRP: $65.68
You Save: $18.49 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Serpentine Belt; Drive Belt; V-Belt
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2016 Toyota Highlander | Base, LE, LE Plus, Limited, Plus, SE, Sport, XLE | 6 Cyl 3.5 L GAS
View related parts

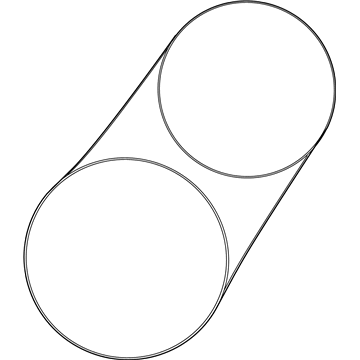

Toyota Highlander Power Steering Belt
Part Number: 90080-91212
$16.00 MSRP: $22.27
You Save: $6.27 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Accessory Drive Belt; Serpentine Belt Drive Kit; Serpentine Belt; V-Belt; Belt, V(For Vane Pump); Drive Belt
- Manufacturer Note: L=880
- Replaces: 90080-91088, 99364-90880, 90080-91088-83
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Highlander | Base, Limited, Sport | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Belt, V(For Fan & Alternator)
Part Number: 90916-A2026
$40.74 MSRP: $56.70
You Save: $15.96 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Serpentine Belt; Drive Belt; V-Belt
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2017-2022 Toyota Highlander | L, LE, LE Plus, Limited, Limited Platinum, Platinum, SE, XLE, XSE | 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Serpentine Belt
Part Number: 90916-A2020
$24.96 MSRP: $34.75
You Save: $9.79 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Accessory Drive Belt; Drive Belt; V-Belt; Belt, V(For Fan & Alternator)
- Replaces: 90916-02646, 90916-02645
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2019 Toyota Highlander | Base, LE, Plus, SE | 4 Cyl 2.7 L GAS
View related parts
Toyota Highlander Serpentine Belt
Part Number: 99367-K0810
$22.81 MSRP: $31.75
You Save: $8.94 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Drive Belt; V-Belt
- Replaces: 99367-C0810
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2016 Toyota Highlander | Hybrid, Hybrid Limited | 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Highlander Serpentine Belt
Part Number: 90916-A2030
$33.57 MSRP: $46.72
You Save: $13.15 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Alternator Belt; Belt, V(For Fan & Alternator)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Highlander | L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS
View related parts
Toyota Highlander Belt, V(For Fan & Alternator)
Part Number: 90916-02729
$5.84 MSRP: $8.14
You Save: $2.30 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt, V-Ribbed; Serpentine Belt Drive Kit; Serpentine Belt; Drive Belt; V-Belt
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2017-2019 Toyota Highlander | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE | 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV)

Toyota Highlander Drive Belt

Choose genuine Drive Belt that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Drive Belt for your Toyota Highlander? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Highlander parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Drive Belt in Toyota Highlander is an integral component that holds the engine's responsibility for operating major parts like the alternator, and the A/C compressor. Usually, all these parts are snaked in with a serpentine belt, which in turn is linked to the crankshaft pulley to ensure the all-important power transferring is carried out maximally. It is recommended that most Drive Belts in Highlander are replaced after 100 000 miles to reduce the chances of affecting the parts as well as the engine greatly. Drive Belts, including V-belts and timing belts, provide multiple features like enhanced friction, higher product strength, and non-stick design as per the particular demand in the vehicle's mechanical system. In conclusion, the Drive Belts are very important components in Toyota Highlander vehicles that determine the proper functioning of the automobiles.

Toyota Highlander Drive Belt Parts and Q&A

Serpentine Belt
99367-K1550
Q: How to properly install the Drive Belt on Toyota Highlander?
A:
Place the V-ribbed belt onto all engine pulleys except the tensioner pulley before starting the installation process of the 2GR-FE engine. The V-ribbed belt tensioner assembly counterclockwise rotation is performed using Special Service Tool: 09961-00950 to remove the bar. When installation proves challenging use counterclockwise motion to release tension from the tensioner assembly pulley while fitting the belt onto its surface and the No. 2 idler pulley sub-assembly making sure the belt is correctly positioned on each component. Check that the belt sits properly within the ribbed grooves and remains inside the grooves on the crankshaft pulley bottom while performing manual verification. Proceed with installing the front fender apron seal RH and then add the front fender liner RH together with the front fender moulding sub-assembly RH. Install front fender moulding sub-assembly by cleaning parts, heating both surfaces, stripping the release paper and securing the 3 clips through 4 mm hexagon wrench screw connection. Last, install the Number One engine under cover along with the engine under cover assembly before torquing the torque the front wheel RH to 103 Nm (1050 kgf-cm, 76 ft-lbf).
Serpentine Belt
90916-A2020
Q: How to remove the drive belt on Toyota Highlander?
A:
The first step to remove the drive belt starts with taking off the front wheel RH and continuing with the removal of the No. 1 engine under cover. Start by removing the front fender side protector then proceed to disengage the 3 clips while unscrewing with a 4 mm hexagon wrench and taking out the pad and 2 No. 4 clips from the front fender moulding sub-assembly RH. After the front fender liner RH and the front fender apron seal RH need to be removed. The process to extract the V-ribbed belt requires applying a wrench to the hexagonal portion of the belt tensioner followed by rotating it clockwise for removal of the belt.
