How to service and repair the Neutral Safety Switch on Toyota Celica?

The first step to work on the Transmission Position Switch/Sensor requires air cleaner assembly uninstallation. Begin by disconnecting the park/neutral position switch connector after which workers must remove the park/neutral position switch through the sequential removal of the nut before removing the nut with washer along with the control shot lever. The procedure starts by using a screwdriver to prise away the lock plate followed by detaching the nut and lock plate and removing the two bolts which will pull out the park/neutral position switch. Install the park/neutral position switch through its two bolts while keeping the torque force at 5.4 Nm (55 kgf-cm, 48 inch lbs.). Screw the new lock plate with its associated nut to a torque force of 6.9 Nm (70 kgf-cm, 61 inch lbs.) and afterward bend the lock plate claws to secure the nut. Refer to the install manual to apply 13 Nm (130 kgf-cm, 9 ft. lbs.) torque for the nut while connecting the control cable to the control shaft using 12 Nm (120 kgf-cm, 9 ft. lbs.) torque force. After connecting the park/neutral position switch connector check the position operation to verify engine start-up limitation to N or P settings. Additional adjustment procedures should be performed if start-up is not restricted correctly. The last step involved installing the air cleaner assembly before performing a test drive of the vehicle.

OEM Toyota Celica Neutral Safety Switch

Transmission Neutral Safety Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Neutral Safety Switches found

View related parts

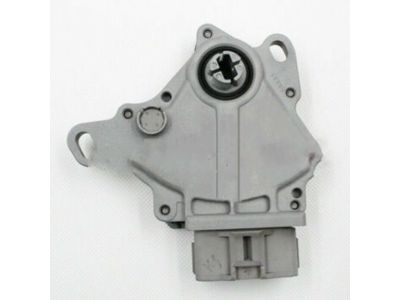

Toyota Celica Neutral Safety Switch
Part Number: 84540-06010
$144.51 MSRP: $204.57
You Save: $60.06 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Neutral; Range Sensor; Switch Assembly, Neutral Start
- Manufacturer Note: (L)
- Replaces: 84540-12230, 84540-32110
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-52050
$143.93 MSRP: $203.75
You Save: $59.82 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Neutral; Switch Assembly, Neutral Start
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-20220
$177.88 MSRP: $253.97
You Save: $76.09 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Neutral; Switch Assembly, Neutral Start
- Manufacturer Note: MATSUSHITA
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1999 Toyota Celica | GT, ST | 4 Cyl 1.8 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-12210
$163.08 MSRP: $230.86
You Save: $67.78 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Neutral; Switch Assembly, Neutral Start
- Manufacturer Note: MATSUSHITA
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1997 Toyota Celica | GT, ST | 4 Cyl 1.8 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84520-24010
$65.26 MSRP: $91.60
You Save: $26.34 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Clutch; Clutch Starter Safety Switch; Starter Safety Switch; Safety Switch; Clutch Switch; Switch; Switch Assembly, Clutch Start
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-16040
$131.45 MSRP: $186.08
You Save: $54.63 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Neutral; Back Up Light Switch; Back-Up Switch; Switch Assembly, Neutral Start
- Replaces: 84540-32080, 84540-32070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1989 Toyota Celica | GTS | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-22171
Product Specifications
- Other Name: Switch Assembly, Neutral
- Replaces: 84540-22170
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota Celica | Supra | 6 Cyl 2.8 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-12170
Product Specifications
- Other Name: Switch Assembly, Neutral; Switch Assembly, Neutral Start
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1993 Toyota Celica | GT, GTS | 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-32050
Product Specifications
- Other Name: Switch Assembly, Neutral; Back Up Light Switch; Back-Up Switch; Switch Assembly, Neutral Start
- Manufacturer Note: MATSUSHITA
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1987 Toyota Celica | GTS | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-16030
Product Specifications
- Other Name: Switch Assembly, Neutral; Back Up Light Switch; Back-Up Switch; Switch Assembly, Neutral Start
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1993 Toyota Celica | GT, ST | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-14100
Product Specifications
- Other Name: Switch Assembly, Neutral; Back Up Light Switch; Back-Up Switch; Switch Assembly, Neutral Start
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota Celica | GT, GTS, ST | 4 Cyl 2.4 L GAS
View related parts
Toyota Celica Neutral Safety Switch
Part Number: 84540-12160
Product Specifications
- Other Name: Switch Assembly, Neutral; Switch Assembly, Neutral Start
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1987 Toyota Celica | GT, ST | 4 Cyl 2.0 L GAS

Toyota Celica Neutral Safety Switch

If you're thinking about purchasing OEM parts for your Toyota Celica, our website is your one-stop destination. We stock an extensive selection of genuine Toyota Celica Neutral Safety Switch at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota Celica Neutral Safety Switch Parts Questions & Experts Answers

Neutral Safety Switch
84520-24010
Q: How to service and repair the Neutral Safety Switch on Toyota Celica?
A: The first step to work on the Transmission Position Switch/Sensor requires air cleaner assembly uninstallation. Begin by disconnecting the park/neutral position switch connector after which workers must remove the park/neutral position switch through the sequential removal of the nut before removing the nut with washer along with the control shot lever. The procedure starts by using a screwdriver to prise away the lock plate followed by detaching the nut and lock plate and removing the two bolts which will pull out the park/neutral position switch. Install the park/neutral position switch through its two bolts while keeping the torque force at 5.4 Nm (55 kgf-cm, 48 inch lbs.). Screw the new lock plate with its associated nut to a torque force of 6.9 Nm (70 kgf-cm, 61 inch lbs.) and afterward bend the lock plate claws to secure the nut. Refer to the install manual to apply 13 Nm (130 kgf-cm, 9 ft. lbs.) torque for the nut while connecting the control cable to the control shaft using 12 Nm (120 kgf-cm, 9 ft. lbs.) torque force. After connecting the park/neutral position switch connector check the position operation to verify engine start-up limitation to N or P settings. Additional adjustment procedures should be performed if start-up is not restricted correctly. The last step involved installing the air cleaner assembly before performing a test drive of the vehicle.
