How to remove the Control Arm step by step on Toyota Camry?

The removal process of rear suspension components begins with checking and removing old gaskets on the pipe before changing any rusted bolts or nuts. Start with the procedure by taking out the rear wheel before progressing to separate center exhaust pipe assemblies for the 2AZ-FE or the tail exhaust pipe assemblies for the 2GR-FE followed by the center exhaust pipe assembly for the 2GR-FE. The next step involves disconnecting the rear stabilizer link assembly LH by taking out the nut and applying a 5 mm hexagon wrench to stabilize the stud if the ball joint turns during nut removal. Use the same method for removing parts from the RH side. Start by removing the rear stabilizer bar No. 2 bracket, then proceed with the rear stabilizer bar No. 1 bracket followed by the removal of the rear stabilizer bar together with its rear stabilizer bushing. Begin by splitting the rear strut rod before unbolting the rear No. 2 suspension arm on the LH side by removing both hardware while maintaining the nut from turning; perform the same steps for the RH side. The process to remove rear No. 1 suspension arm bolts begins by keeping the rotating nut in place on both the LH and RH sides. To proceed with the removal start by taking out the 2 nuts securing the rear suspension member stopper LH and RH. A jack should support the rear suspension member before removing the 2 bolts to extract the rear suspension member sub-assembly and followed by extracting the rear No. 1 suspension arm LH by removing its bolt.

How to replace the control arm and install the assembly with the transaxle on Toyota Camry?

Start the control arm replacement by taking out the engine assembly combined with the transaxle. The replacement of the transverse engine mounting insulator on A/T transaxle requires you to remove the 3 nuts and the insulator. To work on the M/T transaxle first remove its 3 nuts followed by the insulator before taking away the 4 bolts and bracket from the manual transmission. Begin by removing the 2 bolts from the front side followed by the bolt and nut from the rear side of the front suspension arm sub-assembly lower No. 1 LH which allows you to detach this assembly with the front lower arm bush stopper. The installation of front suspension arm sub-assembly lower No. 1 LH requires front lower arm bush stopper attachment followed by bolting the sub-assembly to the front side with 2 bolts at 200 Nm (2,039 kgf-cm, 148 ft. lbs.) before torquing the bolt and nut at the rear side to 206 Nm (2,101 kgf-cm, 152 ft. lbs.). When fitting the M/T transaxle you need to install its transverse engine mounting insulator with 3 nuts at 87 Nm (887 kgf-cm, 64 ft. lbs.) before using 4 bolts to mount the bracket onto the manual transmission at 64 Nm (653 kgf-cm, 47 ft. lbs.) and finally retightening the 3 nuts at 87 Nm (887 kgf-cm, 64 ft. lbs.). End the procedure by mounting the engine assembly with transaxle for both 2AZ-FE and 1MZ-FE engine models.

OEM Toyota Camry Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

32 Control Arms found

View related parts

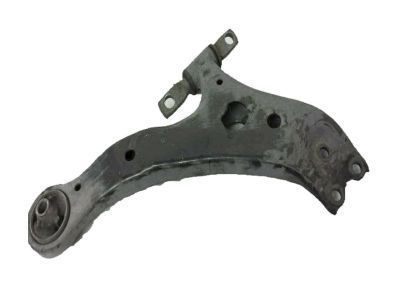

Toyota Camry Lower Control Arm, Front Passenger Side
Part Number: 48068-33031
$245.23 MSRP: $350.13
You Save: $104.90 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Front Right Control Arm; Track Control Arm
- Position: Front Passenger Side
- Replaces: 48068-06040, 48068-33030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-2001 Toyota Camry | CE, LE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts

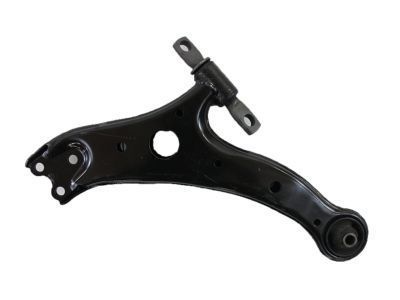

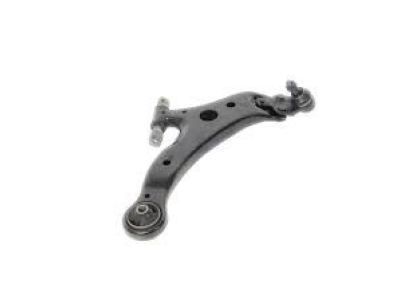

Toyota Camry Arm Sub-Assembly, Suspension
Part Number: 48069-33031
$245.23 MSRP: $350.13
You Save: $104.90 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ARM SUB-ASSY, SUSPEN; Suspension Control Arm; Control Arm
- Position: Front Driver Side
- Replaces: 48069-06040, 48069-33030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-2001 Toyota Camry | CE, LE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts

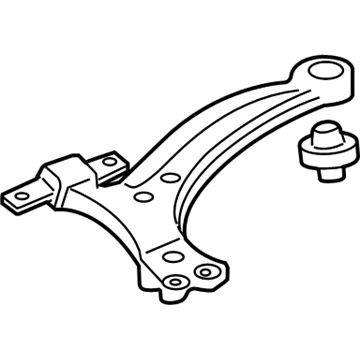

Toyota Camry Control Arm, Passenger Side
Part Number: 48068-06170
$174.12 MSRP: $246.49
You Save: $72.37 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right; Control Arm Assembly; Lower Control Arm; Arm Sub-Assembly, Front Suspension, Lower Passenger Side
- Manufacturer Note: MEXICO SPEC
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2013 Toyota Camry | Hybrid LE, Hybrid XLE, L, LE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Control Arm, Passenger Side
Part Number: 48068-06070
$193.96 MSRP: $276.93
You Save: $82.97 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right; Control Arm Assembly; Lower Control Arm; Arm Sub-Assembly, Front Suspension, Lower Passenger Side; Suspension Control Arm
- Position: Passenger Side
- Replaces: 48068-33050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2006 Toyota Camry | Base, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Control Arm, Lower Driver Side
Part Number: 48069-06070
$186.50 MSRP: $266.29
You Save: $79.79 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Left; Control Arm Assembly; Lower Control Arm; Arm Sub-Assembly, Front Suspension, Lower Driver Side; Suspension Control Arm
- Position: Lower Driver Side
- Replaces: 48069-33050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2006 Toyota Camry | Base, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Control Arm, Passenger Side
Part Number: 48068-06160
$186.74 MSRP: $266.61
You Save: $79.87 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right; Control Arm Assembly; Lower Control Arm; Arm Sub-Assembly, Front Suspension, Lower Passenger Side; Suspension Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2013 Toyota Camry | SE | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Lower Control Arm, Passenger Side
Part Number: 48068-07030
$193.96 MSRP: $276.93
You Save: $82.97 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm; Control Arm Assembly; Control Arm; Arm Sub-Assembly, Front Suspension, Lower Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Camry | CE, LE, SE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Lower Control Arm, Driver Side
Part Number: 48069-07030
$193.96 MSRP: $276.93
You Save: $82.97 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Left; Control Arm Assembly; Arm Sub-Assembly, Front Suspension, Lower Driver Side; Suspension Control Arm; Control Arm
- Position: Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Camry | CE, LE, SE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Control Arm, Rear
Part Number: 48710-33060
$131.95 MSRP: $186.80
You Save: $54.85 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Rear Suspension; Suspension Control Arm; Lateral Link; Lateral Arm; Front Lateral Arm
- Position: Rear
- Replaces: 48710-06010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Camry | CE, LE, SE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Control Arm, Lower Driver Side
Part Number: 48069-06170
$174.12 MSRP: $246.49
You Save: $72.37 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Left; Control Arm Assembly; Lower Control Arm; Arm Sub-Assembly, Front Suspension, Lower Driver Side
- Manufacturer Note: MEXICO SPEC
- Position: Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2013 Toyota Camry | Hybrid LE, Hybrid XLE, L, LE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Lower Control Arm, Rear Driver Side
Part Number: 48720-20090
$162.57 MSRP: $230.15
You Save: $67.58 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Rear Suspension; Lateral Link; Control Arm; Lateral Arm; Front Control Arm; Front Arm; Front Lateral Link
- Position: Rear Driver Side
- Replaces: 48720-20050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1987-1991 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Lower Control Arm, Passenger Side
Part Number: 48068-32020
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Control Arm; Arm Sub-Assembly, Front Suspension, Lower Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota Camry | DLX, LE | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Toyota Camry Lower Control Arm, Passenger Side
Part Number: 48068-32011
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Control Arm; Arm Sub-Assembly, Front Suspension, Lower Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota Camry | DLX, LE | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Toyota Camry Lower Control Arm, Driver Side
Part Number: 48069-32011
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Control Arm; Arm Sub-Assembly, Front Suspension, Lower Driver Side
- Position: Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota Camry | DLX, LE | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Toyota Camry Lower Control Arm, Driver Side
Part Number: 48069-32020
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Control Arm; Arm Sub-Assembly, Front Suspension, Lower Driver Side
- Position: Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota Camry | DLX, LE | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Toyota Camry Lower Control Arm, Rear Passenger Side
Part Number: 48710-20220
Product Specifications
- Other Name: Arm Assembly, Rear Suspension; Lateral Link; Control Arm; Lateral Arm; Front Control Arm; Front Arm; Front Lateral Link
- Position: Rear Passenger Side
- Replaces: 48710-20060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1987-1991 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Arm Sub-Assembly, Front Suspension, Lower Driver Side
Part Number: 48640-32040
Product Specifications
- Other Name: Arm Assembly, Suspension Lower Left; Control Arm
- Position: Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1987-1991 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Arm Sub-Assembly, Front Suspension, Lower Passenger Side
Part Number: 48620-32040
Product Specifications
- Other Name: Arm Assembly, Suspension Lower Right; Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1987-1991 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Lower Control Arm, Driver Side
Part Number: 48069-33020
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm; Control Arm Assembly; Track Control Arm; Control Arm; Arm Sub-Assembly, Front Suspension, Lower Driver Side
- Manufacturer Note: (J)
- Position: Lower Driver Side
- Replaces: 48069-06010, 48069-07010, 48069-33010, 48069-06050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1996 Toyota Camry | DLX, DX, LE, SE, XLE | 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Arm Sub-Assembly, Front Suspension, Lower Passenger Side
Part Number: 48068-33020
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm; Control Arm
- Manufacturer Note: (J)
- Position: Passenger Side
- Replaces: 48068-06050, 48068-07010, 48068-33010, 48068-06010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1996 Toyota Camry | DLX, DX, LE, SE, XLE | 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS

| Page 1 of 2 |Next >

1-20 of 32 Results

Toyota Camry Control Arm

Choose genuine Control Arm that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Control Arm for your Toyota Camry? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Camry parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Control Arm of Toyota Camry cars is a suspension part that links the frame of the car to the wheels so that it is able to move smoothly over uneven terrains. These arms are produced in a number of styles and thicknesses, some made out of stamped steel while others are made from cast iron or aluminum to increase strength and longevity. Control arms or wishbones play a crucial role in the areas of alignment, management, stability and even run out of the wheels and tires. It can corrode and be damaged by impacts so for their effective working they often require periodic renewal of such parts as for example bushings or ball joints. Power control arms can also be bought for those who would want more control, especially at high speeds or for upgraded automobiles. On the same note, control arm bushings can be replaced one at a time if they develop any problems and to suit any road conditions.

Toyota Camry Control Arm Parts and Q&A

Control Arm, Lower Driver Side
48069-06150
Q: How to remove the Control Arm step by step on Toyota Camry?
A:
The removal process of rear suspension components begins with checking and removing old gaskets on the pipe before changing any rusted bolts or nuts. Start with the procedure by taking out the rear wheel before progressing to separate center Exhaust Pipe assemblies for the 2AZ-FE or the tail exhaust pipe assemblies for the 2GR-FE followed by the center exhaust pipe assembly for the 2GR-FE. The next step involves disconnecting the rear stabilizer link assembly LH by taking out the nut and applying a 5 mm hexagon wrench to stabilize the stud if the ball joint turns during nut removal. Use the same method for removing parts from the RH side. Start by removing the rear stabilizer bar No. 2 bracket, then proceed with the rear stabilizer bar No. 1 bracket followed by the removal of the rear stabilizer bar together with its rear stabilizer bushing. Begin by splitting the rear strut rod before unbolting the rear No. 2 suspension arm on the LH side by removing both hardware while maintaining the nut from turning; perform the same steps for the RH side. The process to remove rear No. 1 suspension arm bolts begins by keeping the rotating nut in place on both the LH and RH sides. To proceed with the removal start by taking out the 2 nuts securing the rear suspension member stopper LH and RH. A jack should support the rear suspension member before removing the 2 bolts to extract the rear suspension member sub-assembly and followed by extracting the rear No. 1 suspension arm LH by removing its bolt.
Control Arm, Passenger Side
48068-06070
Q: How to replace the control arm and install the assembly with the transaxle on Toyota Camry?
A:
Start the control arm replacement by taking out the engine assembly combined with the transaxle. The replacement of the transverse engine mounting insulator on A/T transaxle requires you to remove the 3 nuts and the insulator. To work on the M/T transaxle first remove its 3 nuts followed by the insulator before taking away the 4 bolts and bracket from the manual transmission. Begin by removing the 2 bolts from the front side followed by the bolt and nut from the rear side of the front suspension arm sub-assembly lower No. 1 LH which allows you to detach this assembly with the front lower arm bush stopper. The installation of front suspension arm sub-assembly lower No. 1 LH requires front lower arm bush stopper attachment followed by bolting the sub-assembly to the front side with 2 bolts at 200 Nm (2,039 kgf-cm, 148 ft. lbs.) before torquing the bolt and nut at the rear side to 206 Nm (2,101 kgf-cm, 152 ft. lbs.). When fitting the M/T transaxle you need to install its transverse engine mounting insulator with 3 nuts at 87 Nm (887 kgf-cm, 64 ft. lbs.) before using 4 bolts to mount the bracket onto the manual transmission at 64 Nm (653 kgf-cm, 47 ft. lbs.) and finally retightening the 3 nuts at 87 Nm (887 kgf-cm, 64 ft. lbs.). End the procedure by mounting the engine assembly with transaxle for both 2AZ-FE and 1MZ-FE engine models.
