How to service the front wiper motor on Toyota Avalon?

The process of servicing front wiper motors starts with LH windshield wiper arm removal after unfastening the nut followed by identical RH windshield wiper arm removal. Removal of the cowl top ventilator louver is achieved by disengaging its 12 clips from the right-hand side. The service begins by disconnecting the connector then removing four bolts until you can take out the windshield wiper motor and link assembly. With tape-covered screwdriver intervene between the rod of the wiper link assembly and the windshield wiper motor assembly then unscrew the 3 bolts to detach the wiper link assembly. Begin the installation process by attaching the windshield wiper link assembly through three bolts which need to be torqued to 7.5 N.m (76 kgf.cm, 66 in.lbf) and then connect its rod component. Install the windshield wiper motor and link assembly through 4 bolts while tightening the bolts to 7.0 N.m (71 kgf.cm, 62 in.lbf). Afterwards reattach the connector. After stopping the wiper with automatic control perform cleaning on wiper and pivot surfaces with a wire brush before tightening the FR wiper arm and blade assembly RH using hand-held arm hinge restraint while locking the nut to 20 N.m (209 kgf.cm, 15 ft.lbf). After cleaning both wiper components again, install the left FR wiper assembly together with its nut but apply torque to 20 N.m (209 kgf.cm, 15 ft.lbf) while supporting the arm hinge manually.

OEM Toyota Avalon Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Wiper Motors found

View related parts

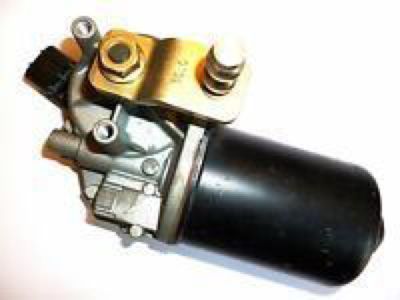

Toyota Avalon Wiper Motor, Front
Part Number: 85110-AC010
$127.71 MSRP: $180.79
You Save: $53.08 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2012 Toyota Avalon | Base, Limited, Touring, XL, XLS | 6 Cyl 3.5 L GAS
View related parts

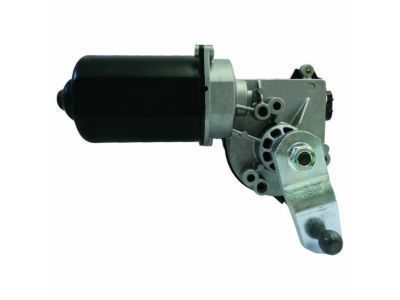

Toyota Avalon Wiper Motor, Front
Part Number: 85110-06190
$145.81 MSRP: $206.40
You Save: $60.59 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015-2018 Toyota Avalon | Hybrid Limited, Hybrid XLE Plus, Hybrid XLE Premium, Hybrid XLE Touring, Limited, Touring, XLE, XLE Plus, XLE Premium, XLE Touring, XLE Touring SE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Wiper Motor, Front
Part Number: 85110-06120
$180.10 MSRP: $257.14
You Save: $77.04 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Front Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2015 Toyota Avalon | Hybrid Limited, Hybrid XLE, Hybrid XLE Premium, Hybrid XLE Touring, Limited, XLE, XLE Premium, XLE Touring, XLE Touring SE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Wiper Motor, Front
Part Number: 85110-33432
$145.81 MSRP: $206.40
You Save: $60.59 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Front Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Replaces: 85110-33430
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota Avalon | Hybrid Limited, Hybrid XLE, Hybrid XSE, Hybrid XSE Nightshade, Limited, Touring, TRD, XLE, XSE, XSE Nightshade | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Wiper Motor, Front
Part Number: 85110-07010
$183.77 MSRP: $262.37
You Save: $78.60 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Motor Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Wiper Motor, Front
Part Number: 85110-07030
Product Specifications
- Other Name: Motor Assembly, Front Wiper; Windshield Wiper Motor; Motor; Motor Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS

Toyota Avalon Wiper Motor

If you're thinking about purchasing OEM parts for your Toyota Avalon, our website is your one-stop destination. We stock an extensive selection of genuine Toyota Avalon Wiper Motor at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota Avalon Wiper Motor Parts Questions & Experts Answers

Wiper Motor, Front
85110-AC010
Q: How to service the front wiper motor on Toyota Avalon?
A: The process of servicing front wiper motors starts with LH windshield wiper arm removal after unfastening the nut followed by identical RH windshield wiper arm removal. Removal of the cowl top ventilator louver is achieved by disengaging its 12 clips from the right-hand side. The service begins by disconnecting the connector then removing four bolts until you can take out the windshield wiper motor and link assembly. With tape-covered screwdriver intervene between the rod of the wiper link assembly and the windshield wiper motor assembly then unscrew the 3 bolts to detach the wiper link assembly. Begin the installation process by attaching the windshield wiper link assembly through three bolts which need to be torqued to 7.5 N.m (76 kgf.cm, 66 in.lbf) and then connect its rod component. Install the windshield wiper motor and link assembly through 4 bolts while tightening the bolts to 7.0 N.m (71 kgf.cm, 62 in.lbf). Afterwards reattach the connector. After stopping the wiper with automatic control perform cleaning on wiper and pivot surfaces with a wire brush before tightening the FR wiper arm and blade assembly RH using hand-held arm hinge restraint while locking the nut to 20 N.m (209 kgf.cm, 15 ft.lbf). After cleaning both wiper components again, install the left FR wiper assembly together with its nut but apply torque to 20 N.m (209 kgf.cm, 15 ft.lbf) while supporting the arm hinge manually.
