How to install the rear shock absorber with coil spring on Toyota Avalon?

After setting the 3 upper-side nuts in position temporarily you should torque them in sequence from 1 to 3 to 39 Nm (400 kgf-cm, 29 ft-lbf). The installation requires bolt and nut attachment to the shock absorber with coil spring before tightening to 180 Nm (1,836 kgf-cm, 133 ft-lbf) while the top shock absorber nut should achieve 55 Nm (561 kgf-cm, 41 ft-lbf) if the shock absorber remains non-disassembled. Finally, attach the rear suspension support No. 1 cover LH. Complete the flexible hose installation by fastening it with the skid control sensor wire through two bolts where Bolt A should receive torque of 19 Nm (195 kgf-cm, 14 ft-lbf) and Bolt B requires 5.5 Nm (56 kgf-cm, 49 in-lbf). Secure the rear stabilizer link assembly LH to the shock absorber through a nut torqued to 39 Nm (400 kgf-cm, 29 ft-lbf) but only if the ball joint turns with the stud place a 5 mm hexagon wrench on the stud during nut torquing. Fasten the rear wheel before securing it to 103 Nm (1,050 kgf-cm, 76 ft-lbf) torque. You should conduct final inspections of rear wheel alignment and perform necessary adjustments.

How to remove and replace the rear shock absorber with coil spring on Toyota Avalon?

The replacement of a rear shock absorber with coil spring requires first removing the rear seat cushion assembly then detaching the rear seat headrest plate cover LH and rear seat headrest assembly before finally removing the rear seatback assembly. To start the process begin by taking off the rear wheel while using a jack to securely support the rear axle carrier. When working on the rear stabilizer link assembly LH it is necessary to separate the components by first removing the nut then disconnecting the stabilizer link from the shock absorber while using a hexagon wrench (5 mm) to maintain the stud when the ball joint moves with the nut removal. The shock absorber receives two bolts removal for flexible hose detachment which allows separation of the flexible hose and skid control sensor wire. Keep the 2 shock absorber lower nuts slightly loose without taking out the 2 bolts and 2 nuts. You should remove the rear suspension support No. 1 cover LH but keep the LH support suspension center nut loose instead of removing it because shock absorber disassembly is not necessary. The shock absorber removal process requires first lowering the rear axle carrier by removing its 3 nuts followed by taking out the shock absorber with coil spring by removing its 2 nuts and 2 bolts on the lower side.

OEM Toyota Avalon Shock Absorber

Suspension Shock Absorber

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

46 Shock Absorbers found

View related parts

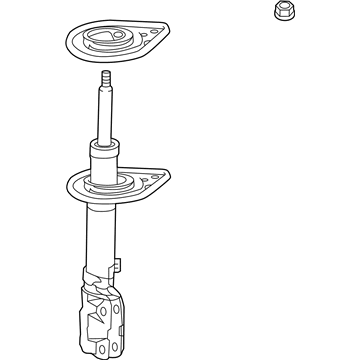

Toyota Avalon Strut, Rear Passenger Side
Part Number: 48530-09D60
$169.31 MSRP: $239.67
You Save: $70.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Rear Right Suspension Strut; Complete Strut Kit; Shock Absorber; Absorber Assembly, Shock, Rear Passenger Side
- Manufacturer Note: MARK 48530-07110,SPORTS PACKAGE
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2006 Toyota Avalon | Touring, XL | 6 Cyl 3.5 L GAS
View related parts

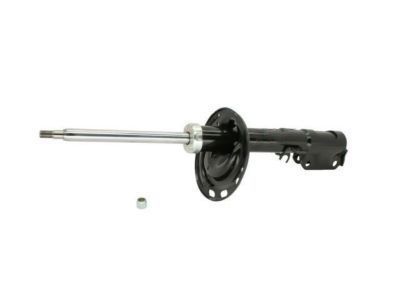

Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-09580
$159.67 MSRP: $226.04
You Save: $66.37 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Rear Left Suspension Strut; Complete Strut Kit; Shock Absorber; Absorber Assembly, Shock, Rear Driver Side
- Manufacturer Note: MARK 48540-07100
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2006 Toyota Avalon | Limited, XL, XLS | 6 Cyl 3.5 L GAS
View related parts

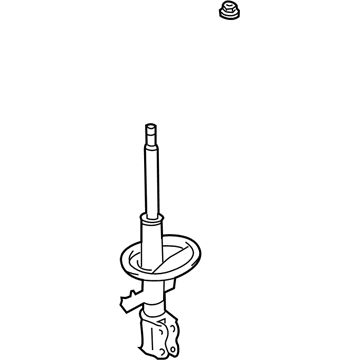

Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-09860
$159.67 MSRP: $226.04
You Save: $66.37 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock; Rear Left Suspension Strut; Strut Assembly Kit; Complete Strut; Shock Absorber; Absorber Assembly, Shock, Rear Driver Side
- Manufacturer Note: MARK 48540-07112,SPORTS PACKAGE
- Position: Rear Driver Side
- Replaces: 48540-09720
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2007 Toyota Avalon | Touring, XL | 6 Cyl 3.5 L GAS
View related parts

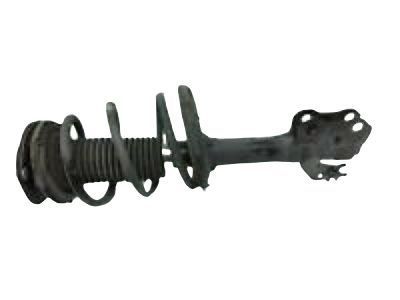

Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-09590
$167.66 MSRP: $237.34
You Save: $69.68 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Rear Left Suspension Strut; Complete Strut Kit; Shock Absorber; Absorber Assembly, Shock, Rear Driver Side
- Manufacturer Note: MARK 48540-07110,SPORTS PACKAGE
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2007 Toyota Avalon | Touring, XL | 6 Cyl 3.5 L GAS
View related parts

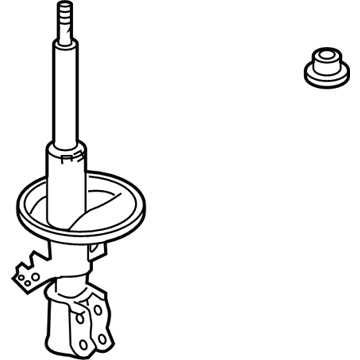

Toyota Avalon Strut, Front Driver Side
Part Number: 48520-8Z159
$134.88 MSRP: $190.93
You Save: $56.05 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock; Suspension Strut, Front Left; Shock Absorber; Absorber Assembly, Shock, Front Driver Side
- Manufacturer Note: MARK 48520-07150
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota Avalon | Touring | 6 Cyl 3.5 L GAS
View related parts

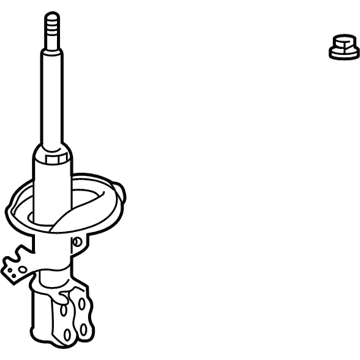

Toyota Avalon Strut, Rear Passenger Side
Part Number: 48530-80582
$151.45 MSRP: $214.39
You Save: $62.94 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Suspension Strut, Rear Right; Shock Absorber; Absorber Assembly, Shock, Rear Passenger Side
- Manufacturer Note: MARK 48530-47150
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2015 Toyota Avalon | Hybrid Limited, Hybrid XLE, Hybrid XLE Premium, Hybrid XLE Touring | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts

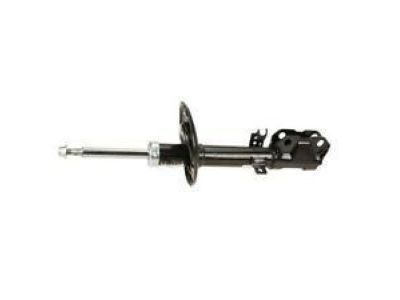

Toyota Avalon Strut, Rear Passenger Side
Part Number: 48530-A9260
$165.55 MSRP: $234.35
You Save: $68.80 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Suspension Strut, Rear Right; Shock Absorber; Absorber Assembly, Shock, Rear Passenger Side
- Manufacturer Note: MARK 48530-AC030
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

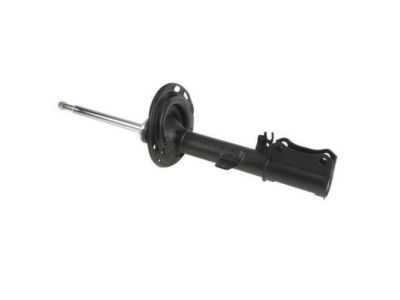

Toyota Avalon Shock Absorber, Rear Passenger Side
Part Number: 48530-80825
$460.91 MSRP: $675.47
You Save: $214.56 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Strut; Absorber Assembly, Shock, Rear Passenger Side
- Manufacturer Note: MARK 48530-41010
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota Avalon | Hybrid Limited, Hybrid XLE, Hybrid XSE, Hybrid XSE Nightshade, Touring, TRD | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Shock Absorber, Rear Driver Side
Part Number: 48540-29375
$448.43 MSRP: $657.17
You Save: $208.74 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Shock Absorber, Rear; Absorber Assembly, Shock, Rear Driver Side
- Manufacturer Note: MARK 48540-41010
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota Avalon | Touring | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-80012
$149.57 MSRP: $211.73
You Save: $62.16 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock; Rear Left Suspension Strut; Strut Assembly Kit; Complete Strut; Shock Absorber; Absorber Assembly, Shock, Rear Driver Side
- Manufacturer Note: MARK 48540-07140
- Position: Rear Driver Side
- Replaces: 48540-09820
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2012 Toyota Avalon | Base, Limited, XL, XLS | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-39525
$182.66 MSRP: $260.79
You Save: $78.13 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Rear Left-Hand; Shock Absorber
- Position: Rear Driver Side
- Replaces: 48540-09070, 48540-06011, 48540-06010, 48540-39155, 48540-32230, 48540-06020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1996 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Strut, Front Passenger Side
Part Number: 48510-8Z302
$134.88 MSRP: $190.93
You Save: $56.05 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock; Suspension Strut, Front Right; Shock Absorber; Absorber Assembly, Shock, Front Passenger Side
- Manufacturer Note: MARK 48510-07150
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota Avalon | Touring | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Strut, Rear Passenger Side
Part Number: 48530-09899
$149.45 MSRP: $211.56
You Save: $62.11 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Suspension Strut, Rear Right; Shock Absorber; Absorber Assembly, Shock, Rear Passenger Side
- Manufacturer Note: MARK 48530-07180
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota Avalon | Hybrid Limited, Hybrid XLE Plus, Hybrid XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Avalon Strut, Rear Passenger Side
Part Number: 48530-80126
$162.26 MSRP: $229.69
You Save: $67.43 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Rear Right-Hand; Shock Absorber
- Position: Rear Passenger Side
- Replaces: 48530-09080, 48530-06010, 48530-33030, 48530-06011, 48530-39245, 48530-06020, 48530-39205, 48530-32230
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1996 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-09D60
$150.04 MSRP: $212.40
You Save: $62.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Suspension Strut, Rear Left; Shock Absorber; Absorber Assembly, Shock, Rear Driver Side
- Manufacturer Note: MARK 48540-07180
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota Avalon | Limited, XLE, XLE Plus, XLE Premium | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-80013
$147.57 MSRP: $208.90
You Save: $61.33 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock; Rear Left Suspension Strut; Strut Assembly Kit; Complete Strut; Shock Absorber; Absorber Assembly, Shock, Rear Driver Side
- Manufacturer Note: MARK 48540-07150,SPORTS PACKAGE
- Position: Rear Driver Side
- Replaces: 48540-09830
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2010 Toyota Avalon | Touring, XL | 6 Cyl 3.5 L GAS
View related parts
Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-09D80
$150.04 MSRP: $212.40
You Save: $62.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Suspension Strut, Rear Left; Shock Absorber; Absorber Assembly, Shock, Rear Driver Side
- Manufacturer Note: MARK 48540-07200
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota Avalon | Hybrid Limited, Hybrid XLE Plus, Hybrid XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Avalon Strut, Rear Passenger Side
Part Number: 48530-A9030
$142.52 MSRP: $201.74
You Save: $59.22 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Suspension Strut Assembly Kit; Complete Strut Kit; Complete Strut; Shock Absorber; Absorber Assembly, Shock, Rear Passenger Side
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-A9030
$142.52 MSRP: $201.74
You Save: $59.22 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Suspension Strut Assembly Kit; Complete Strut Kit; Complete Strut; Shock Absorber; Absorber Assembly, Shock, Rear Driver Side
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts
Toyota Avalon Strut, Rear Driver Side
Part Number: 48540-09D70
$150.04 MSRP: $212.40
You Save: $62.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock; Suspension Strut, Rear Left; Shock Absorber; Absorber Assembly, Shock, Rear Driver Side
- Manufacturer Note: MARK 48540-07190
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota Avalon | Touring | 6 Cyl 3.5 L GAS

| Page 1 of 3 |Next >

1-20 of 46 Results

Toyota Avalon Shock Absorber

Choose genuine Shock Absorber that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Shock Absorber for your Toyota Avalon? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Avalon parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Shock Absorber in Toyota Avalon acquires the main function of offering roads stability and comfort by reducing shock-vibration frequencies. This mechanical device translates post impact kinetic energy into heat, in order to reduce the effects of rugged country. Shock absorbers function in interaction with springs to inhibit excessive movement of the suspension, which is done hydraulically using a piston. Through the years, several styles of shock absorbers have been used on the Avalon, including twin tube and mono tube styles. Twin-tube shocks are standard and can be made of gas for increased resilience, while mono-tube benefits from better heat exchange and is suitable for four way mounting. Other new age technologies like Position Sensitive Damping systems or magnetorheological dampers compliment the suspension system and helps to make tune with the road conditions to provide optimum damping comfort and control. They note that maintenance and inspection of the shock absorber should be done frequently so that the vehicle's safety and optimal performance can be guaranteed.

Toyota Avalon Shock Absorber Parts and Q&A

Strut, Rear Passenger Side
48530-80530
Q: How to install the rear shock absorber with coil spring on Toyota Avalon?
A:
After setting the 3 upper-side nuts in position temporarily you should torque them in sequence from 1 to 3 to 39 Nm (400 kgf-cm, 29 ft-lbf). The installation requires bolt and nut attachment to the shock absorber with coil spring before tightening to 180 Nm (1,836 kgf-cm, 133 ft-lbf) while the top shock absorber nut should achieve 55 Nm (561 kgf-cm, 41 ft-lbf) if the shock absorber remains non-disassembled. Finally, attach the rear suspension support No. 1 cover LH. Complete the flexible hose installation by fastening it with the skid control sensor wire through two bolts where Bolt A should receive torque of 19 Nm (195 kgf-cm, 14 ft-lbf) and Bolt B requires 5.5 Nm (56 kgf-cm, 49 in-lbf). Secure the rear stabilizer link assembly LH to the shock absorber through a nut torqued to 39 Nm (400 kgf-cm, 29 ft-lbf) but only if the ball joint turns with the stud place a 5 mm hexagon wrench on the stud during nut torquing. Fasten the rear wheel before securing it to 103 Nm (1,050 kgf-cm, 76 ft-lbf) torque. You should conduct final inspections of rear wheel alignment and perform necessary adjustments.
Strut, Rear Driver Side
48540-80013
Q: How to remove and replace the rear shock absorber with coil spring on Toyota Avalon?
A:
The replacement of a rear shock absorber with coil spring requires first removing the rear seat cushion assembly then detaching the rear seat headrest plate cover LH and rear seat headrest assembly before finally removing the rear seatback assembly. To start the process begin by taking off the rear wheel while using a jack to securely support the rear axle carrier. When working on the rear stabilizer link assembly LH it is necessary to separate the components by first removing the nut then disconnecting the stabilizer link from the shock absorber while using a hexagon wrench (5 mm) to maintain the stud when the ball joint moves with the nut removal. The shock absorber receives two bolts removal for flexible hose detachment which allows separation of the flexible hose and skid control sensor wire. Keep the 2 shock absorber lower nuts slightly loose without taking out the 2 bolts and 2 nuts. You should remove the rear suspension support No. 1 cover LH but keep the LH support suspension center nut loose instead of removing it because shock absorber disassembly is not necessary. The shock absorber removal process requires first lowering the rear axle carrier by removing its 3 nuts followed by taking out the shock absorber with coil spring by removing its 2 nuts and 2 bolts on the lower side.
