How to replace the seat heater while protecting the seat cover on Toyota 4Runner?

A replacement of the seat heating system should be performed while preserving the seat material from scratching and dirt accumulation and cutting damage. First start by turning the seat cover to its outer side while removing the seat wires. Before removing the heater perform two separate tasks by cutting ten tack pins used on the seat cushion cover and nine tack pins installed on the seatback cover. When installing the seat cushion seat heater, position it with the marked side (mark: Toyota) facing the seat cushion pad, aligning the end of the fin with the fold line of the listing pocket for Part A, and aligning the V-slit of the seat heater with the centerline of the seat cushion cover for Part B. Use a tacker (Banzai 303XT or equivalent) to attach tack pins to the seat heater, ensuring not to substitute other metal parts for tack pins, as insufficient distance between the heater and cover may cause damage. Sew thread three times from the pin side using individual stitches to reach the folded area. The intervals between these stitches should be spaced at 6 - 7 mm (0.24 - 0.28 in.) while using tack pins as indicated on the materials. When installment the seat heater for the seatback repeat identical procedures while verifying the marked Toyota side points toward the seat cushion pad and securing pins using the tacker tool according to established directions. Install the seat wires by passing them over the seat heater then put the seat cover back into its original form.

OEM Toyota 4Runner Seat Heater

Seat Warmer

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Seat Heaters found

View related parts

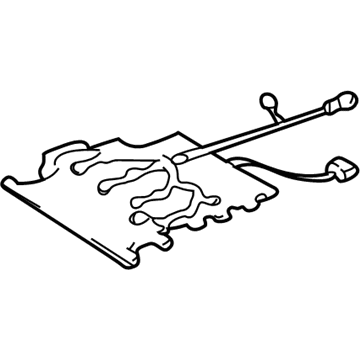

Toyota 4Runner Element
Part Number: 87510-60380
$411.59 MSRP: $603.18
You Save: $191.59 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater
- Replaces: 87510-60270
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2004 Toyota 4Runner | Limited | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts

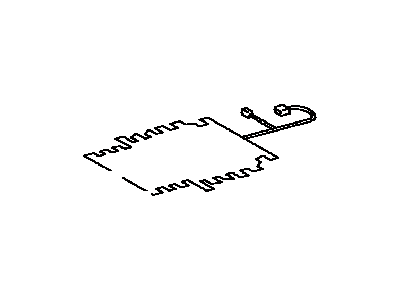

Toyota 4Runner Element
Part Number: 87510-60370
$557.63 MSRP: $817.20
You Save: $259.57 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2004 Toyota 4Runner | Limited | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts

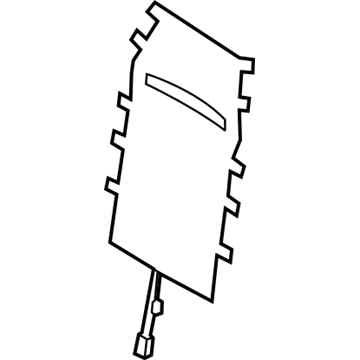

Toyota 4Runner Seat Back Heater, Upper Front
Part Number: 87510-60560
$303.35 MSRP: $433.12
You Save: $129.77 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater Pad, Front Left Upper, Front Right Upper; Element; Heater Assembly, Front Seat Back, Passenger Side; Heater Assembly, Front Seat Back, Driver Side; Seat Heater
- Position: Upper Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2023 Toyota 4Runner | 40th Anniversary Edition, Limited, Nightshade, SR5, SR5 Premium, Trail, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Venture | 4 Cyl 2.7 L GAS, 6 Cyl 4.0 L GAS
View related parts

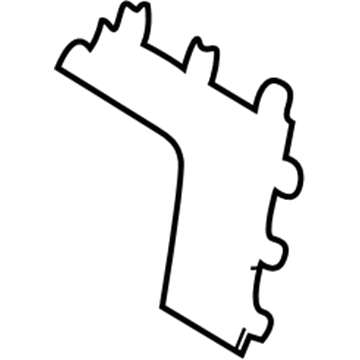

Toyota 4Runner Seat Cushion Heater, Front Lower
Part Number: 87510-60550
$401.78 MSRP: $588.81
You Save: $187.03 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater Pad, Front Left Lower, Front Right Lower; Heater Assembly, Front Seat Cushion, Passenger Side; Driver Side; Seat Heater
- Position: Front Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2023 Toyota 4Runner | 40th Anniversary Edition, Limited, Nightshade, SR5, SR5 Premium, Trail, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Venture | 4 Cyl 2.7 L GAS, 6 Cyl 4.0 L GAS
View related parts

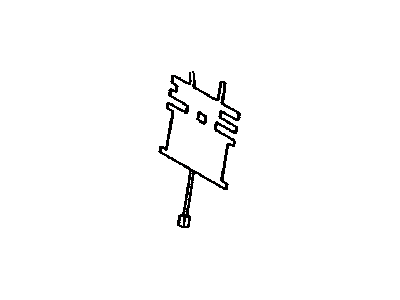

Toyota 4Runner Element
Part Number: 87510-35060
$357.28 MSRP: $523.59
You Save: $166.31 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater; Heater Assembly, Front Seat Back, Passenger Side; Heater Assembly, Front Seat Back, Driver Side
- Manufacturer Note: SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2009 Toyota 4Runner | Limited | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts

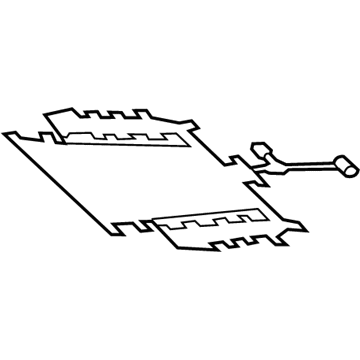

Toyota 4Runner Element
Part Number: 87510-35050
$499.98 MSRP: $732.73
You Save: $232.75 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater; Heater Assembly, Front Seat Cushion, Passenger Side; Heater Assembly, Front Seat Cushion, Driver Side
- Manufacturer Note: SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2009 Toyota 4Runner | Limited | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts

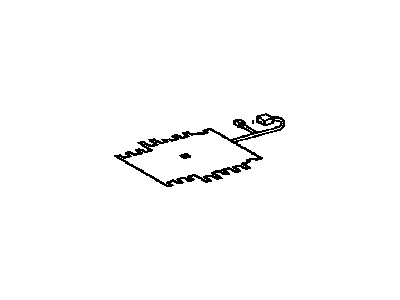

Toyota 4Runner Seat Heater, Front Upper
Part Number: 87510-35040
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater Pad, Front Upper; Element; Heater Assembly, Front Seat Cushion, Passenger Side; Heater Assembly, Front Seat Cushion, Driver Side
- Manufacturer Note: SEAT BACK
- Position: Front Upper
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2002 Toyota 4Runner | Base, Limited, SR5 | 6 Cyl 3.4 L GAS
View related parts
Toyota 4Runner Seat Heater, Front Lower
Part Number: 87510-35030
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater Pad, Front Lower; Element; Heater Assembly, Front Seat Cushion, Passenger Side; Heater Assembly, Front Seat Cushion, Driver Side
- Manufacturer Note: SEAT CUSHION
- Position: Front Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2002 Toyota 4Runner | Base, Limited, SR5 | 6 Cyl 3.4 L GAS

Toyota 4Runner Seat Heater

Choose genuine Seat Heater that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Seat Heater for your Toyota 4Runner? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota 4Runner parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

One other excellent part that is accorded to Toyota 4Runner is the seat heater that makes occupants warm especially during the cold seasons. The Seat Heater which is situated in the upholstery of the Toyota 4Runner works with the help of a heat pad and keeps the passengers warm no matter the outside environment of the car. Credited by the media as one of the most reliable and performing vehicles, Toyota 4Runner has always been included into the list of the longest-lived cars, that is why the Seat Heater is incredibly helpful for those who know the value of comfort and productivity. Appealing to all 4Runner's generations and compatible with the model, Seat Heater is evidence of Toyota striving for creative solutions benefiting its consumers. The differences in designs of the Seat Heater in the Toyota 4Runner models like the SR5, Limited, and TRD Pro prove Toyota's commitment on improving the heater's operation and optimizing the heat output on their vehicles hence promoting the safety of the passengers as well as their comfort. Namely, the Toyota 4Runner Seat Heater will be exceptional in the automotive arena concerning the sturdiness of construction and efficiency in heating up the seat with the capacity to adapt to different;climate conditions. Besides, the integration of this feature pushes the 4Runner up a notch while, at the same time, endorsing Toyota for creating automobiles that balance good performance and passengers' comfort. Altogether, that is why the Toyota 4Runner Seat Heater, which is an important spare part, contributes to making the trip and driving experience extraordinary, which is essential for the owners of this Japanese cross-country vehicle.

Toyota 4Runner Seat Heater Parts and Q&A

Seat Heater, Front Lower
87510-35030
Q: How to replace the seat heater while protecting the seat cover on Toyota 4Runner?
A:
A replacement of the seat heating system should be performed while preserving the seat material from scratching and dirt accumulation and cutting damage. First start by turning the seat cover to its outer side while removing the seat wires. Before removing the heater perform two separate tasks by cutting ten tack pins used on the seat cushion cover and nine tack pins installed on the seatback cover. When installing the seat cushion seat heater, position it with the marked side (mark: Toyota) facing the seat cushion pad, aligning the end of the fin with the fold line of the listing pocket for Part A, and aligning the V-slit of the seat heater with the centerline of the seat cushion cover for Part B. Use a tacker (Banzai 303XT or equivalent) to attach tack pins to the seat heater, ensuring not to substitute other metal parts for tack pins, as insufficient distance between the heater and cover may cause damage. Sew thread three times from the pin side using individual stitches to reach the folded area. The intervals between these stitches should be spaced at 6 - 7 mm (0.24 - 0.28 in.) while using tack pins as indicated on the materials. When installment the seat heater for the seatback repeat identical procedures while verifying the marked Toyota side points toward the seat cushion pad and securing pins using the tacker tool according to established directions. Install the seat wires by passing them over the seat heater then put the seat cover back into its original form.
