OEM Scion xD Fuel Level Sensor

Scion xD Fuel Level Sensor Parts Questions & Experts Answers

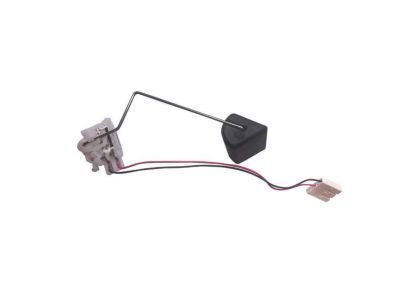

• Fuel Gauge Sending Unit
  83320-52261
  Q: How to remove the Fuel Level Sensor assembly on Scion xD?

  A: The first step to remove the 2ZR-FE fuel system fuel level sensor assembly requires you to take out the No. 1 seat leg cover then the No. 2 seat leg cover. The removal task starts by disconnecting the rear seat assembly followed by the rear floor service hole cover. Flushing fuel system pressure from the system must occur before the technician begins to detach the fuel tank main tube sub-assembly and the fuel tank vent hose. The first step involves removing the fuel pump gauge retainer then proceeding with dissembling the fuel suction with pump and gauge tube assembly. To take out the fuel level sensor assembly users must first disconnect the fuel level sensor connector then push the fuel level sensor upward until the lock releases without splitting the indicated tube.
